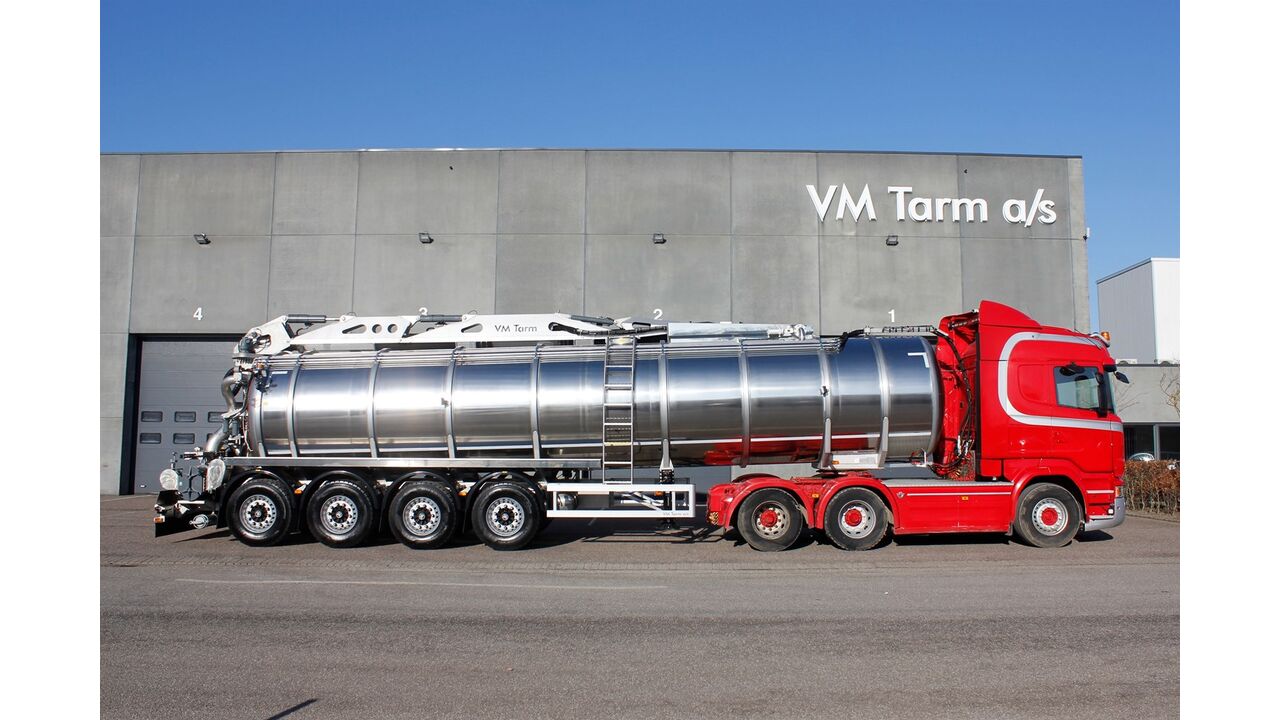

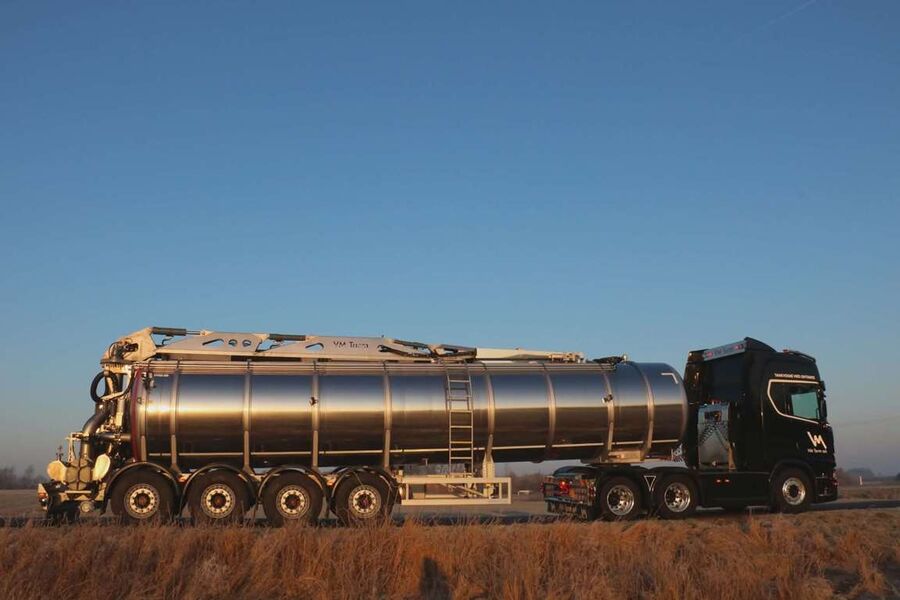

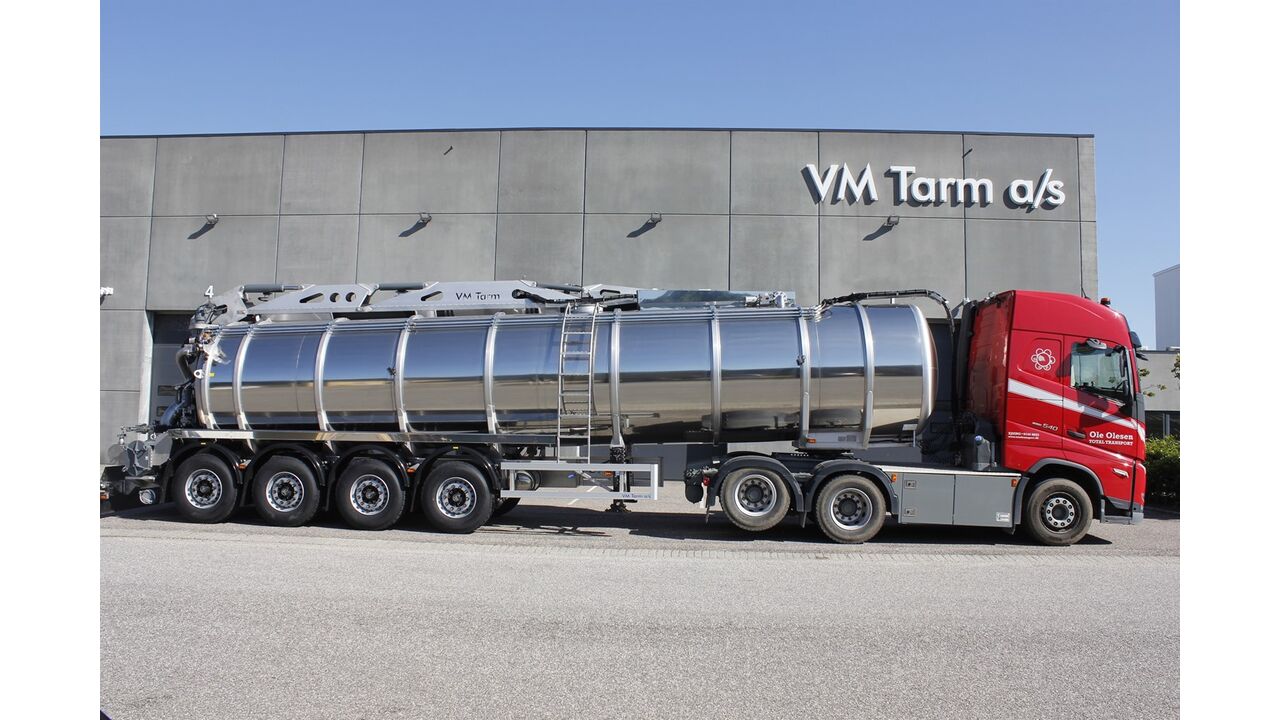

VM Tarm gylletank under åben himmel



StarLine - concept liquid manure trailer focusing on function and quality

StarLine is VM Tarm's standardised liquid manure trailer for customers who want quick delivery and a competitive price without compromising on quality. The concept is thoroughly tested, sold on a first come first served basis, and can be retrofitted with additional equipment. An operationally reliable solution ready for use with a short delivery time.

VM Tarm gylletank under åben himmel

What is a VM Tarm Starline liquid manure trailer?

​With a simple and straightforward purchasing process

StarLine is VM Tarm's standardized and pre-configured liquid manure trailer for professional transport of liquid manure and degassed biomass.

The most in-demand features are collected in a fixed and well-equipped configuration with a few defined options. This provides a simple ordering process, short delivery time, and an attractive price compared to a fully customized solution.

StarLine liquid manure trailer is sold on a first come, first served basis, and additional equipment can be retrofitted.

A simple and straightforward purchasing process, with short delivery.

The quantity is limited – order in good time.

With a StarLine liquid manure trailer you get:

  • A pre-configured and well-equipped liquid manure trailer
  • Known VM Tarm quality with a focus on function and operational reliability
  • Short delivery time
  • An attractive price
  • First come, first served principle
  • Payment only upon collection
  • Possibility for retrofitting additional equipment

StarLine liquid manure tank is especially developed for agricultural service providers, transport companies, professional farms, and the transport of biomass with a large and recurring transportation need.

A StarLine liquid manure trailer is particularly relevant when fast loading, high transport capacity, and efficient utilization of drivers and equipment are of great importance for daily operations.



Contact us to learn more

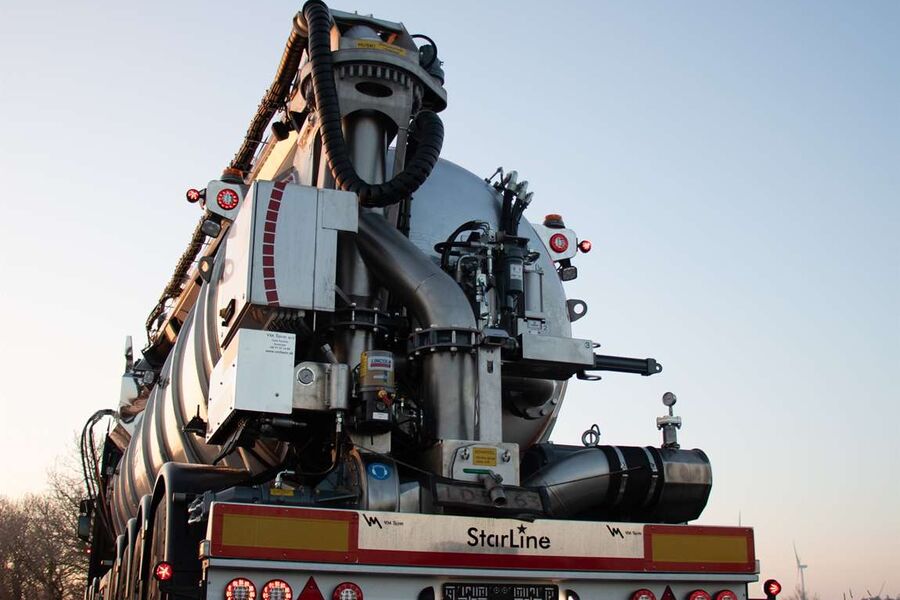

Gylletank closeup bagfra

Thoughtful Tank Construction

The tank is constructed from stainless steel (EN 1.4307) and designed as a single-compartment tank with a dome-shaped baffle located in the middle of the tank. This ensures stable driving and reduces liquid movements during transport.

The tank is self-supporting and mounted at the front on a console with a 2” king bolt and at the rear on a 4-axle bogie. The front and rear ends are designed with clamped end caps and a polished finish.

Efficient Pump and Crane System

  • Centrifugal pump
  • Capacity of up to about 16,000 litres/min.
  • Rotary pump (Börger EL 1550)
  • Capacity of up to about 9,000 litres/min.
  • Automatic switching between pumps via hydraulic spool valves
  • Auto-emptying of crane
  • External filling and emptying via 6” connection
  • The pump base also functions as a stone trap and is equipped with drainage, sampling points, and level control.

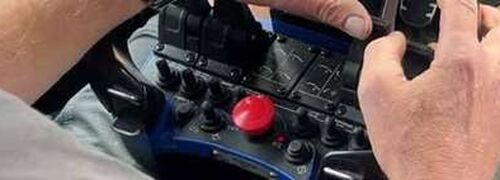

fortschrittliche-steuerung styring af gylletank

Advanced control

Controlled via PLC control unit and radio control (Scanreco) with display and proportional control. This provides precise operation and high comfort for the driver. Central lubrication (Lincoln) is mounted on the crane, pumps, and axles for minimal maintenance.

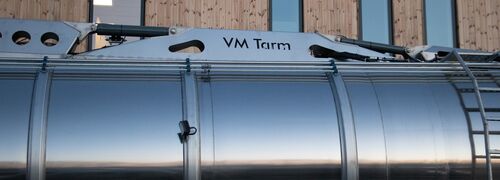

VM Tarm tank

Tank

The tank is self-supporting and mounted at the front on a console with a 2" king bolt and at the rear on a 4-axle bogie. The front and rear ends are executed with clamped end plates and polished finish.

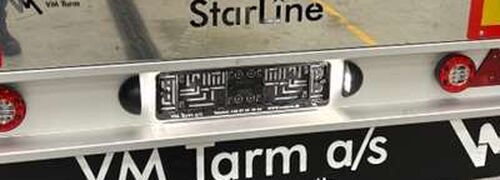

starlinebag - sikkerhed og udstyr

Safety, lighting and equipment

Complete LED light package, work lamps, rotor flashers and camera setup for increased safety. In addition, the trailer is equipped with cyclist protection, underrun protection, toolbox, and well-thought-out connections for air, electricity, and hydraulics.

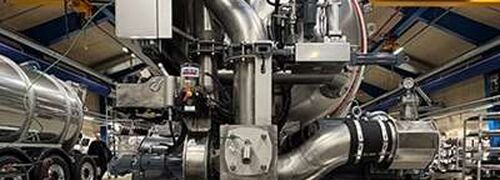

starlinebag-pumpe

Pump

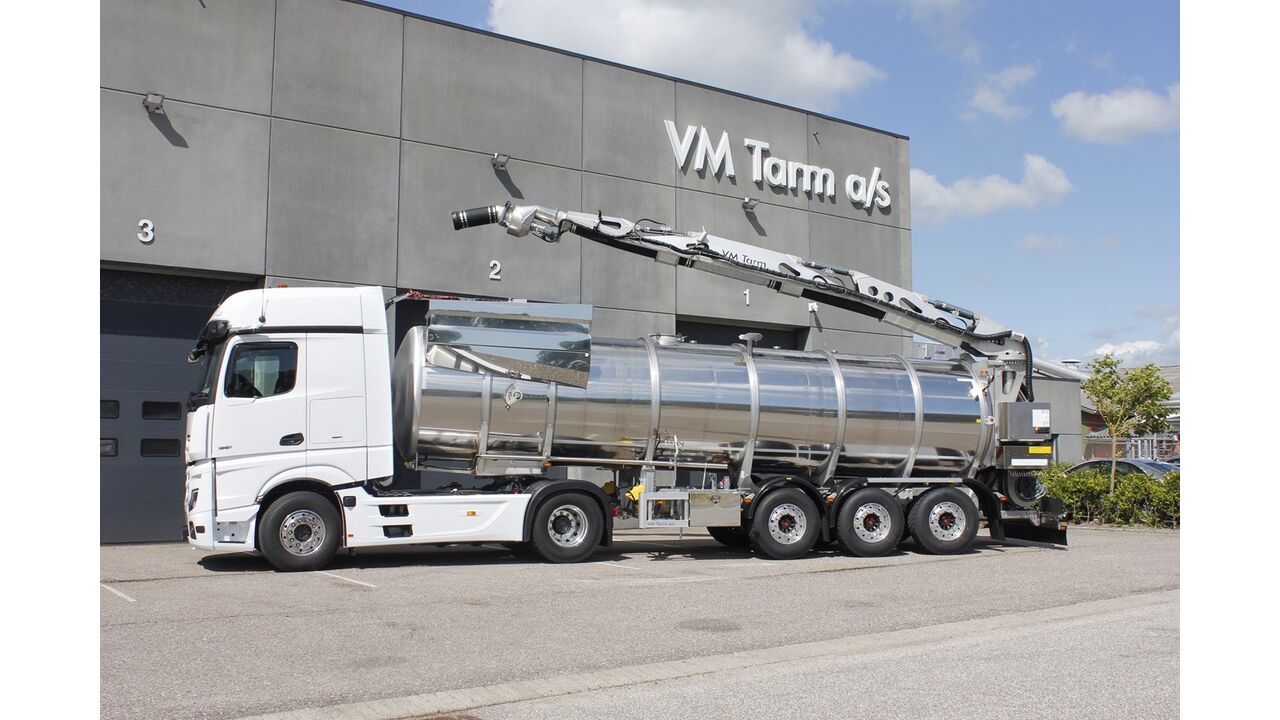

Powerful 10" stainless steel crane installation with three hydraulic joints and a large reach. Fitted with both centrifugal pump and rotary pump, providing maximum flexibility for both filling and emptying.

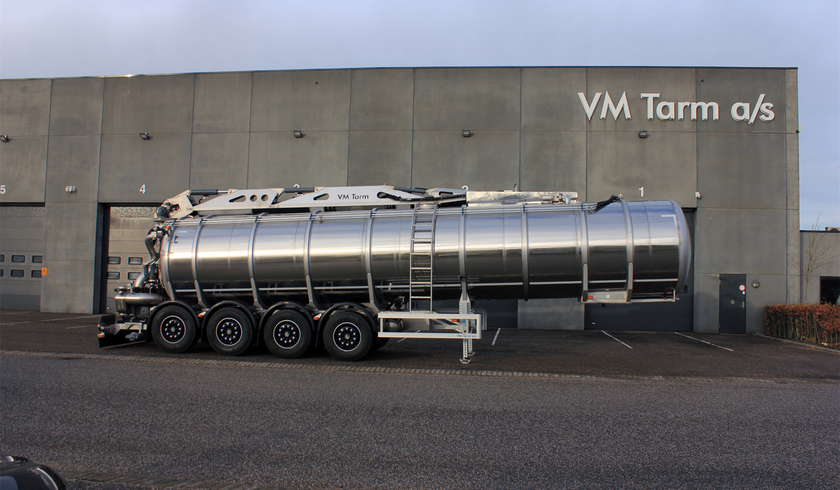

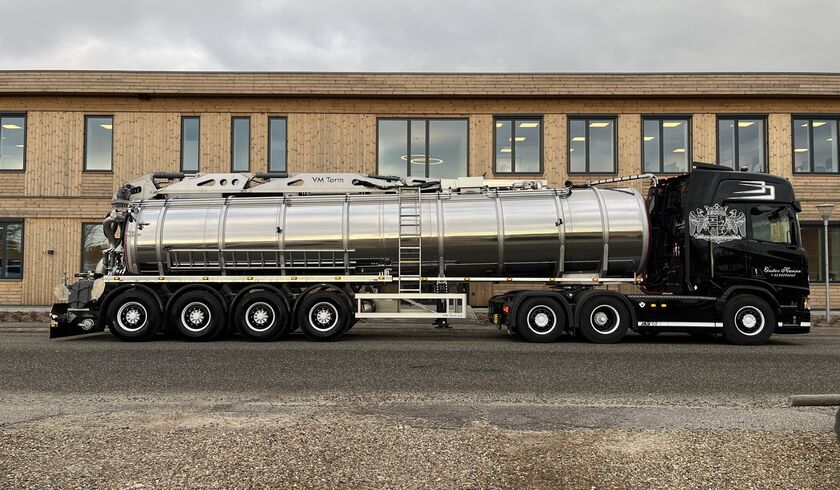

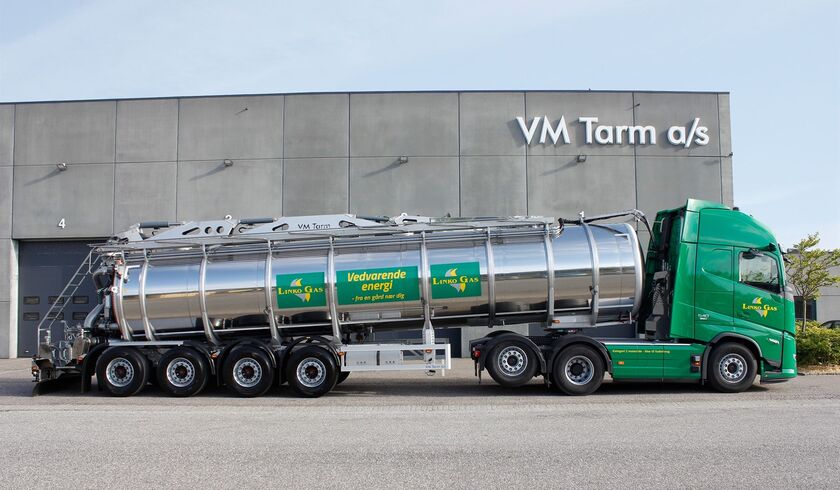

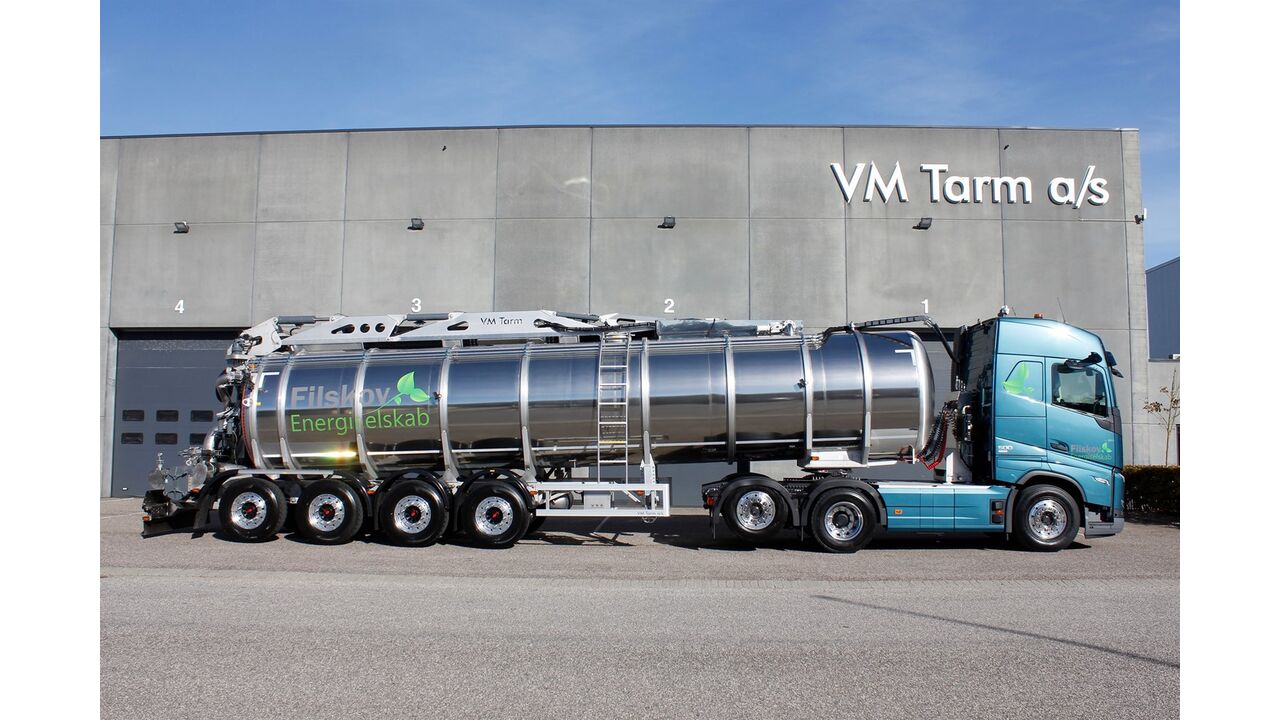

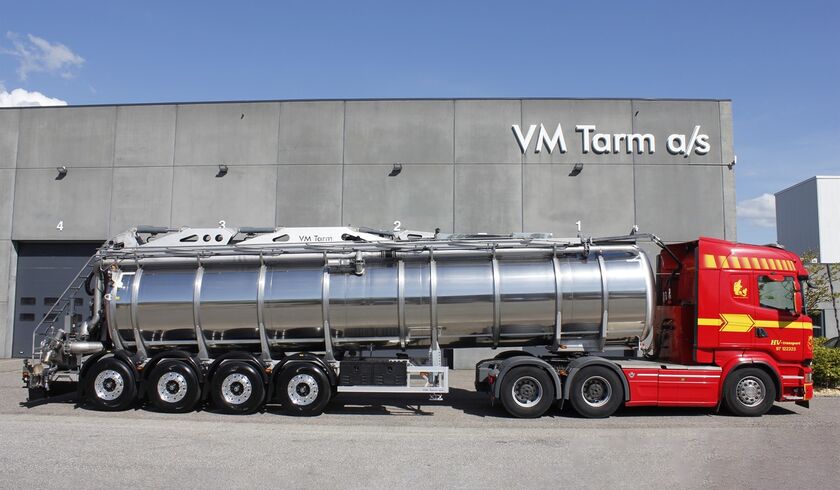

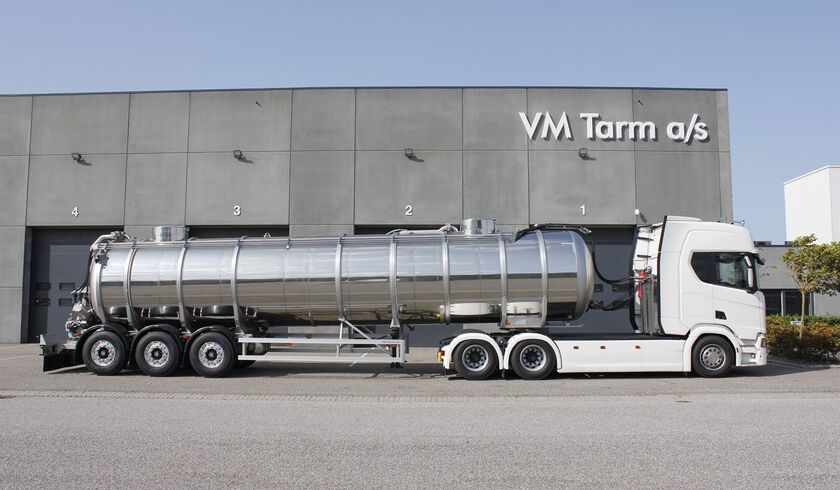

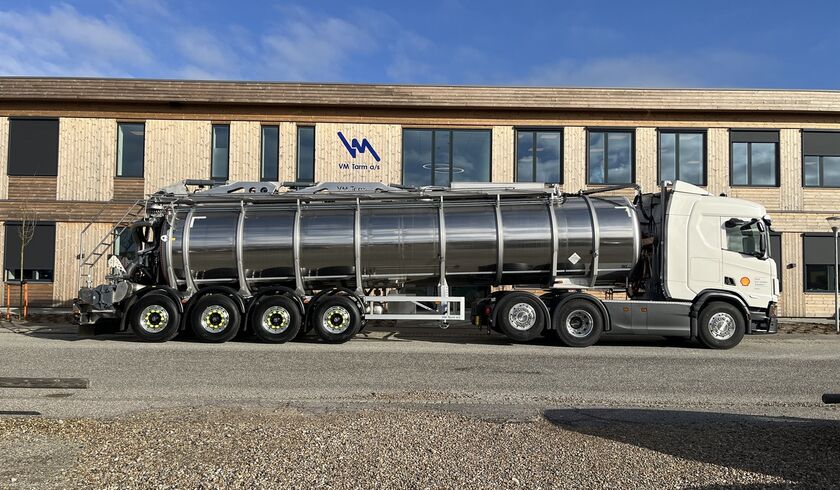

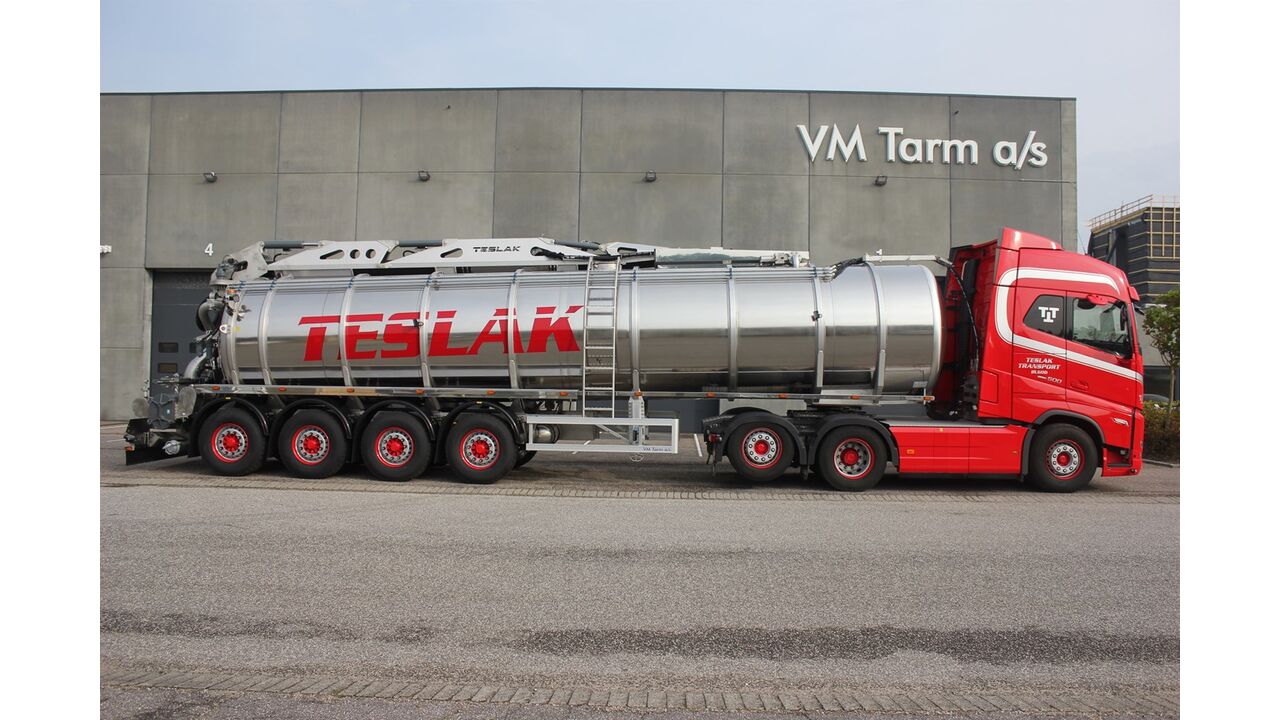

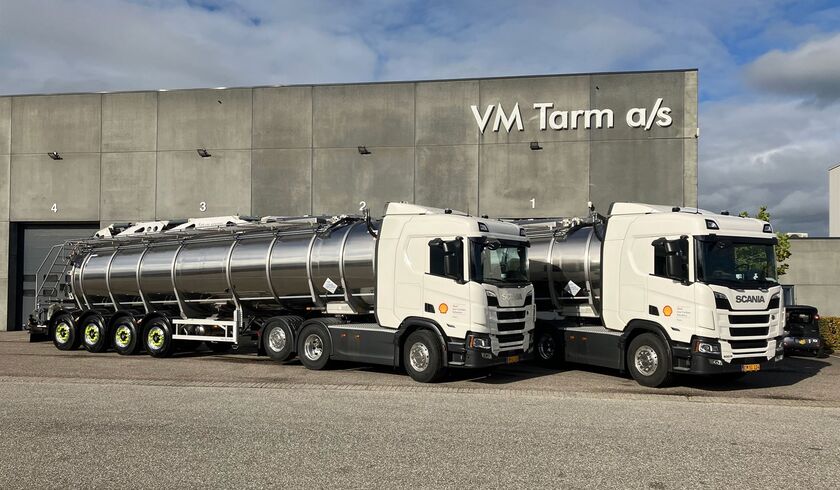

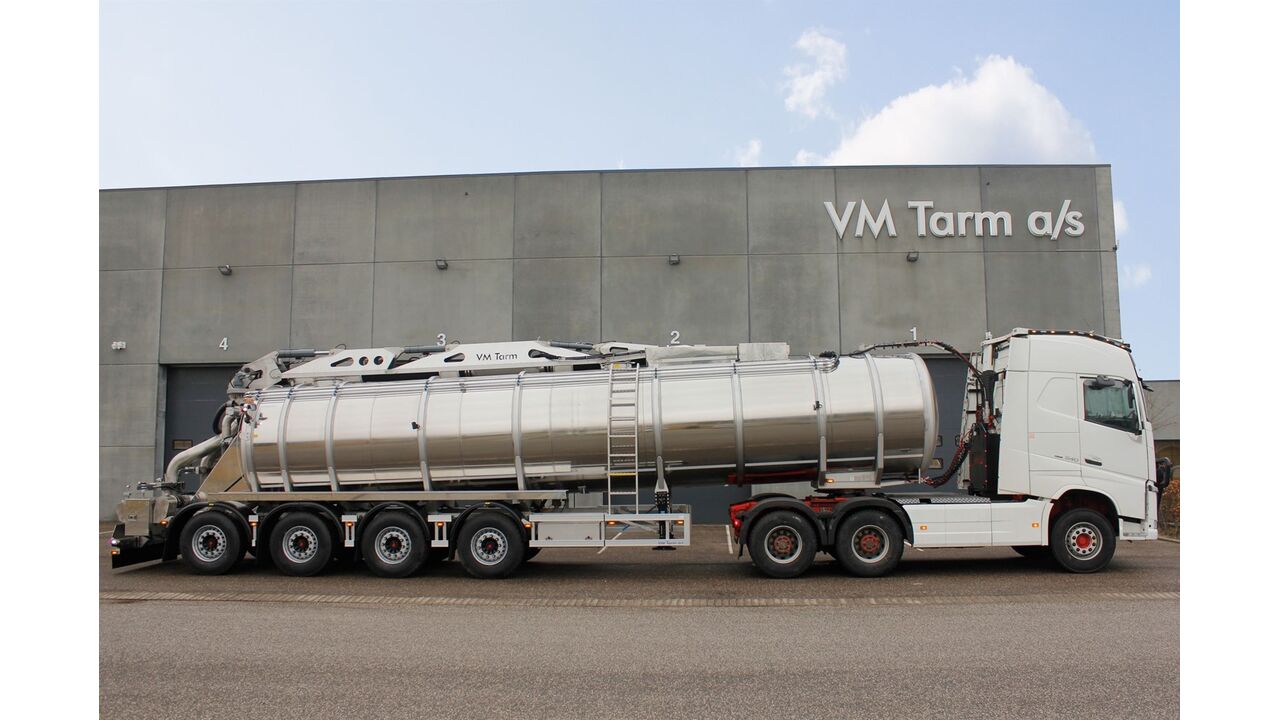

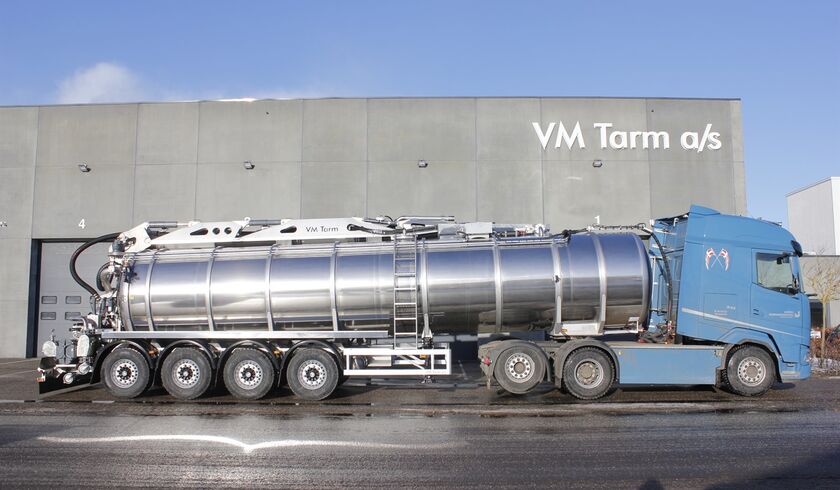

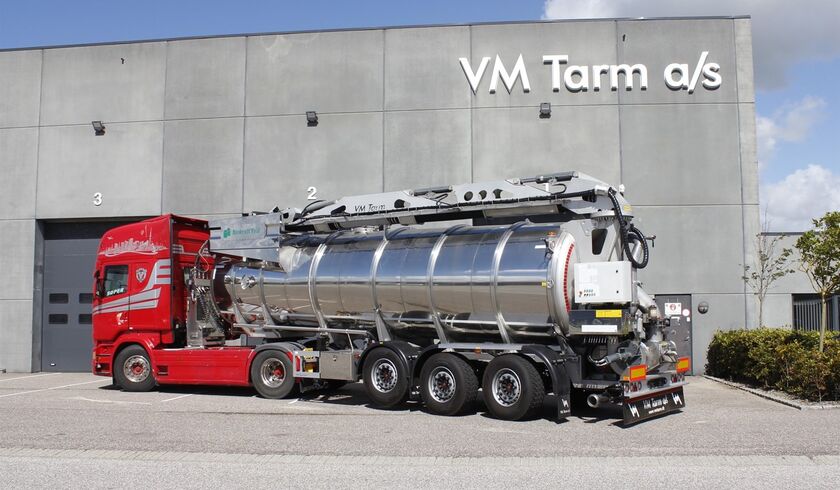

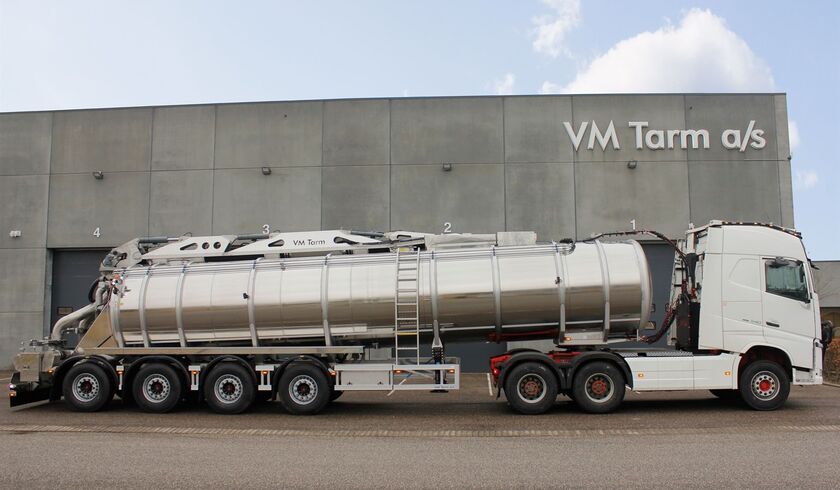

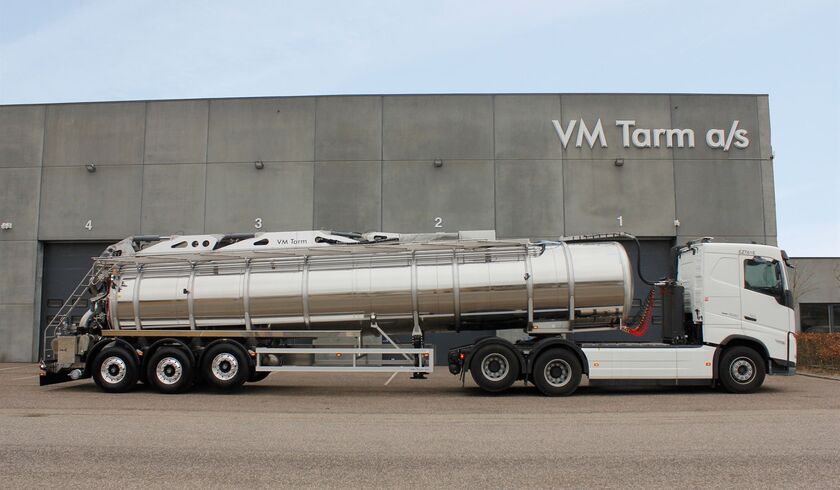

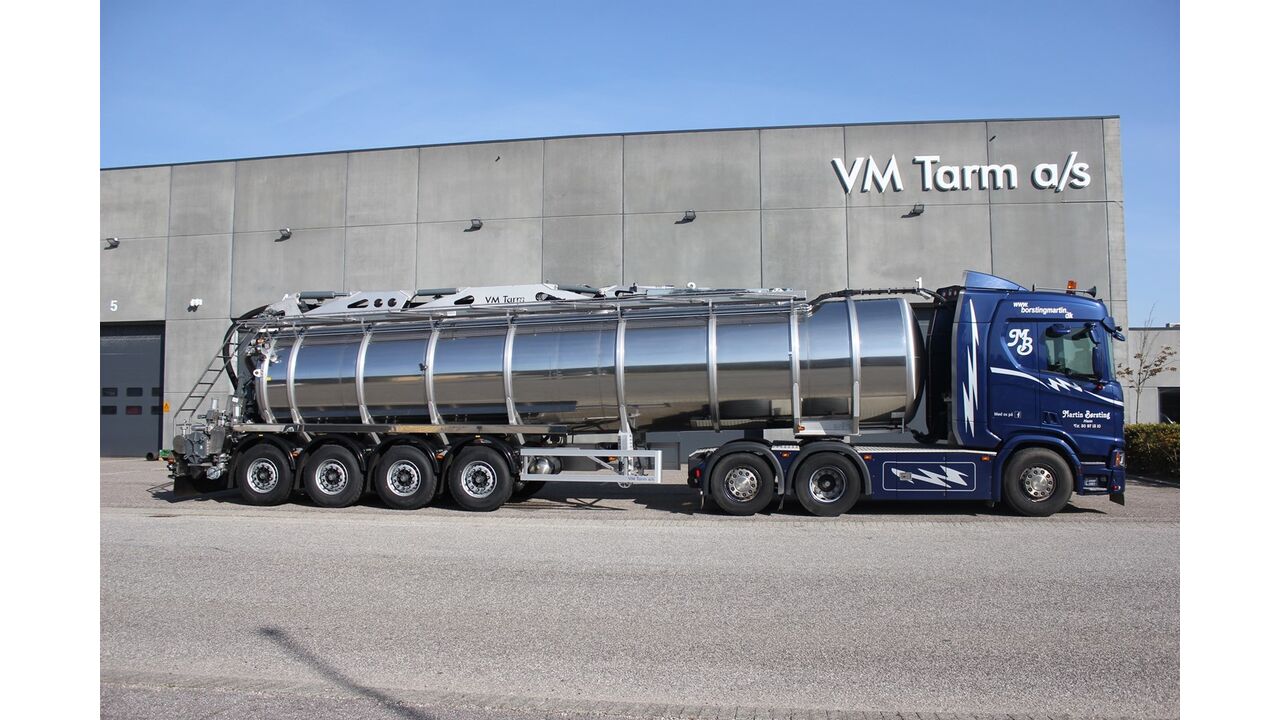

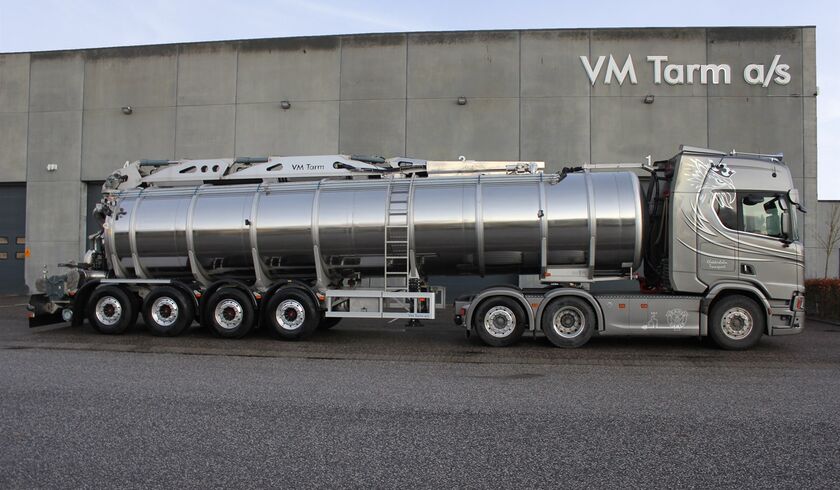

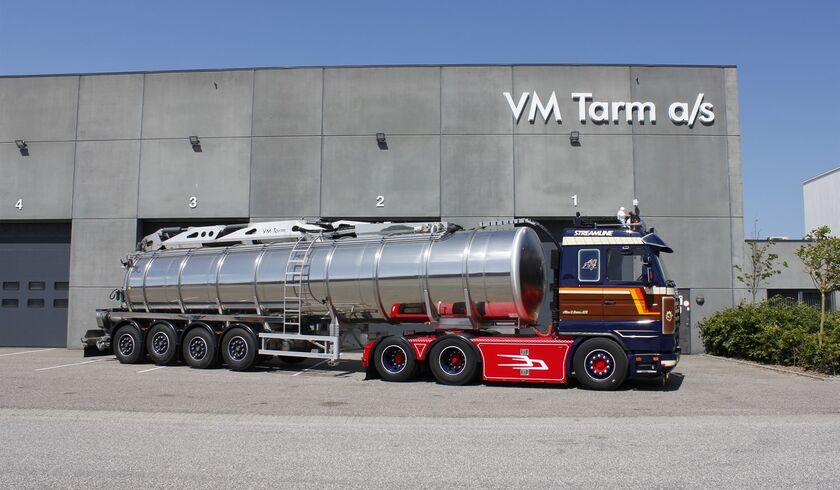

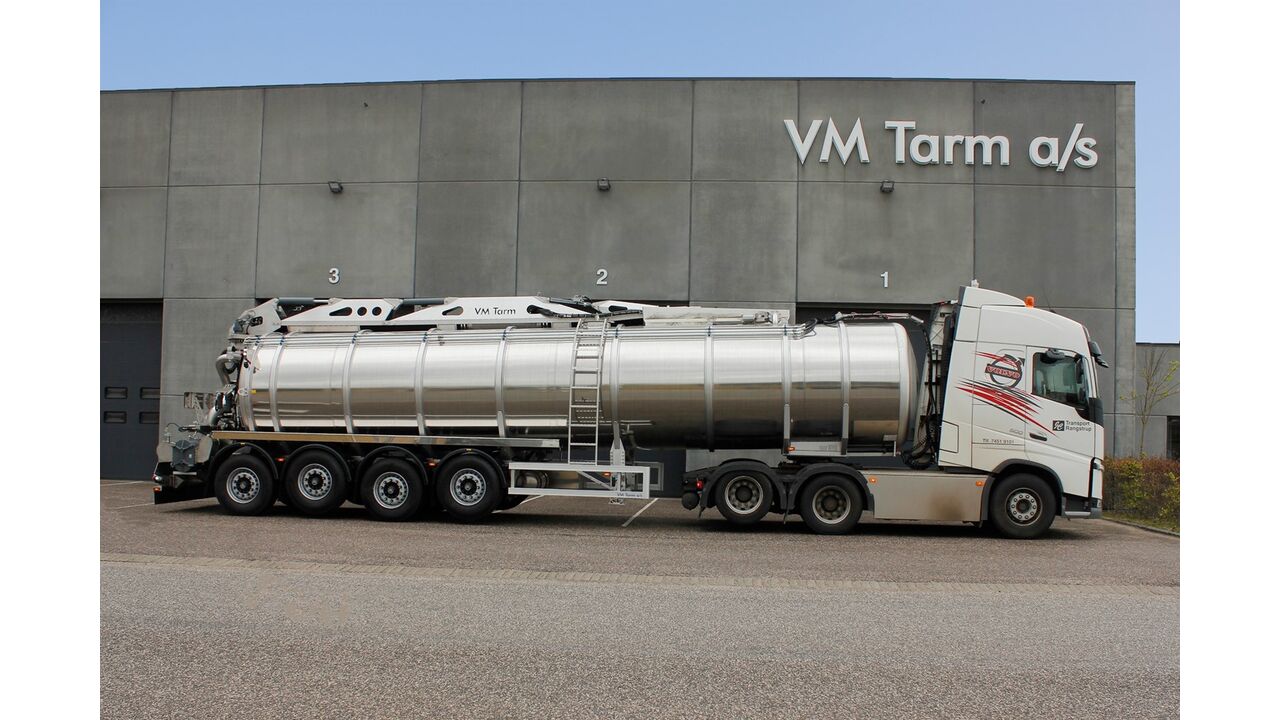

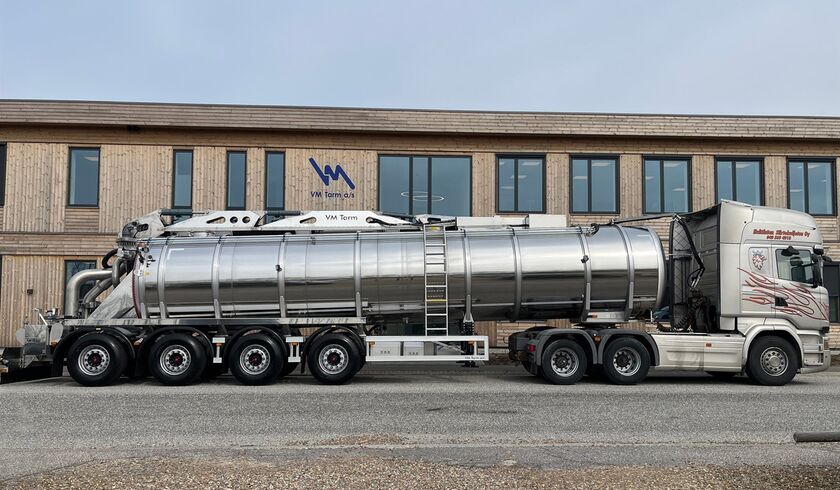

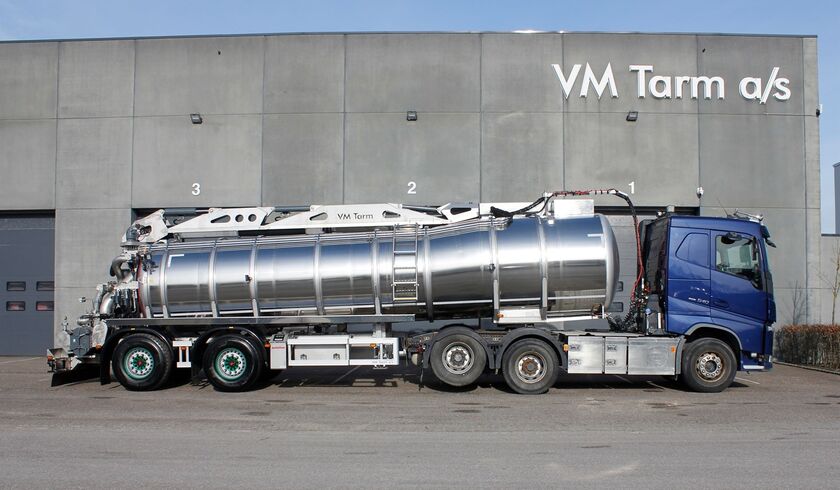

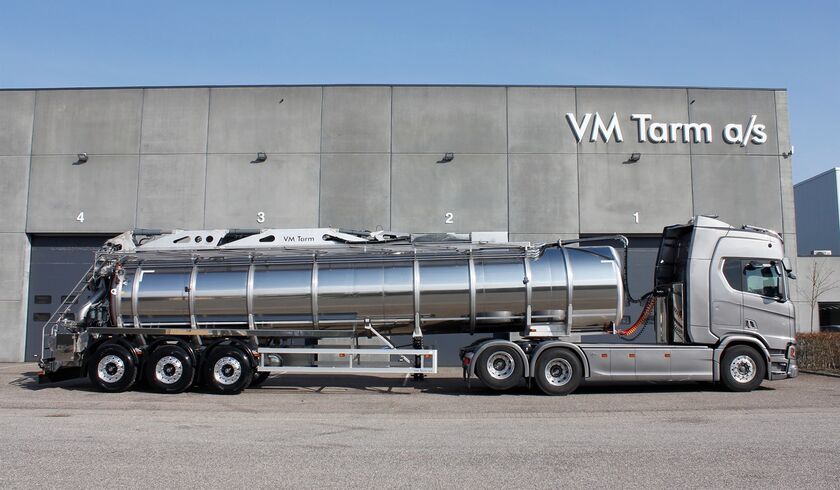

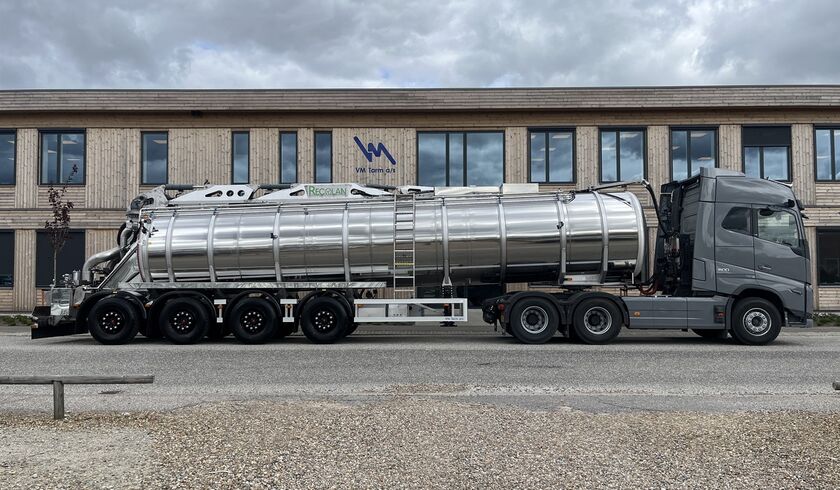

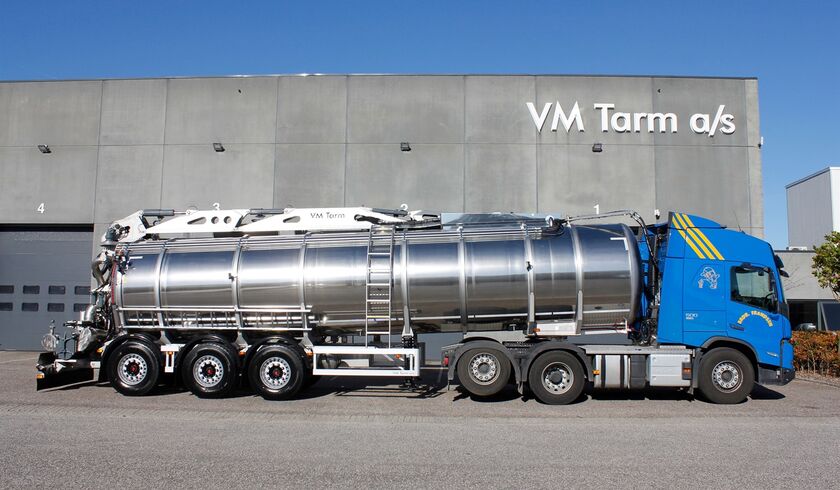

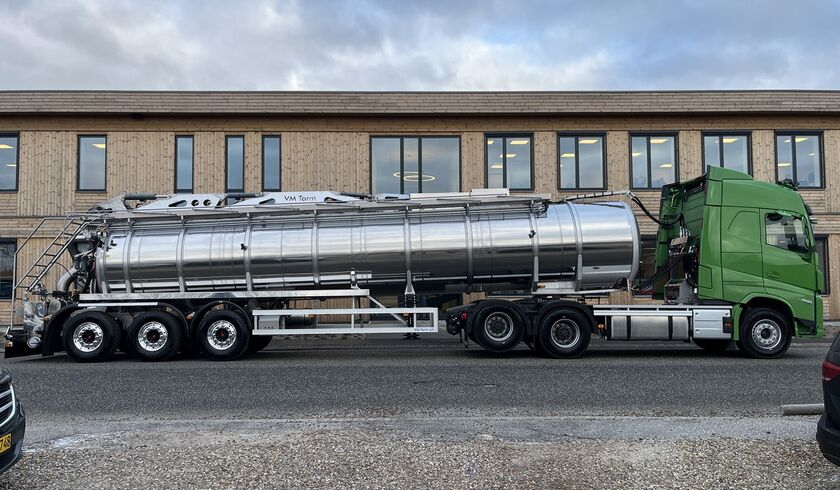

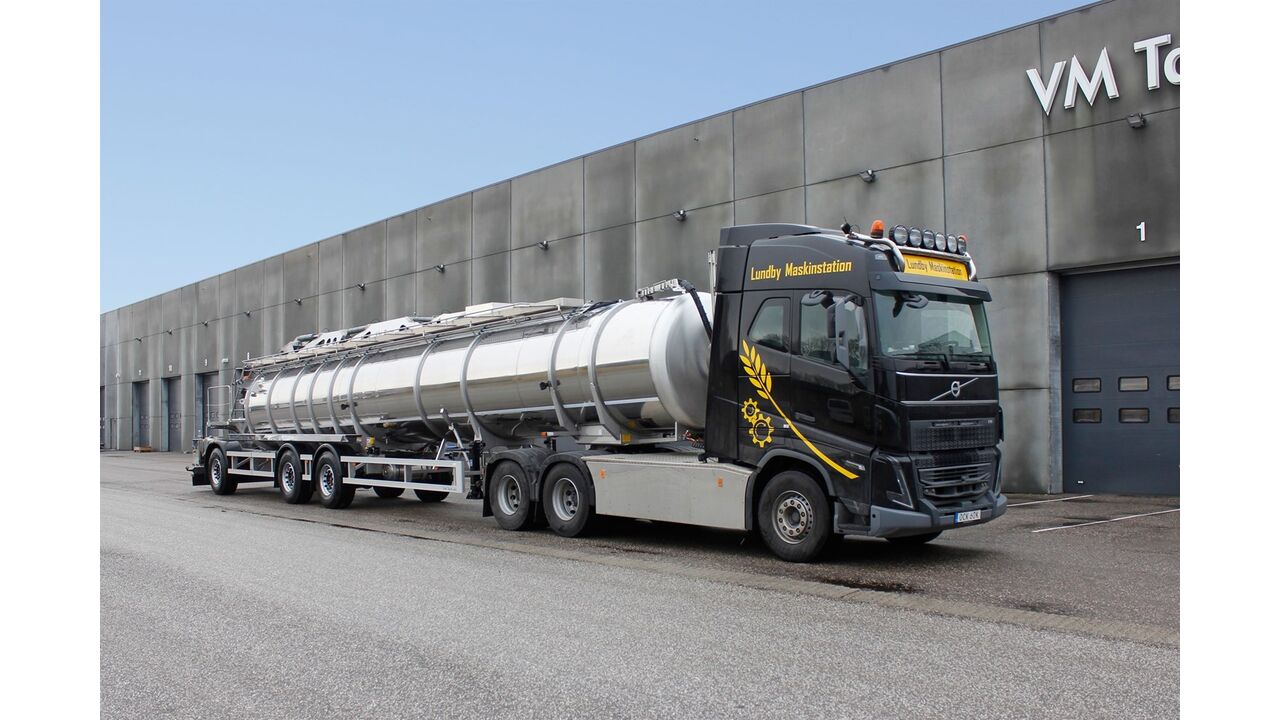

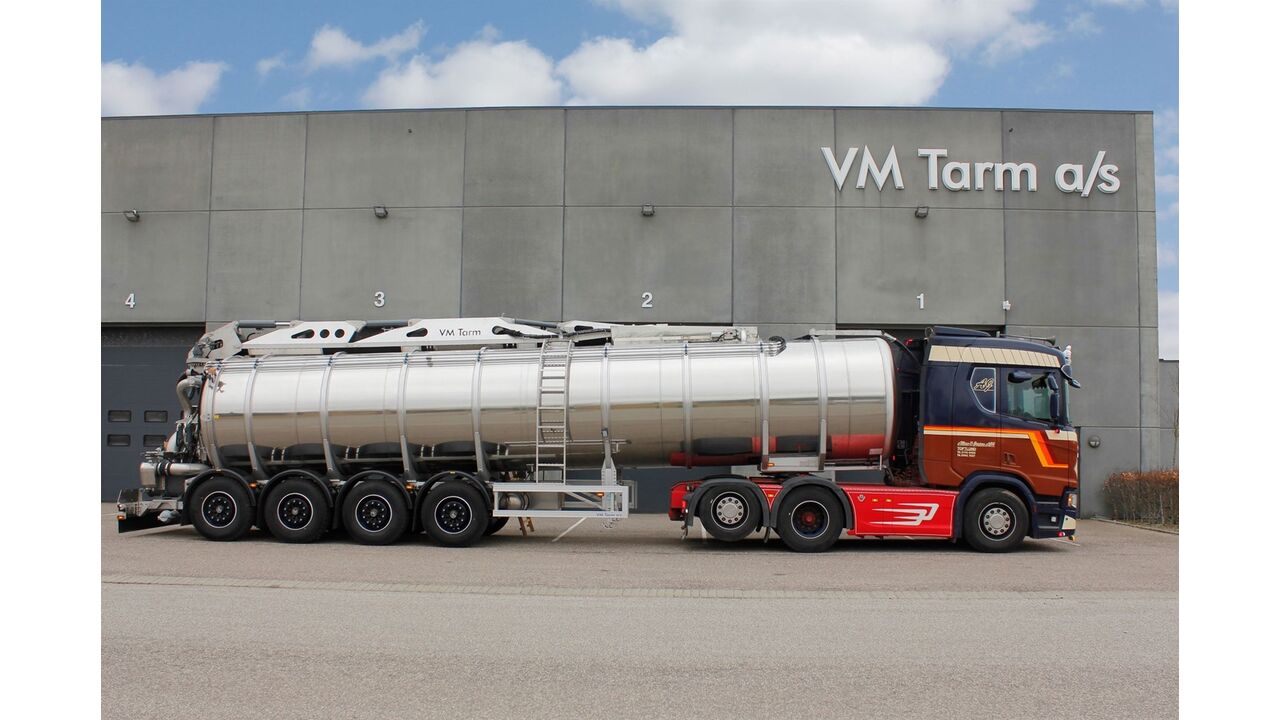

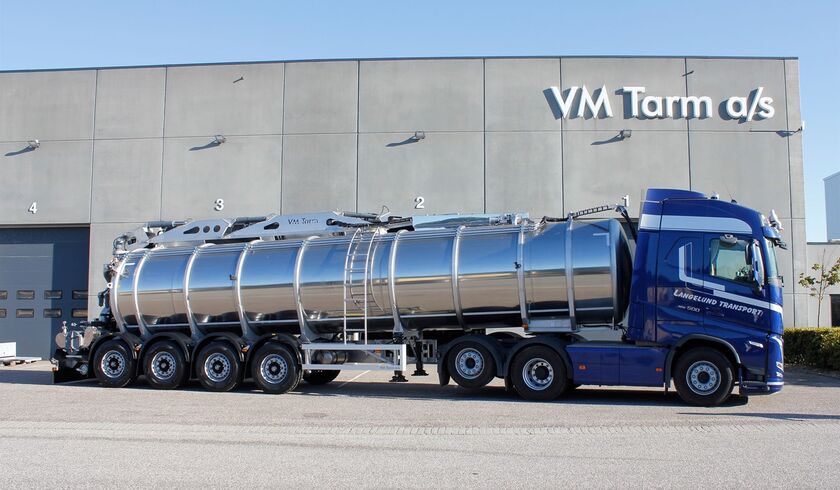

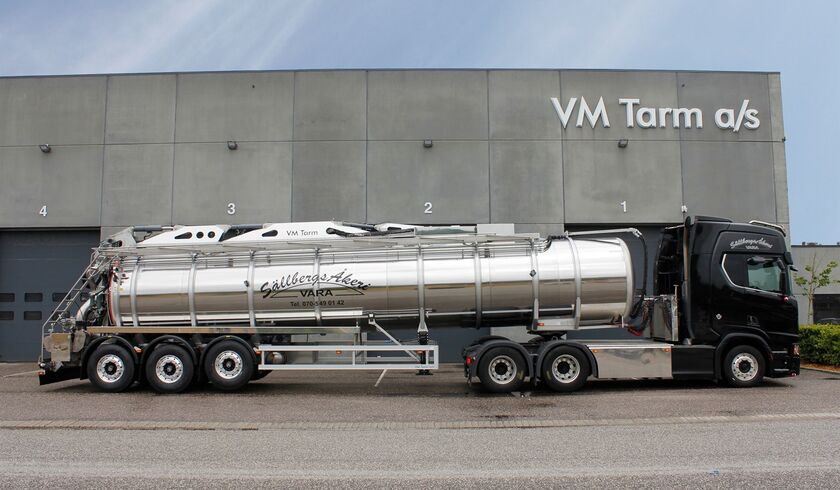

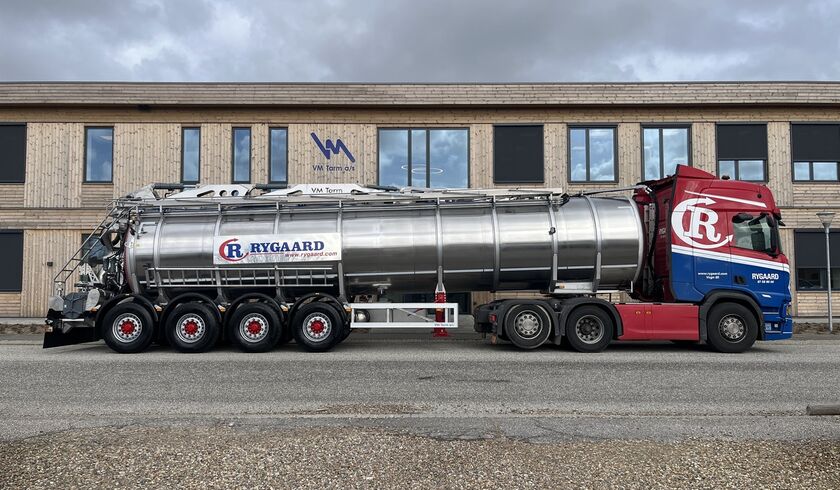

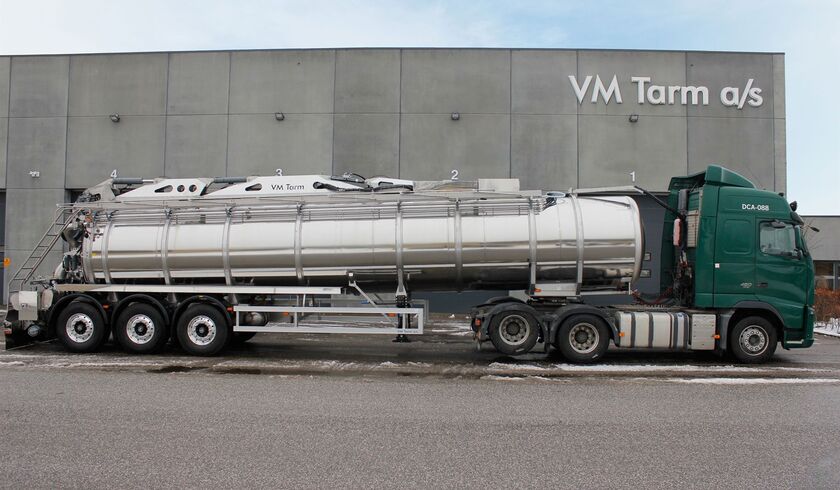

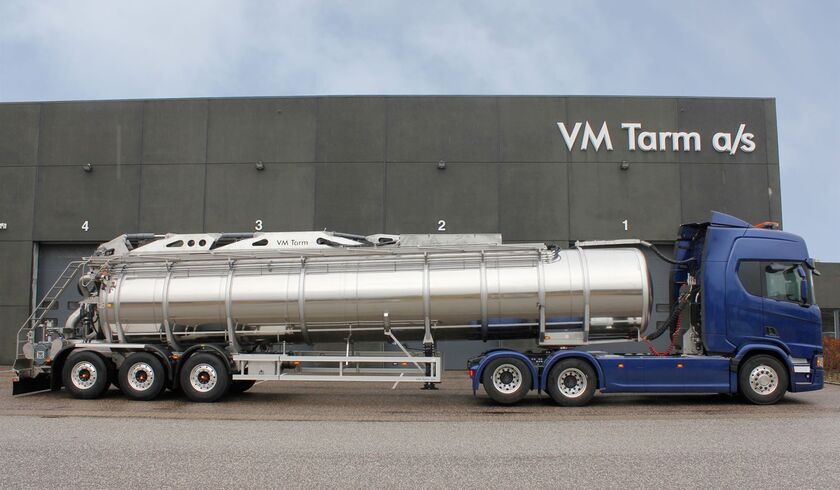

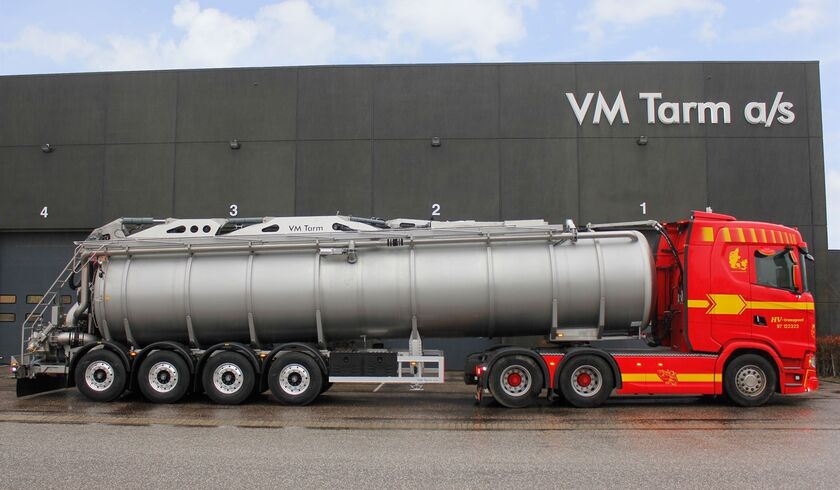

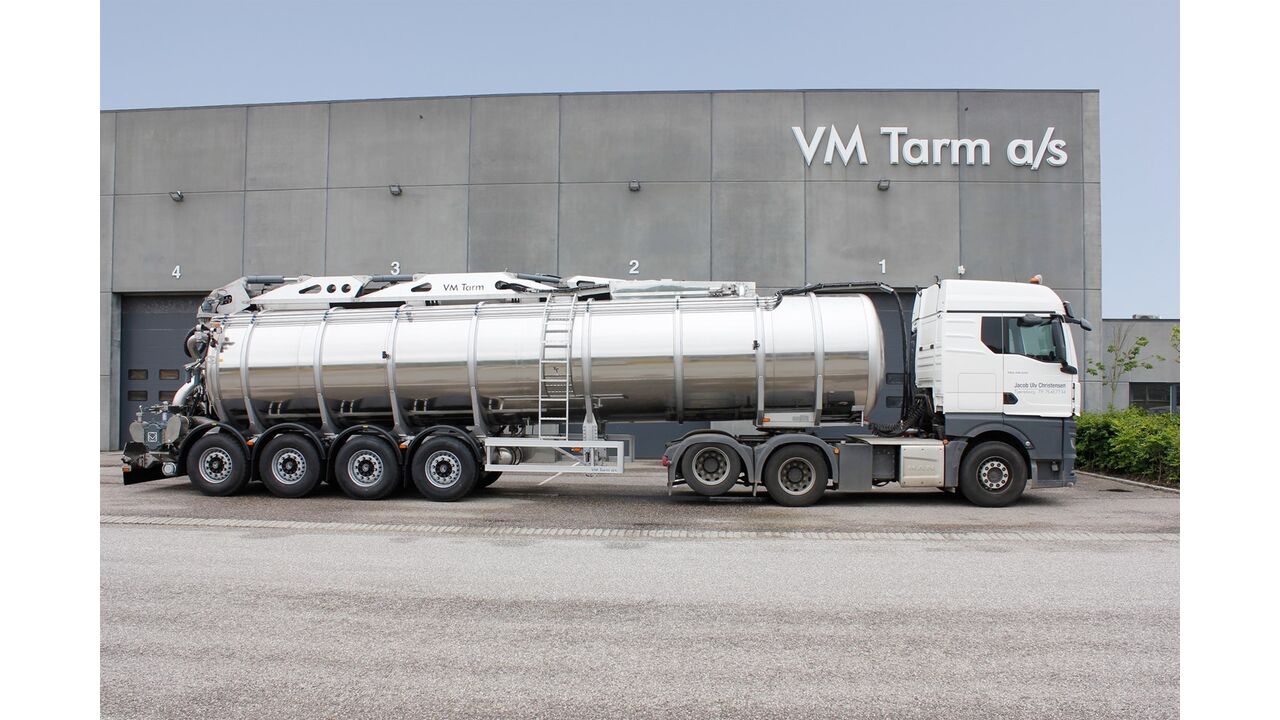

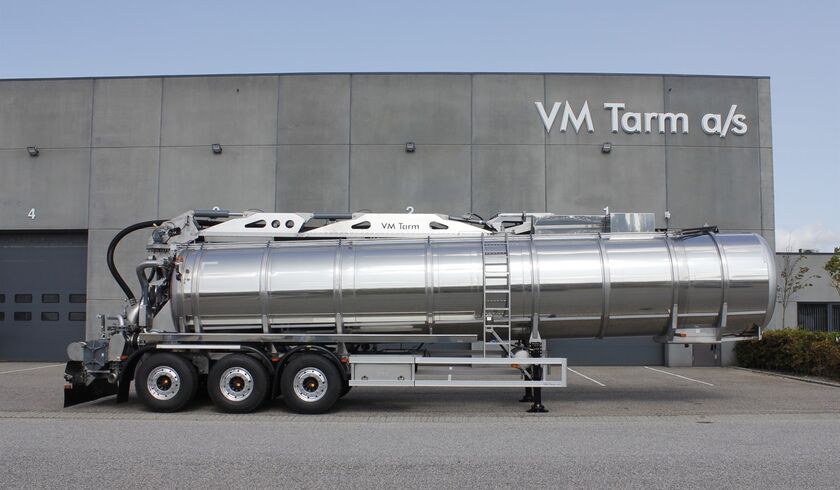

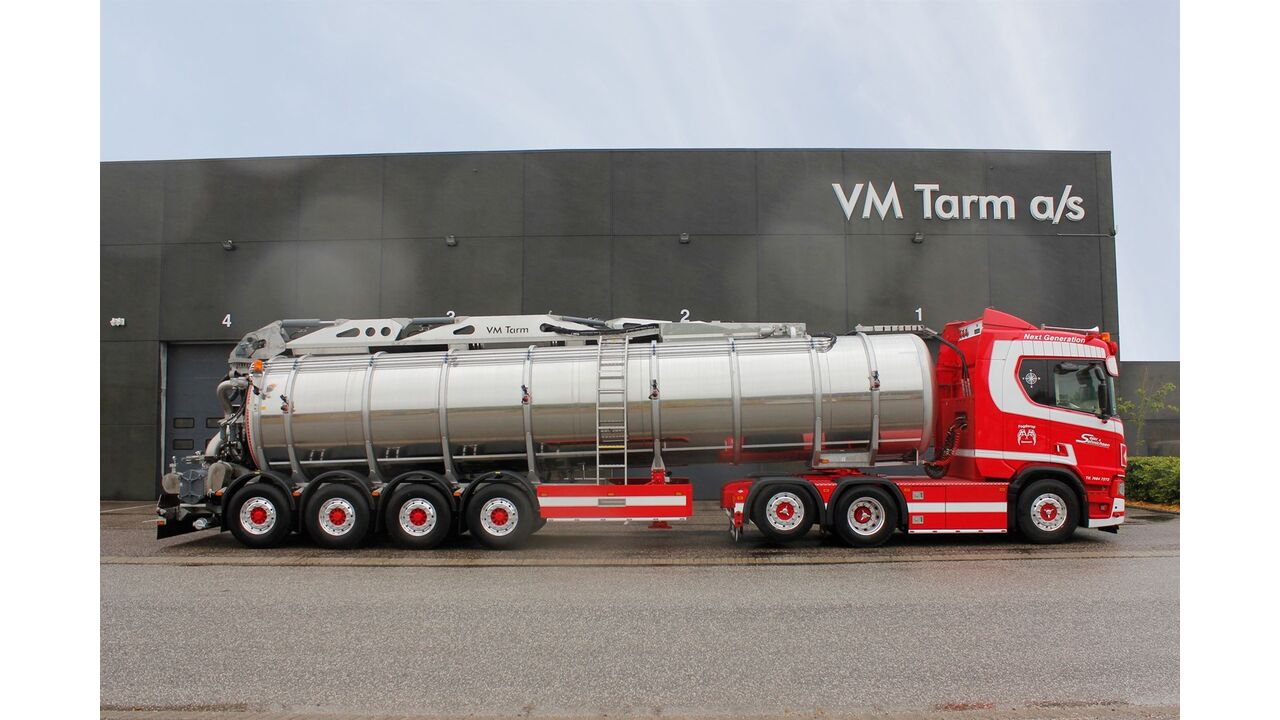

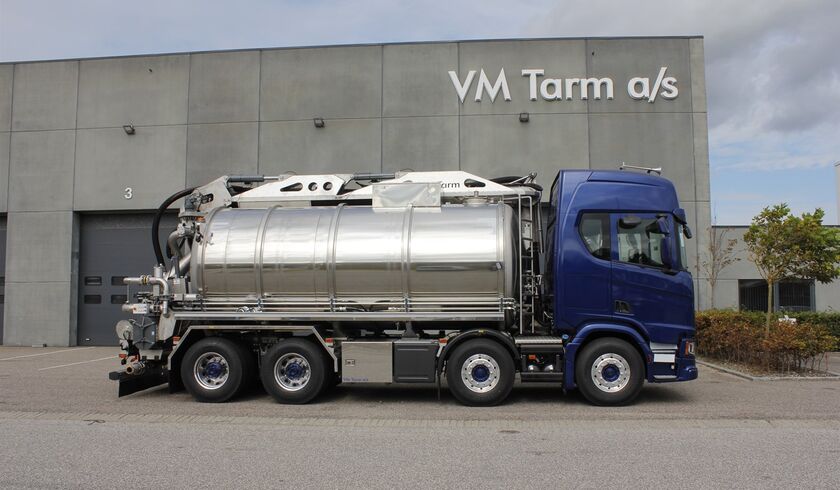

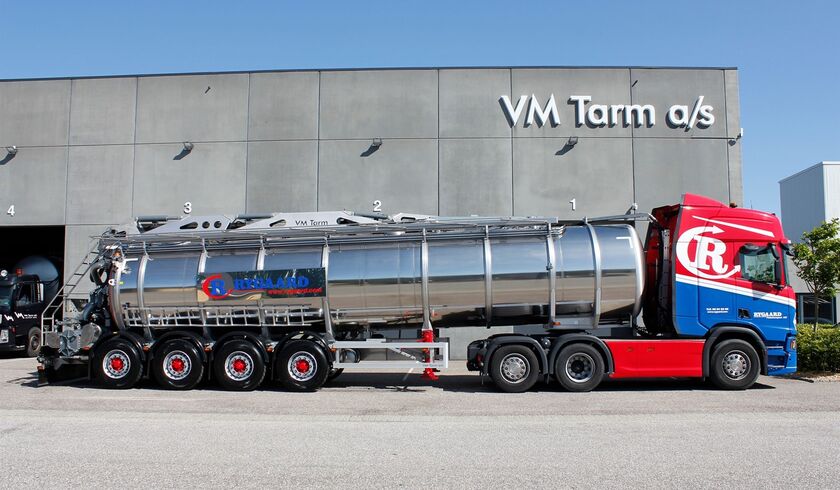

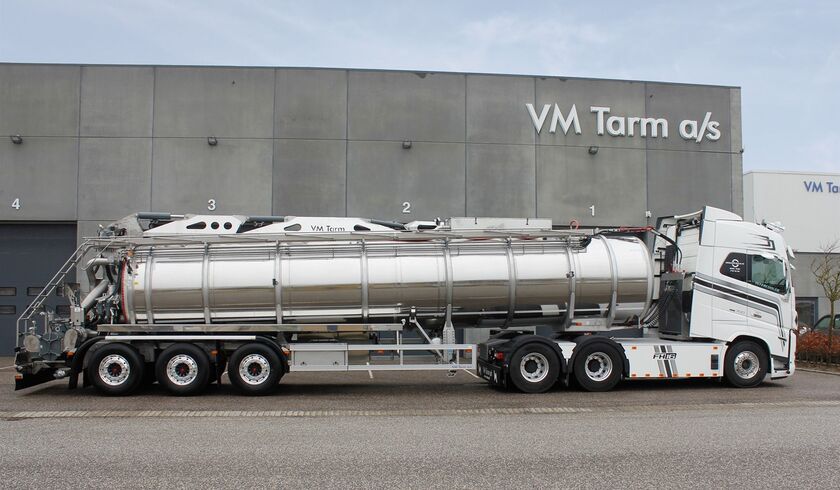

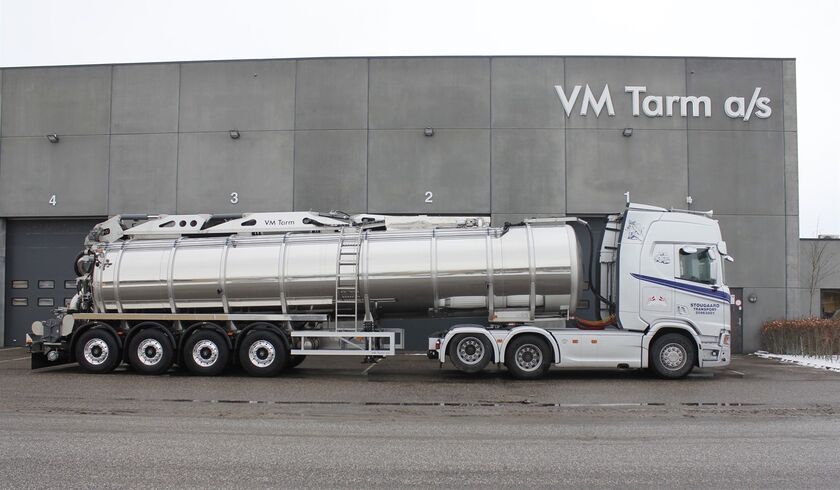

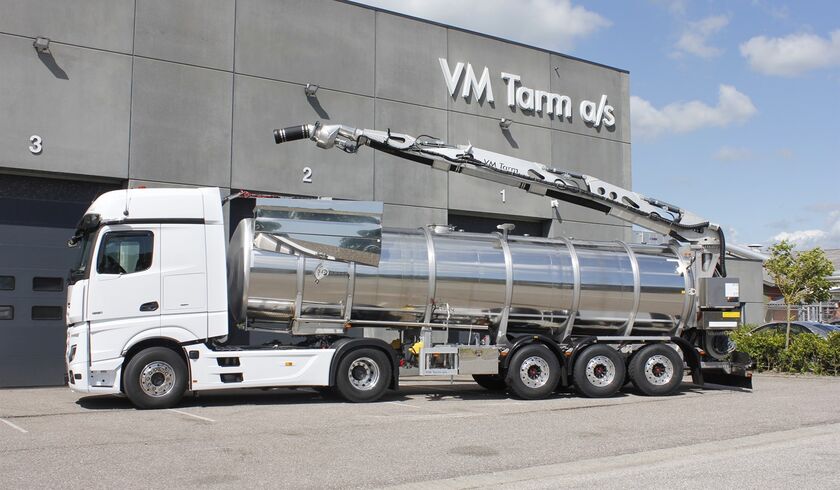

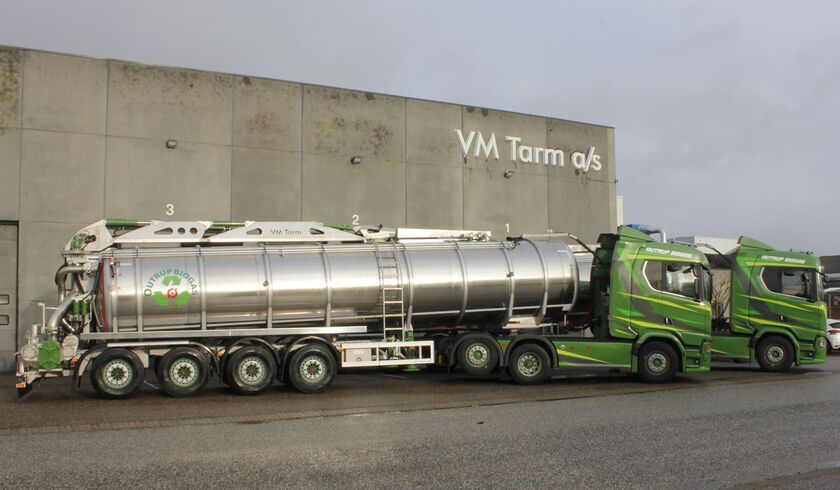

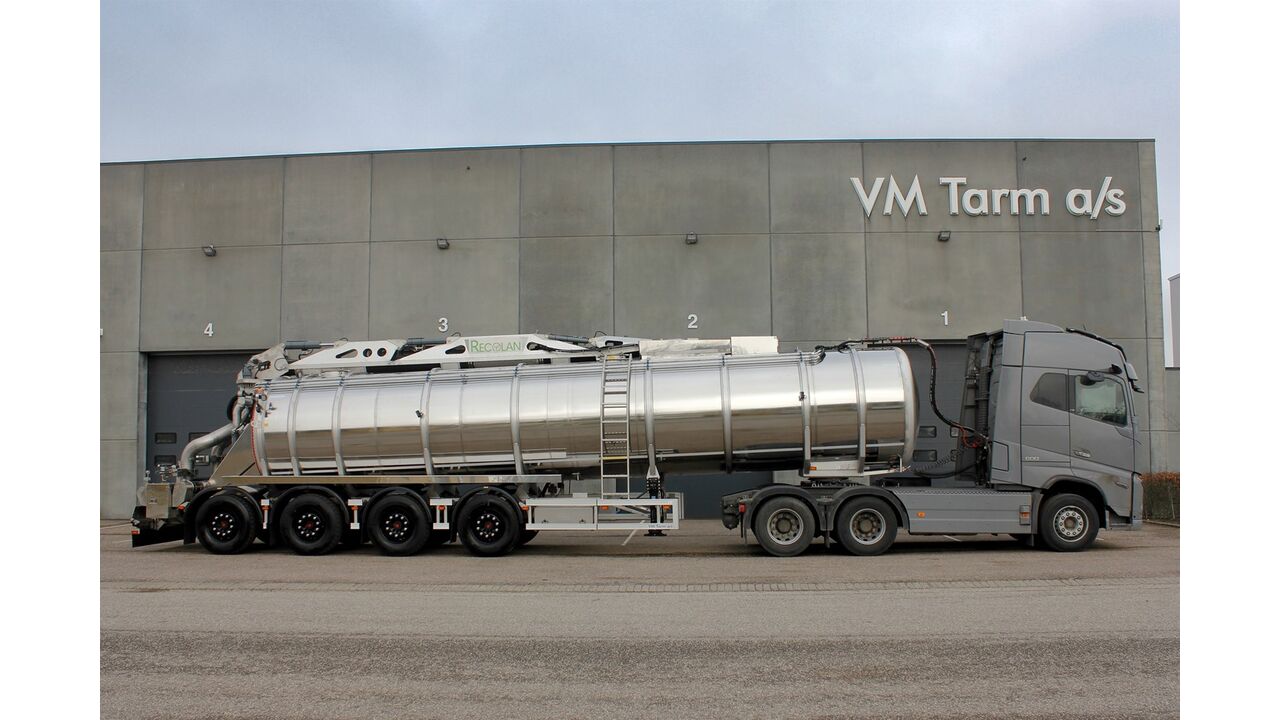

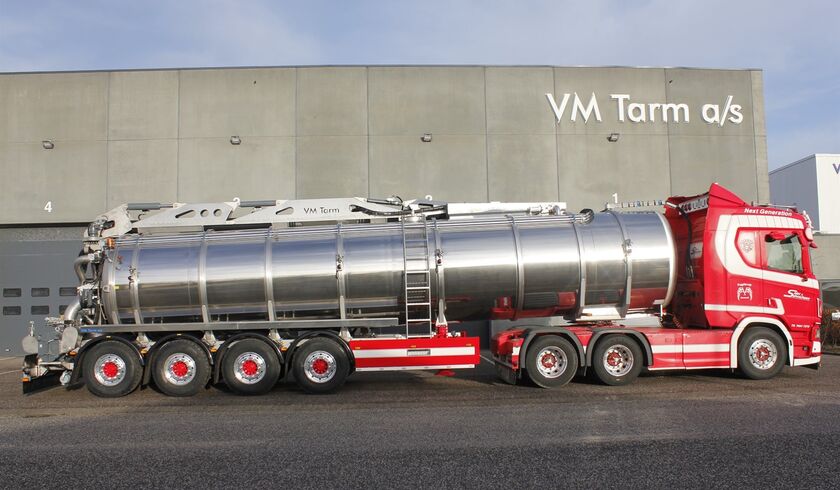

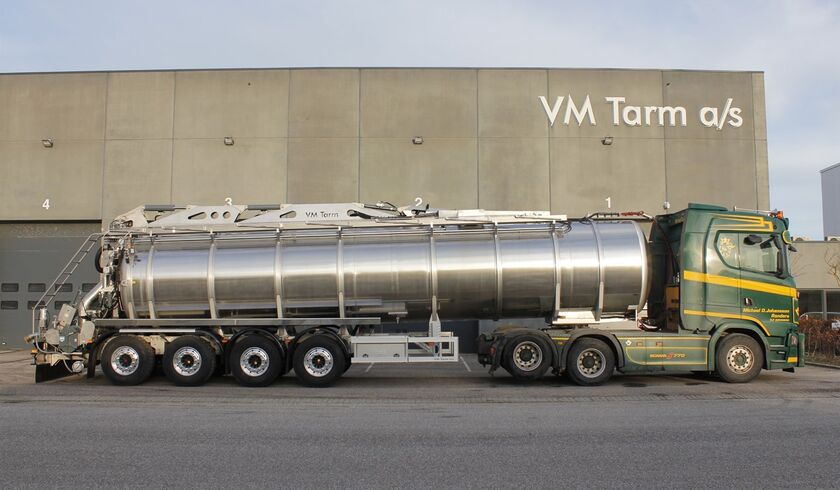

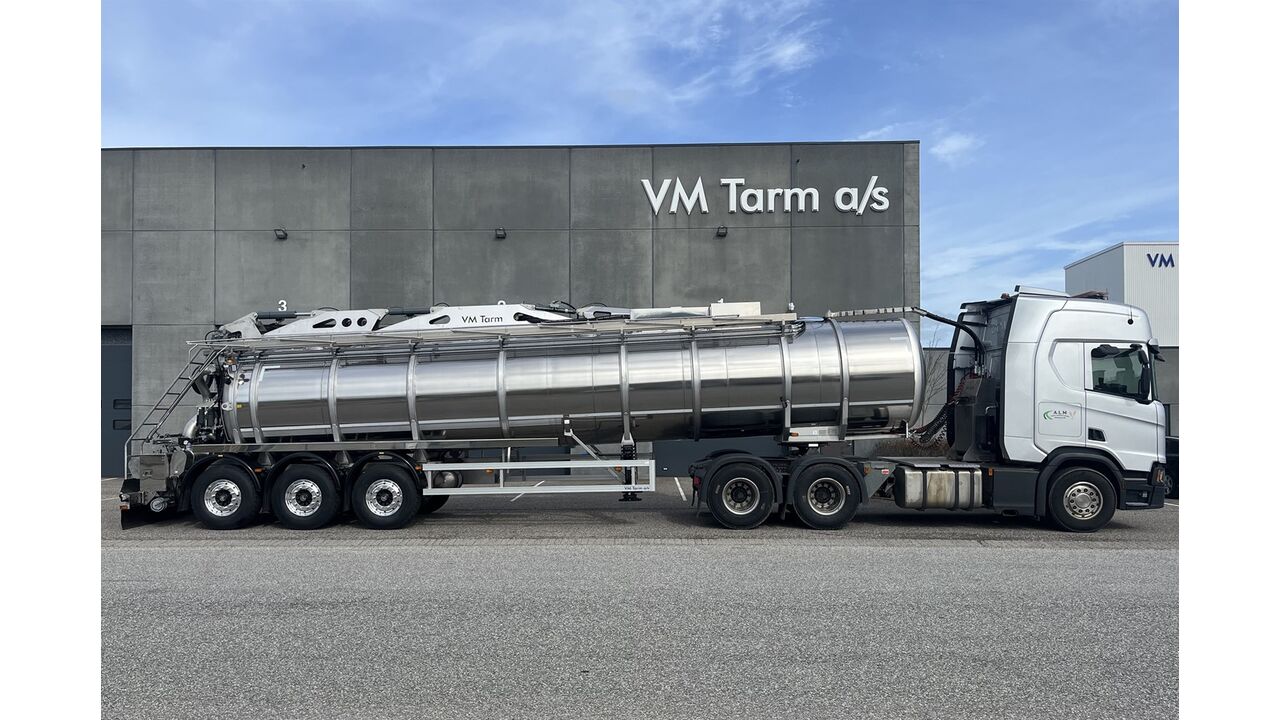

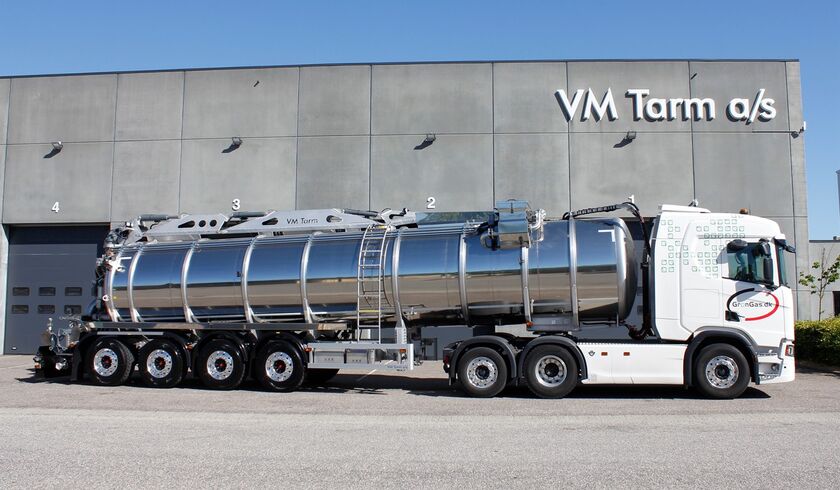

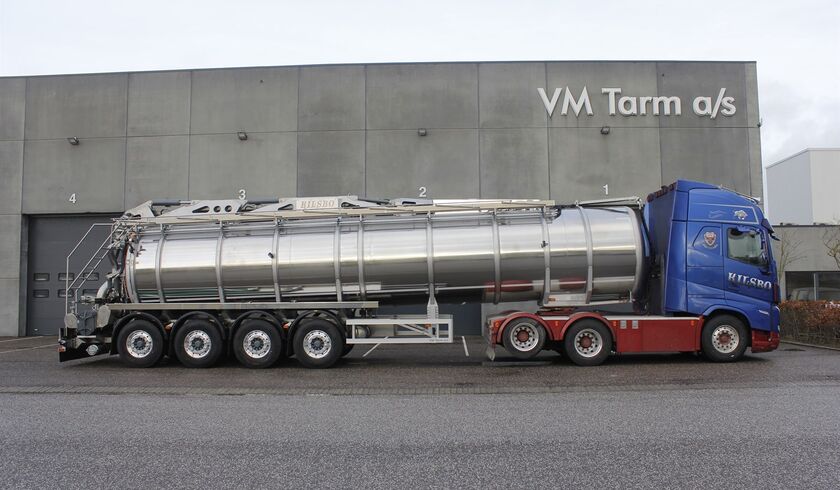

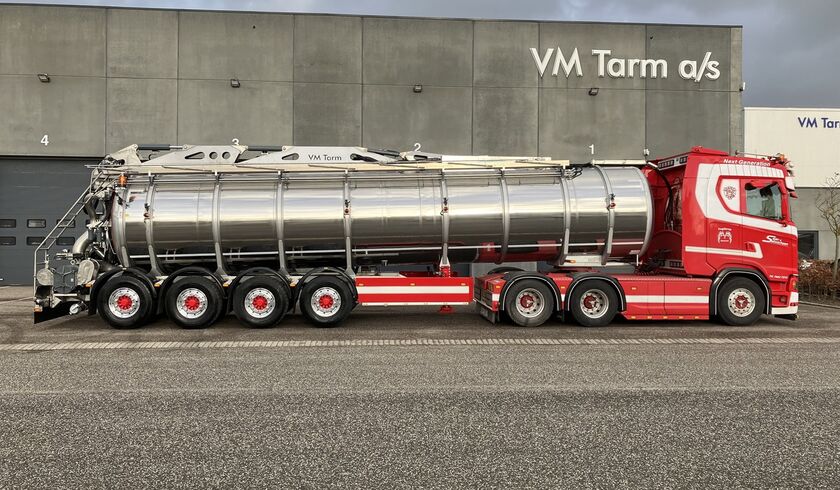

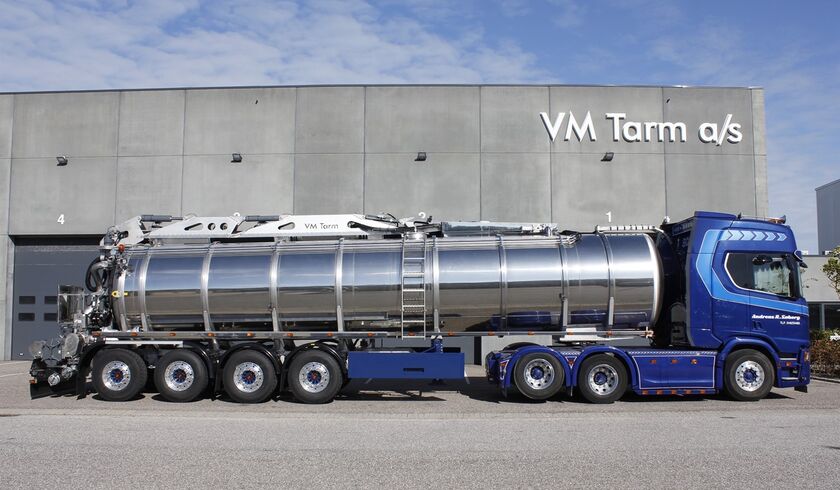

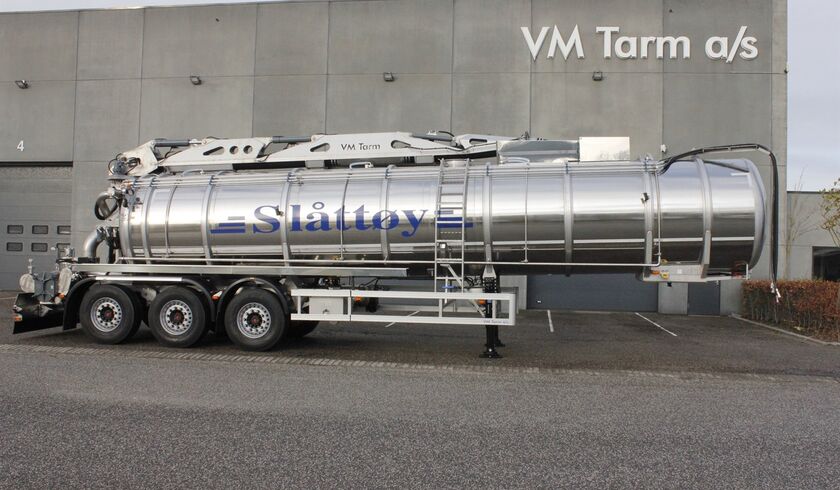

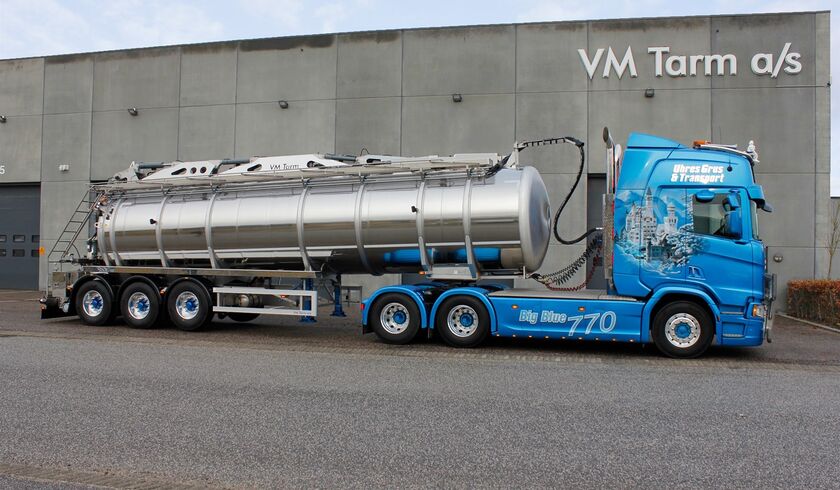

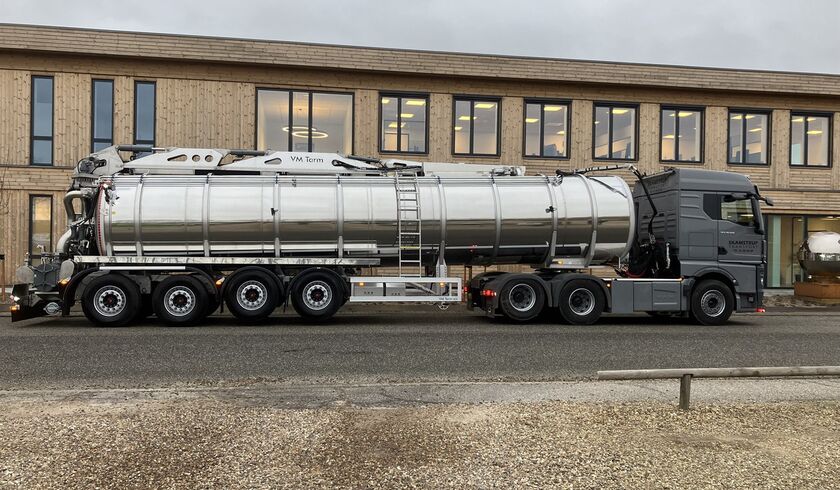

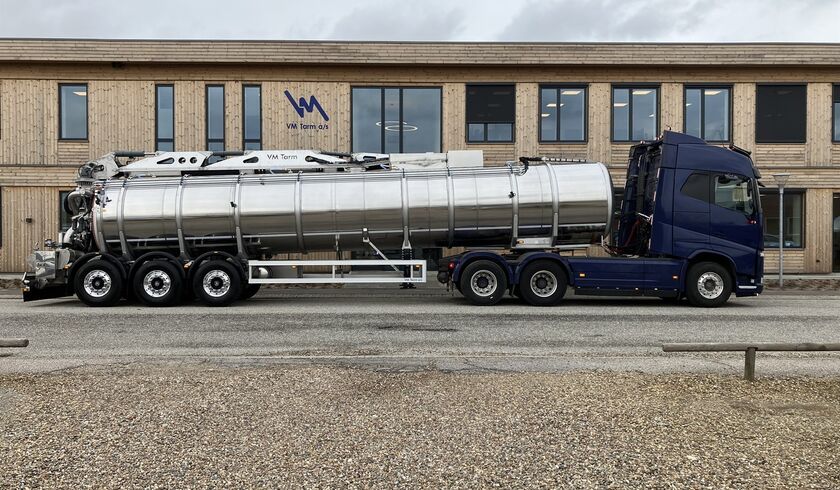

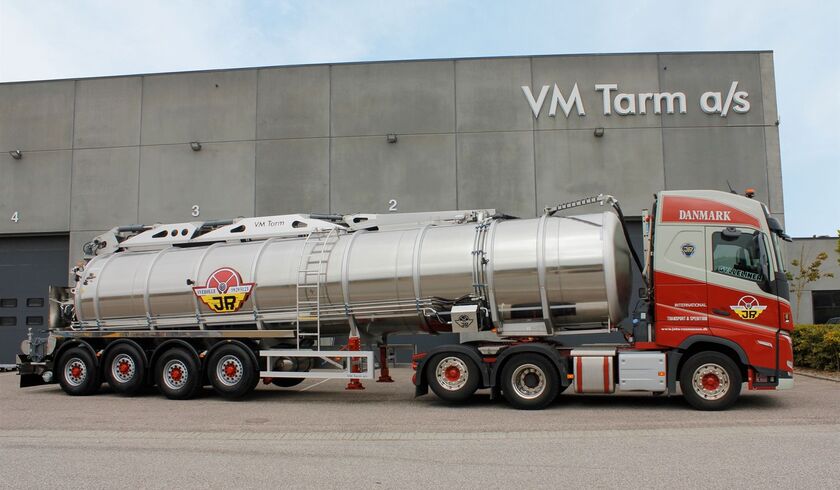

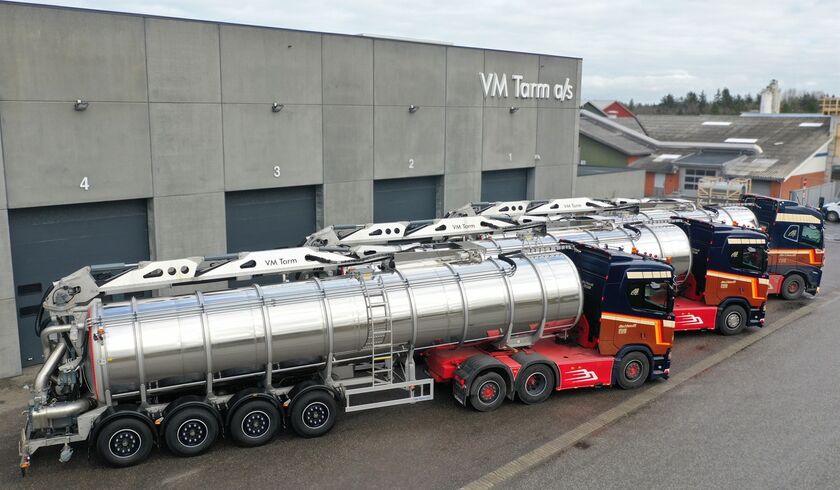

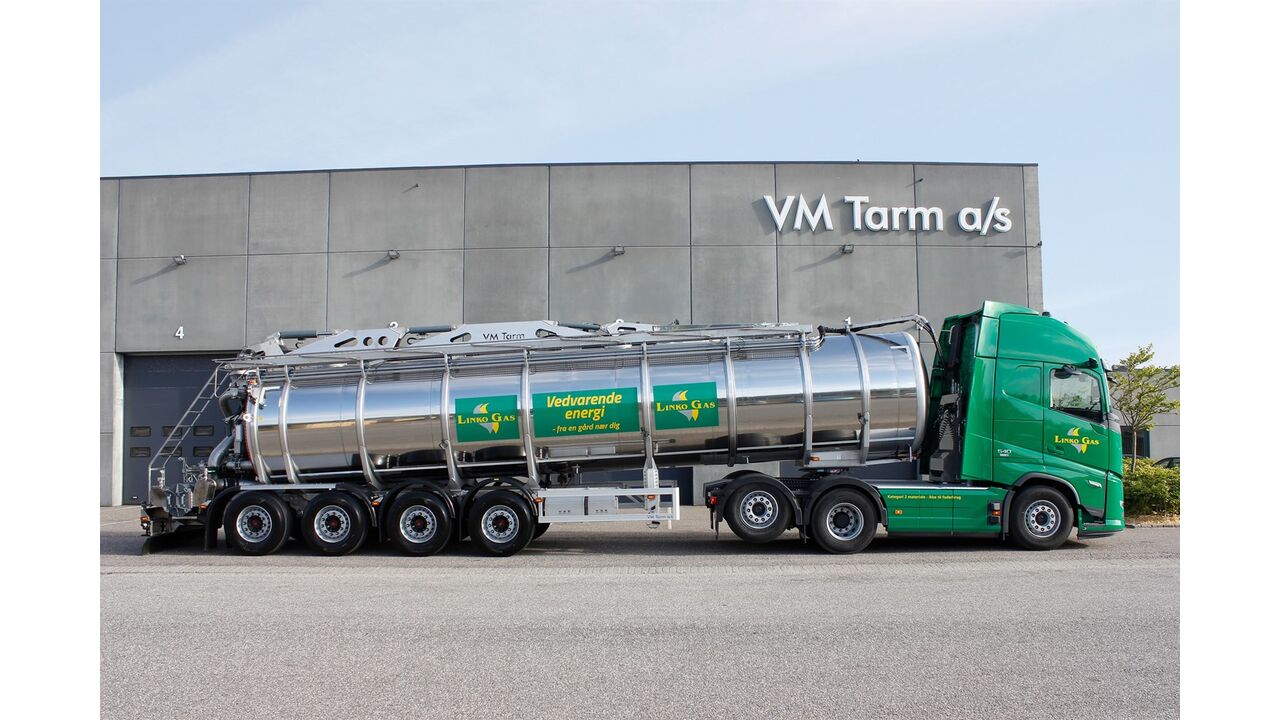

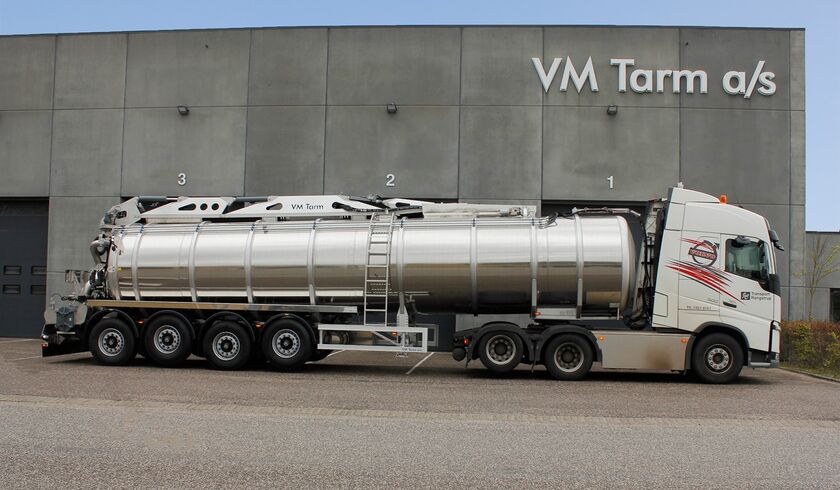

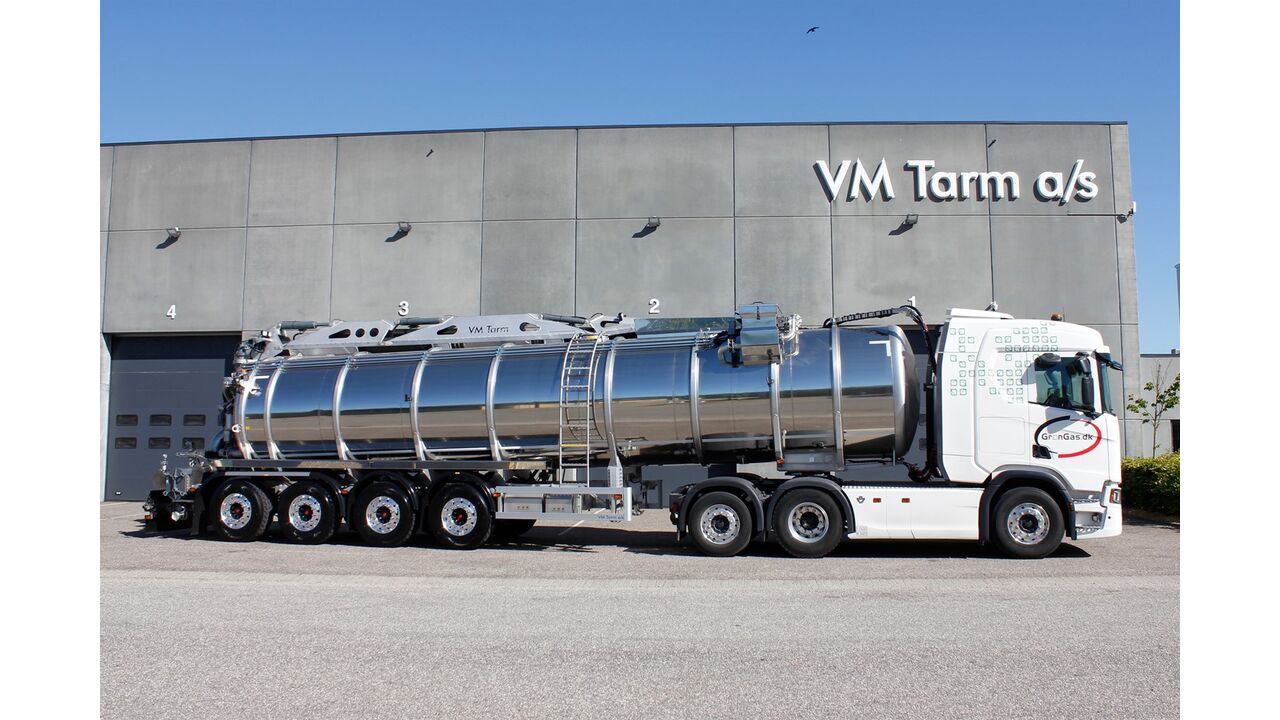

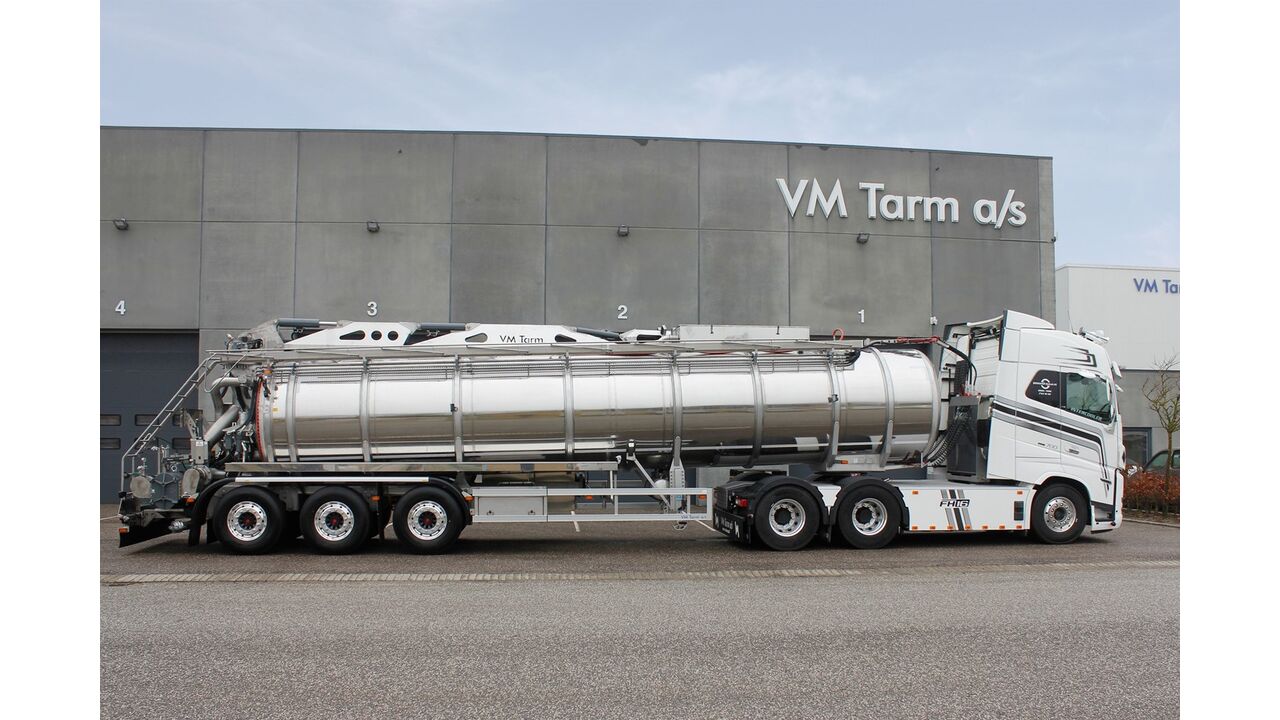

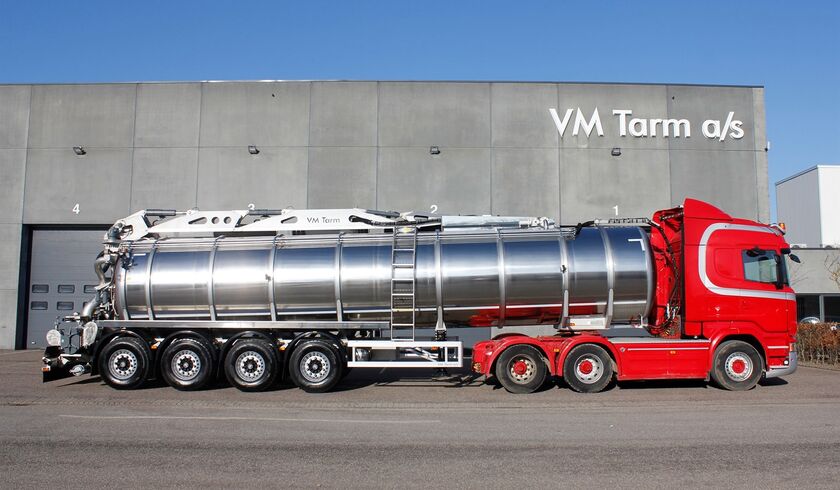

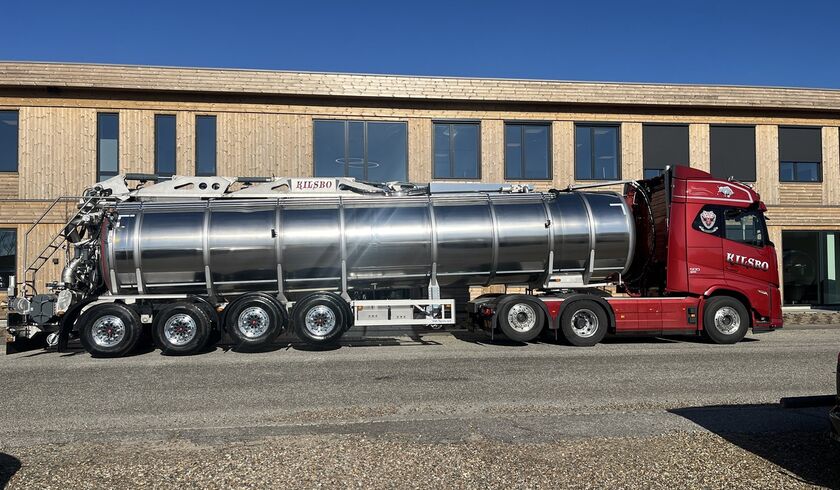

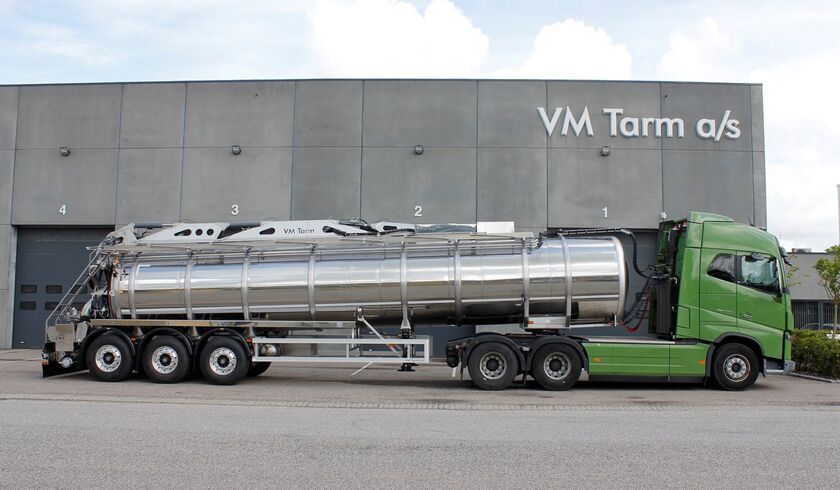

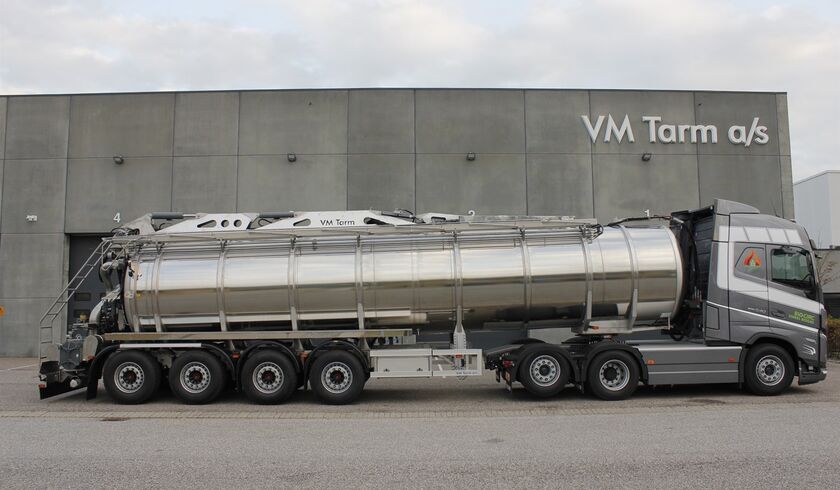

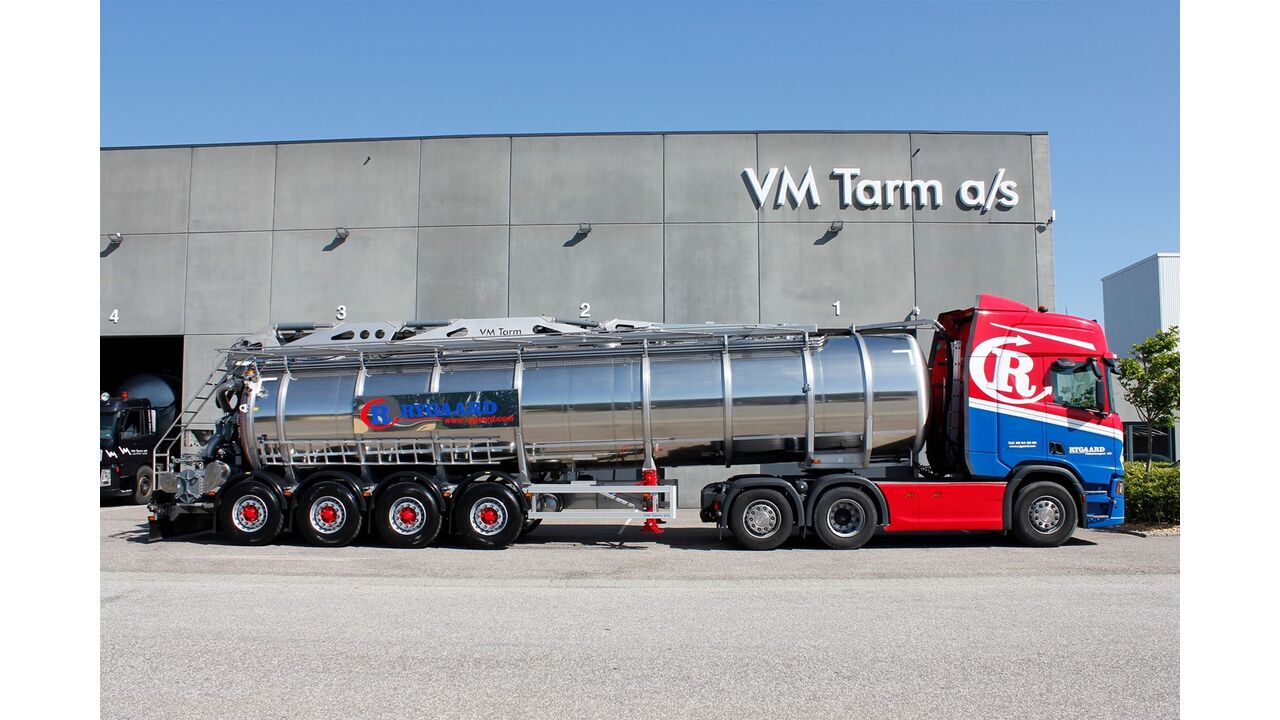

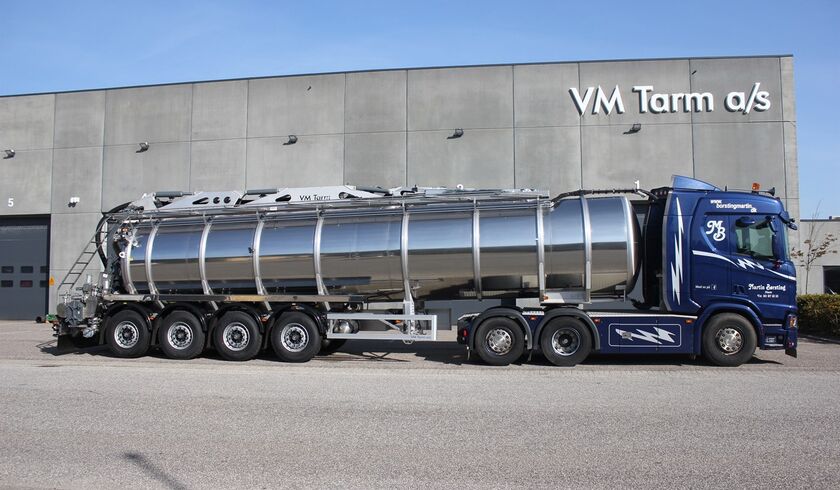

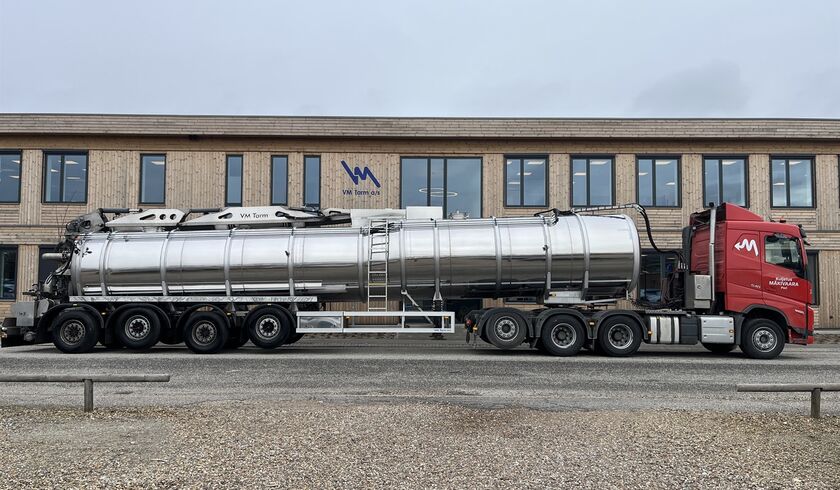

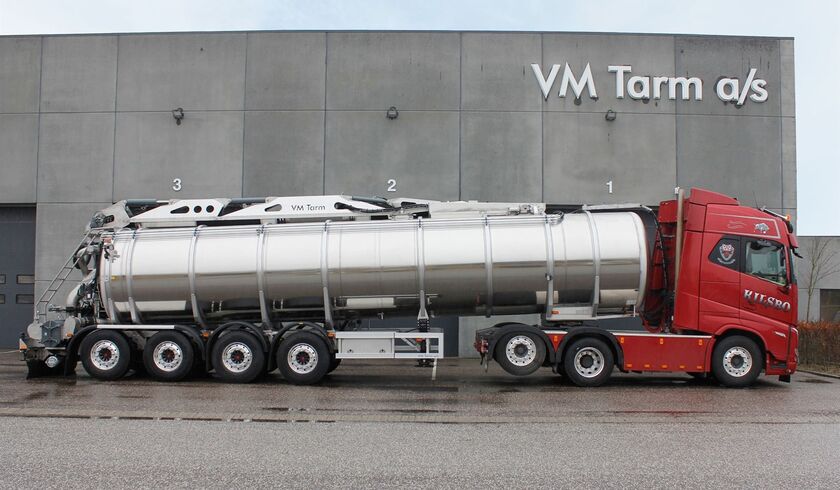

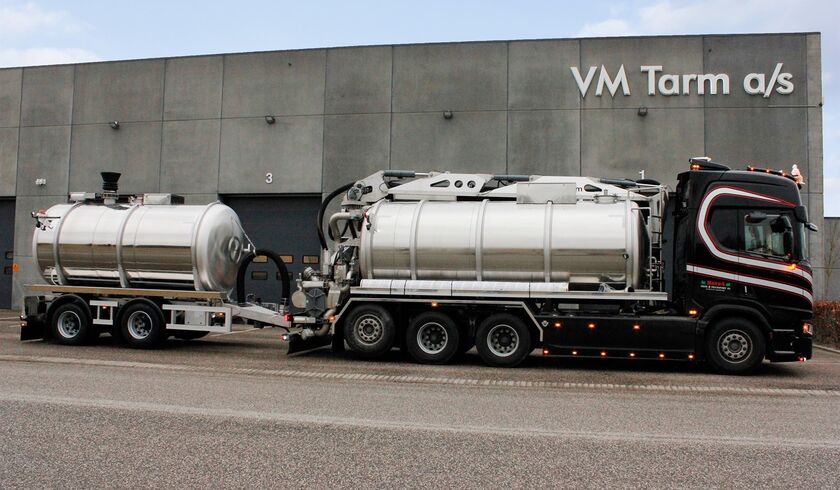

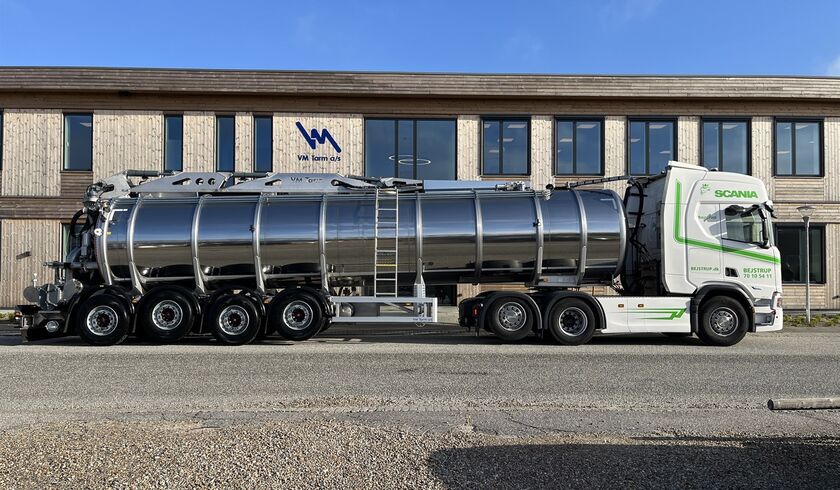

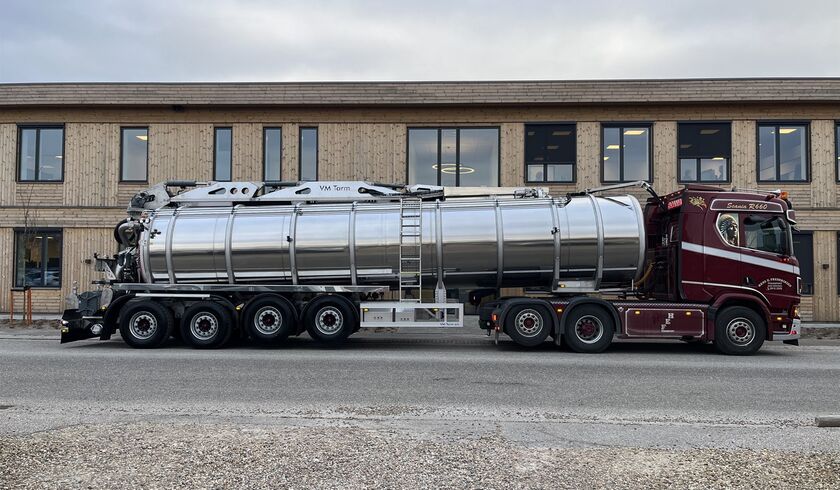

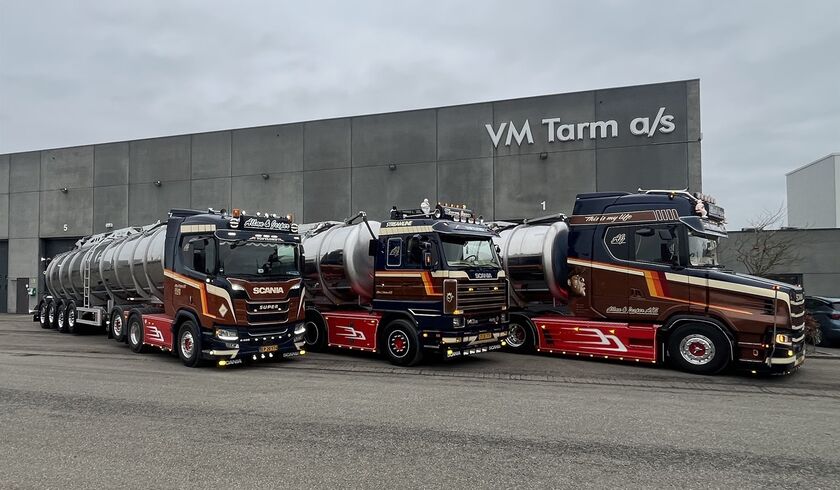

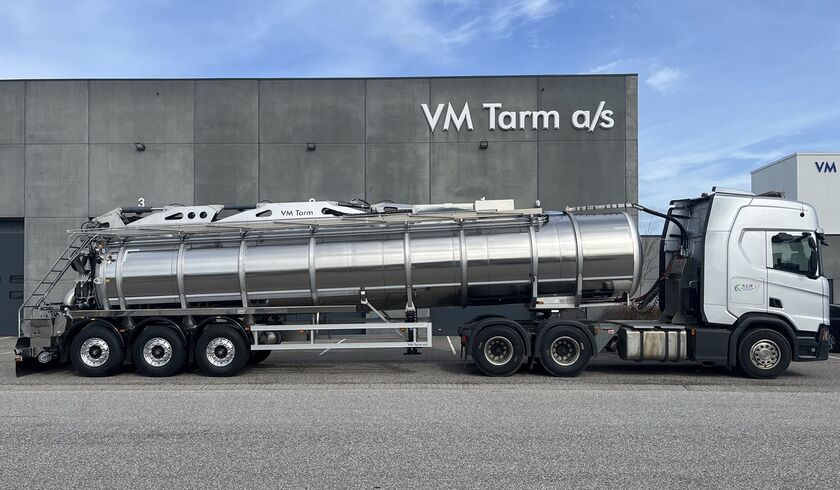

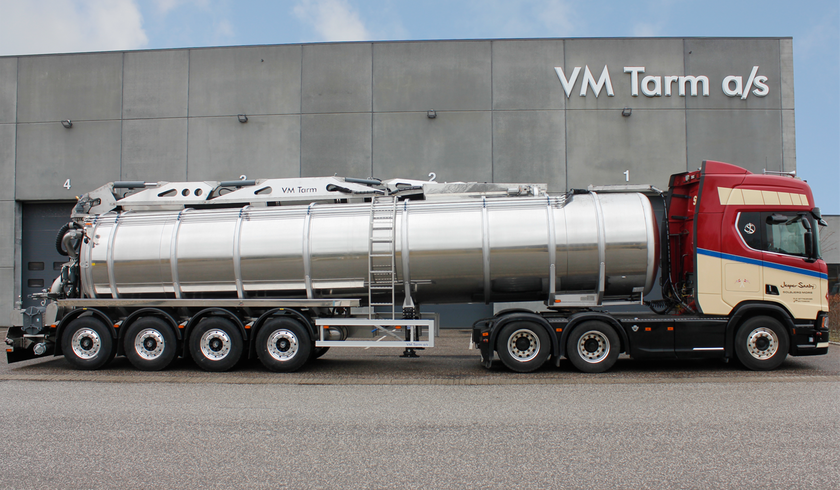

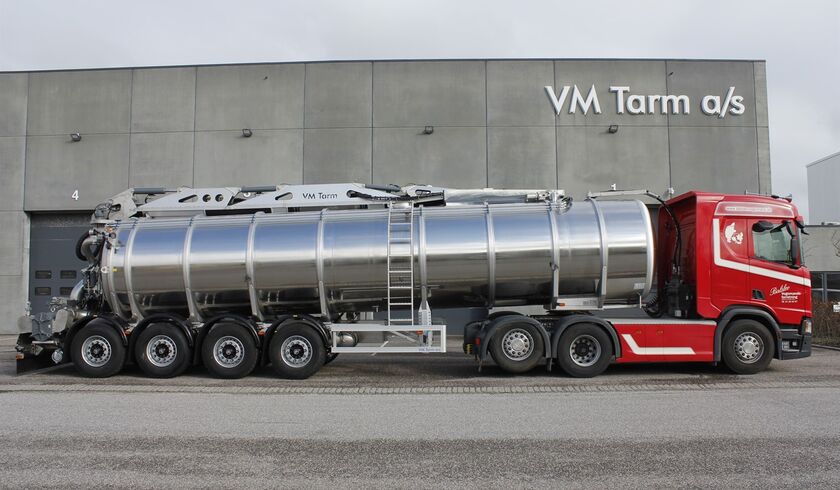

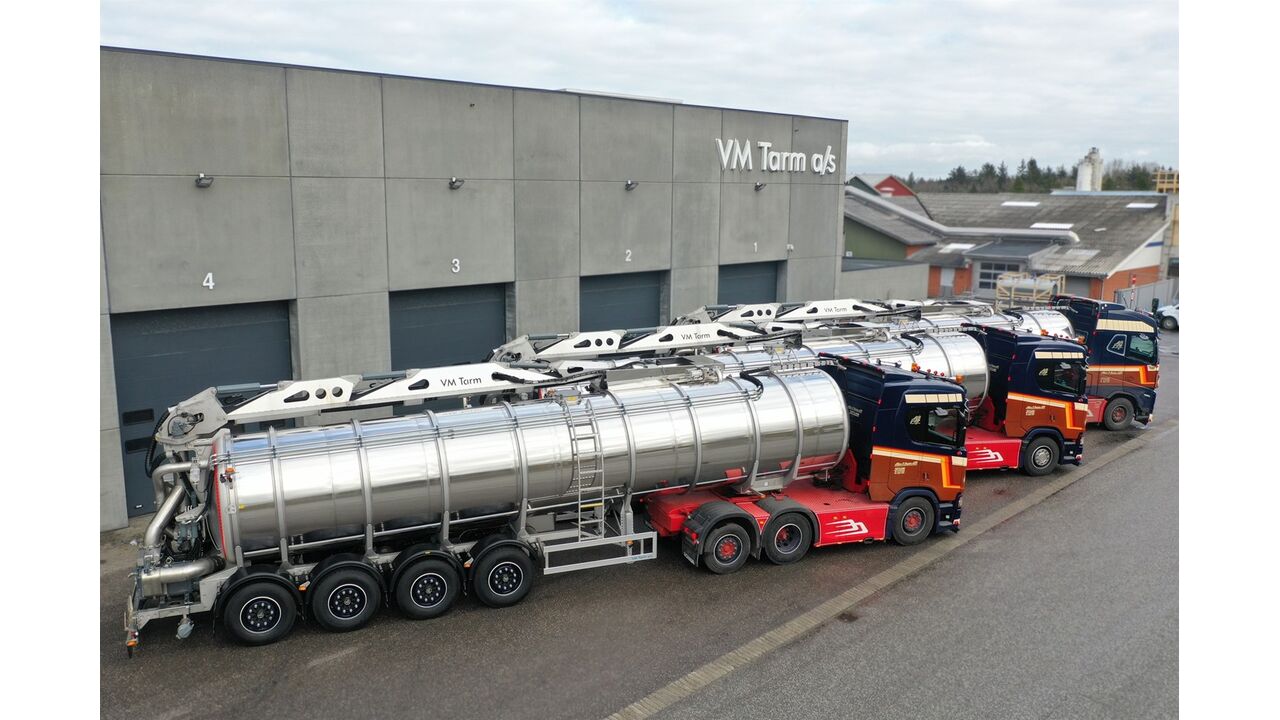

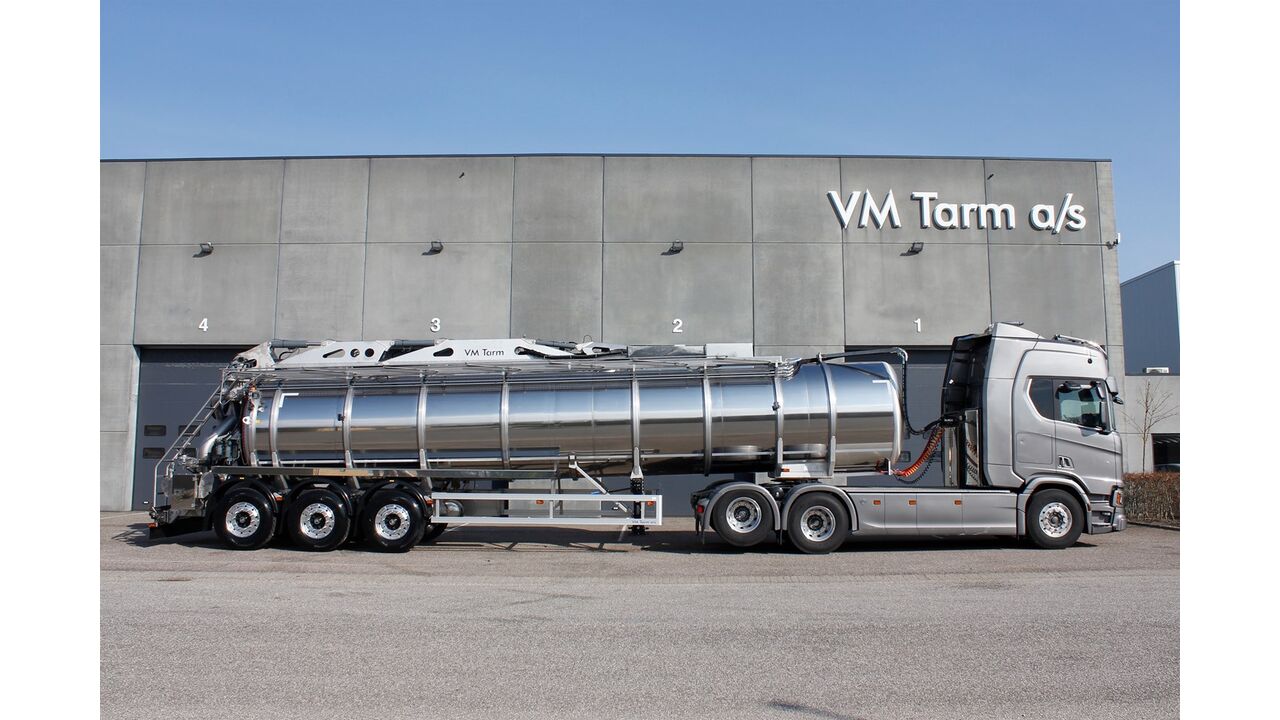

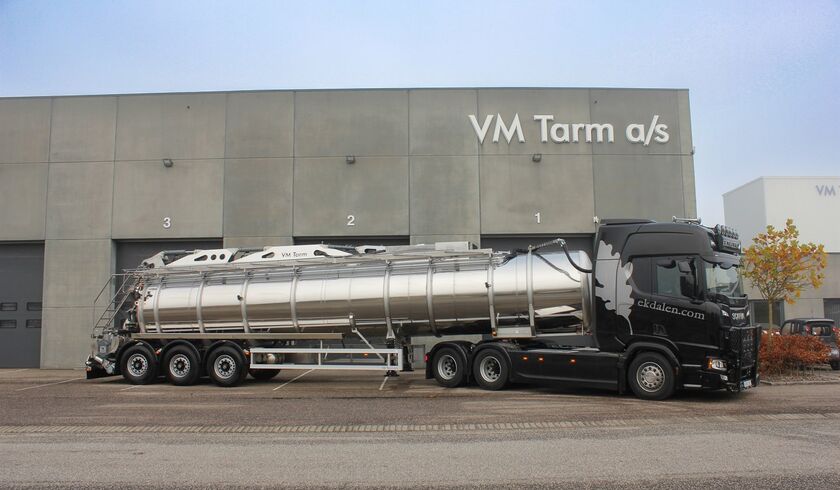

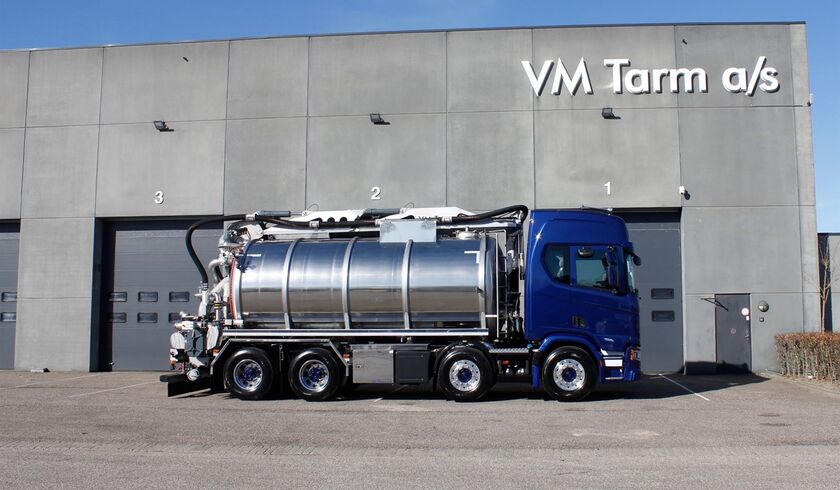

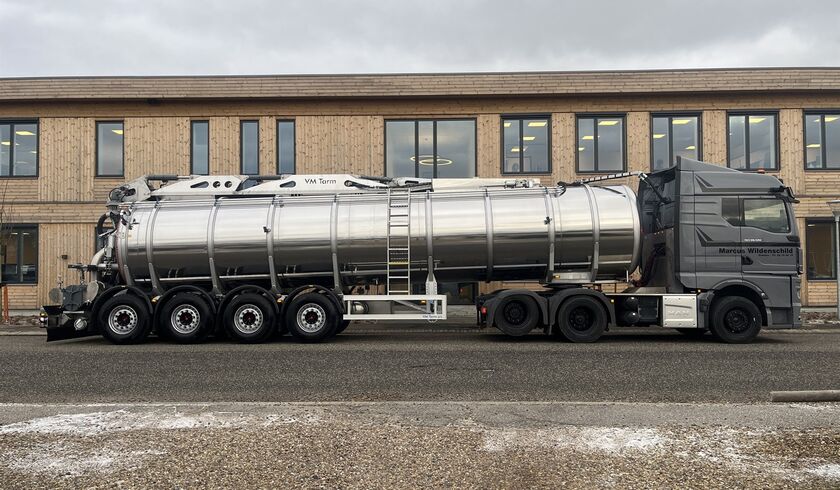

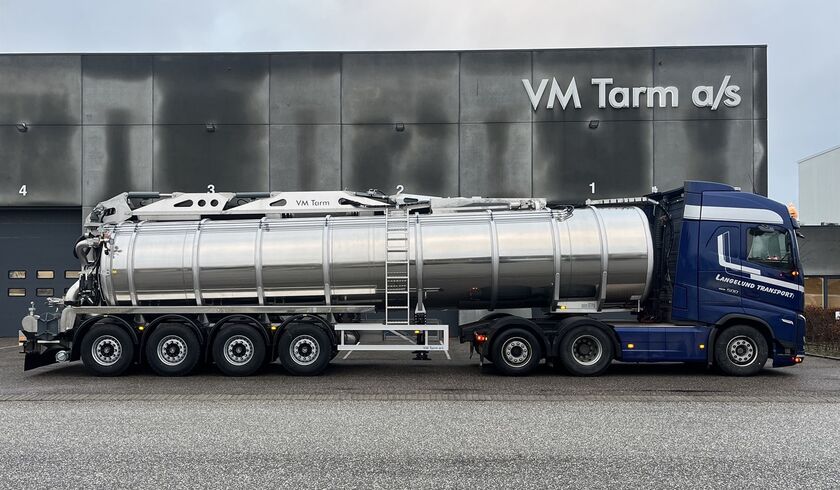

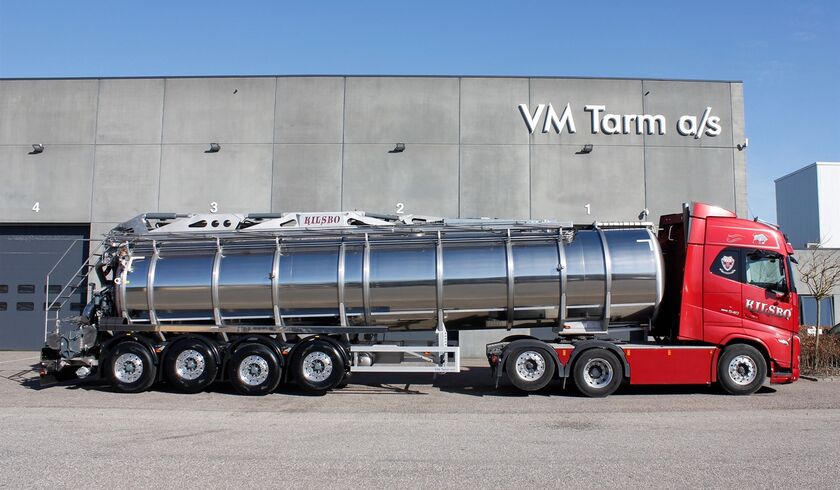

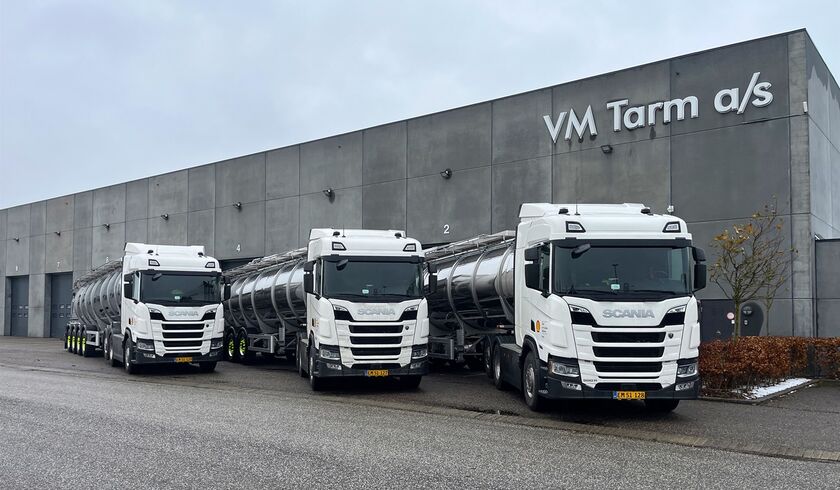

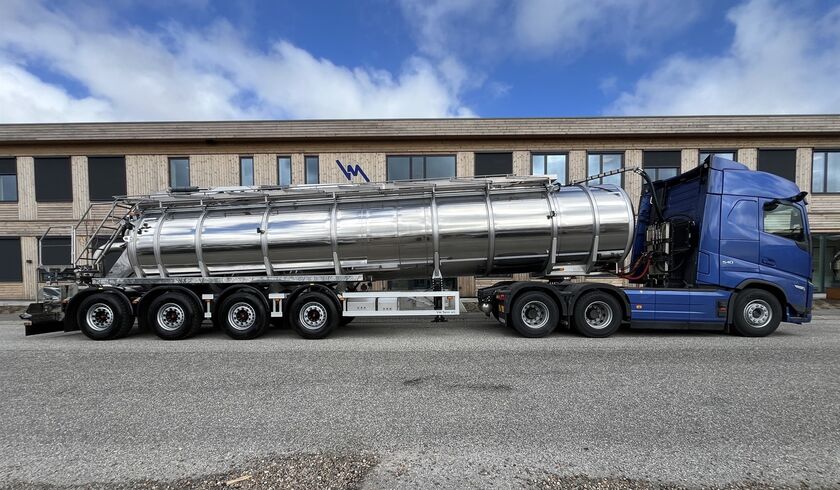

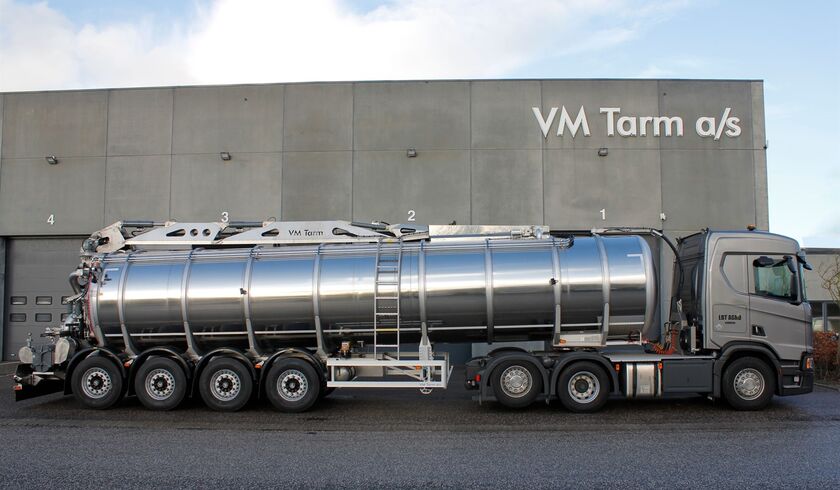

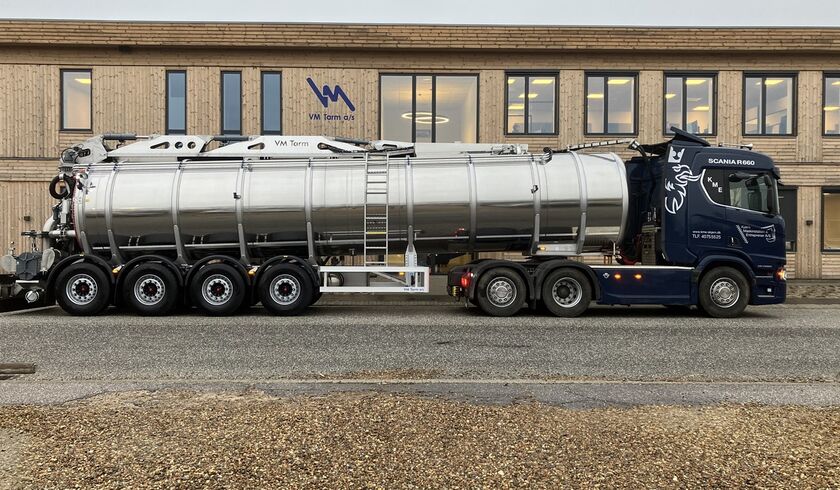

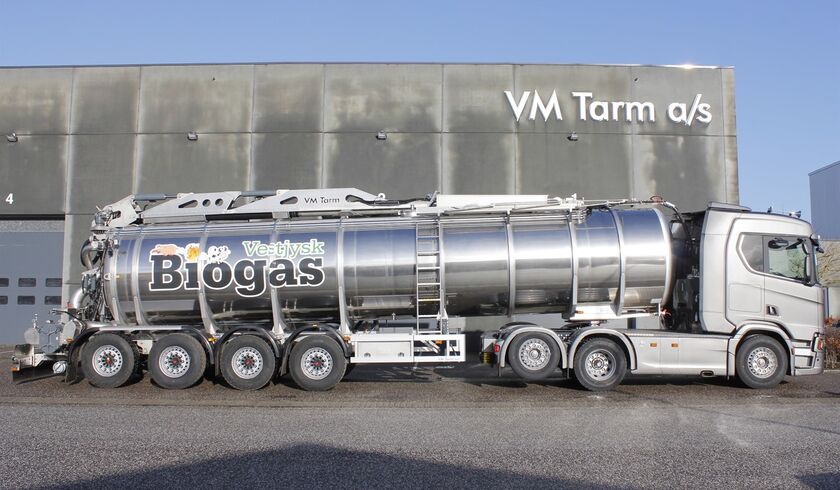

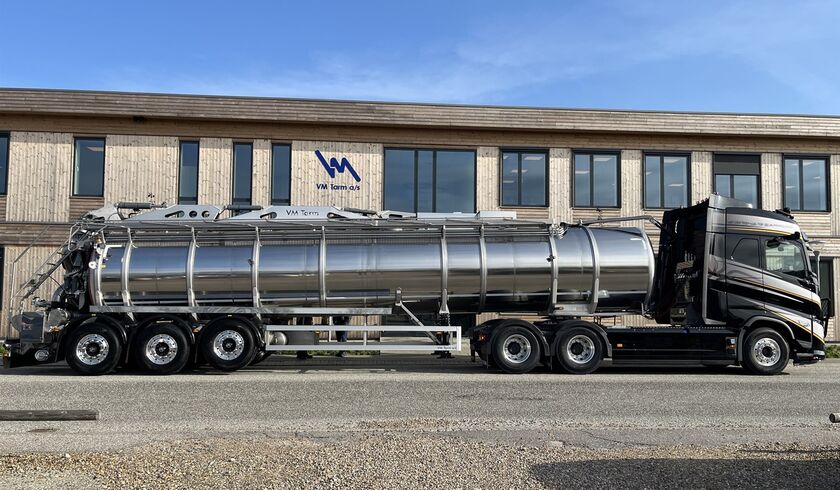

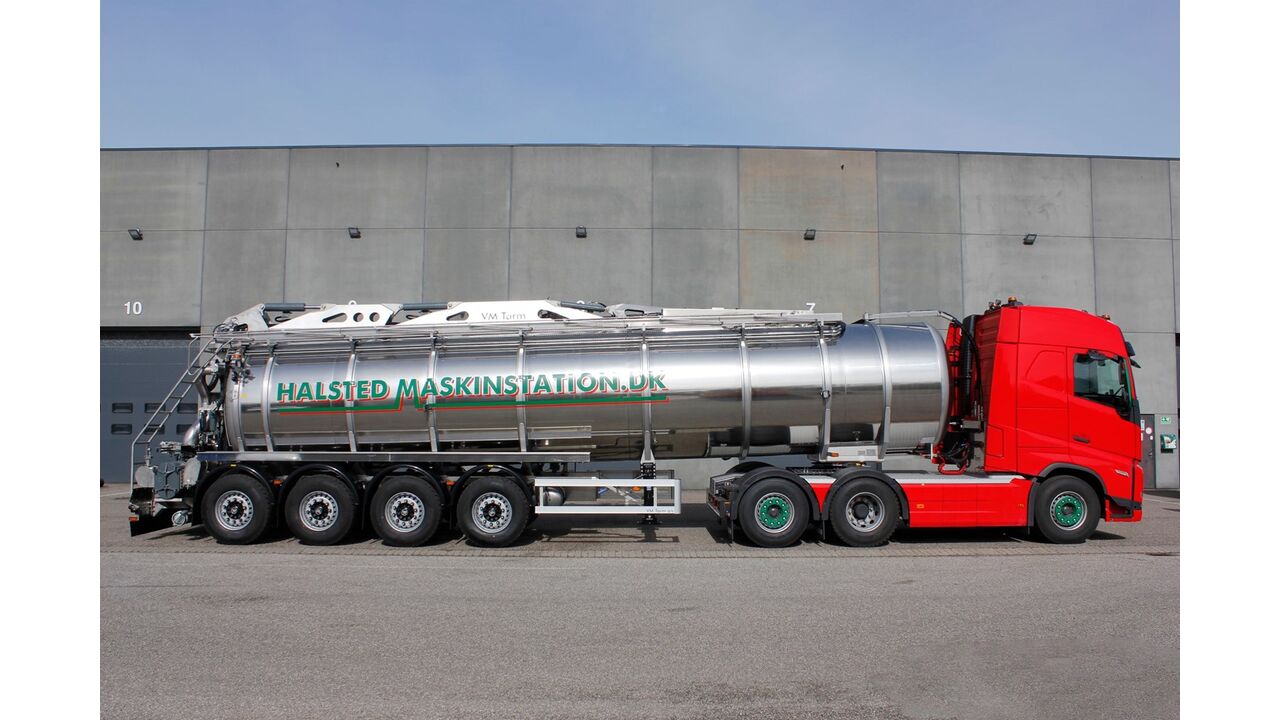

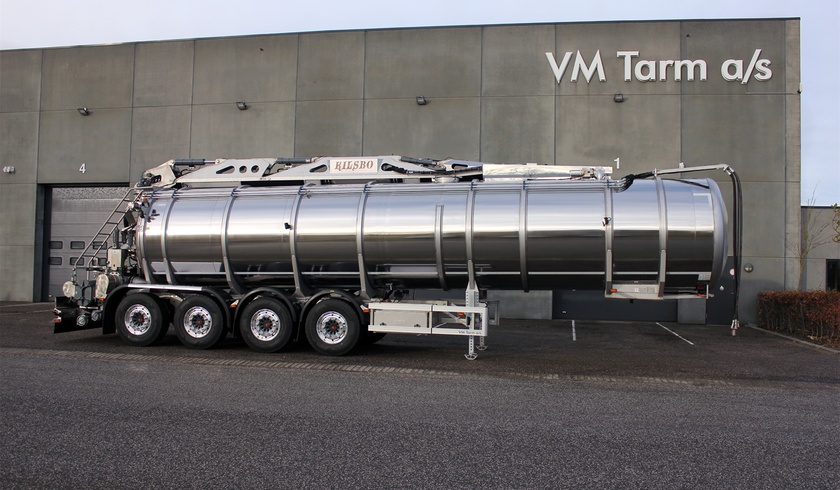

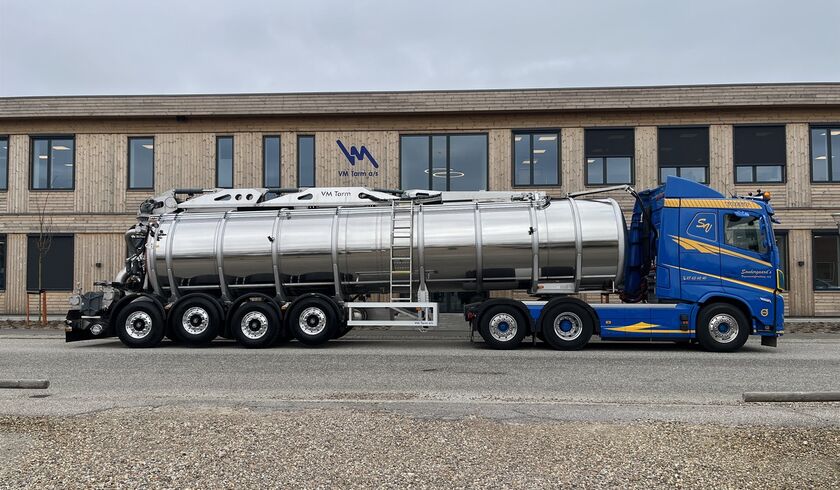

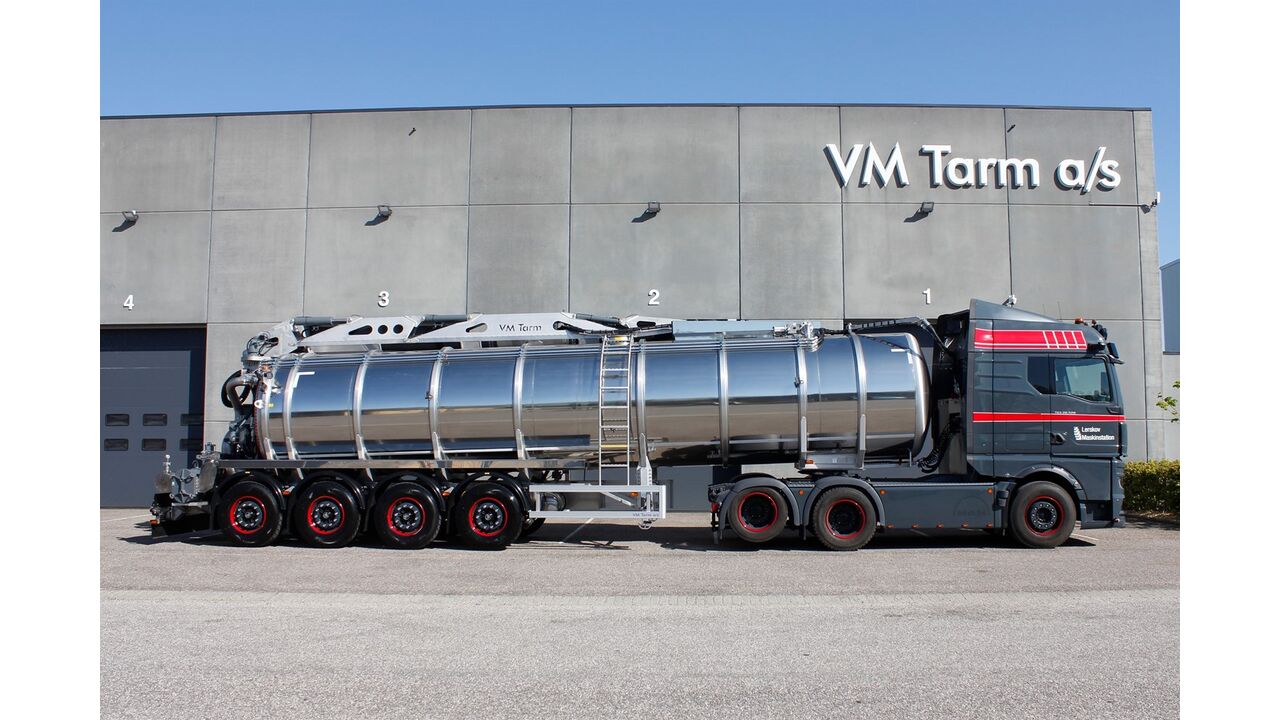

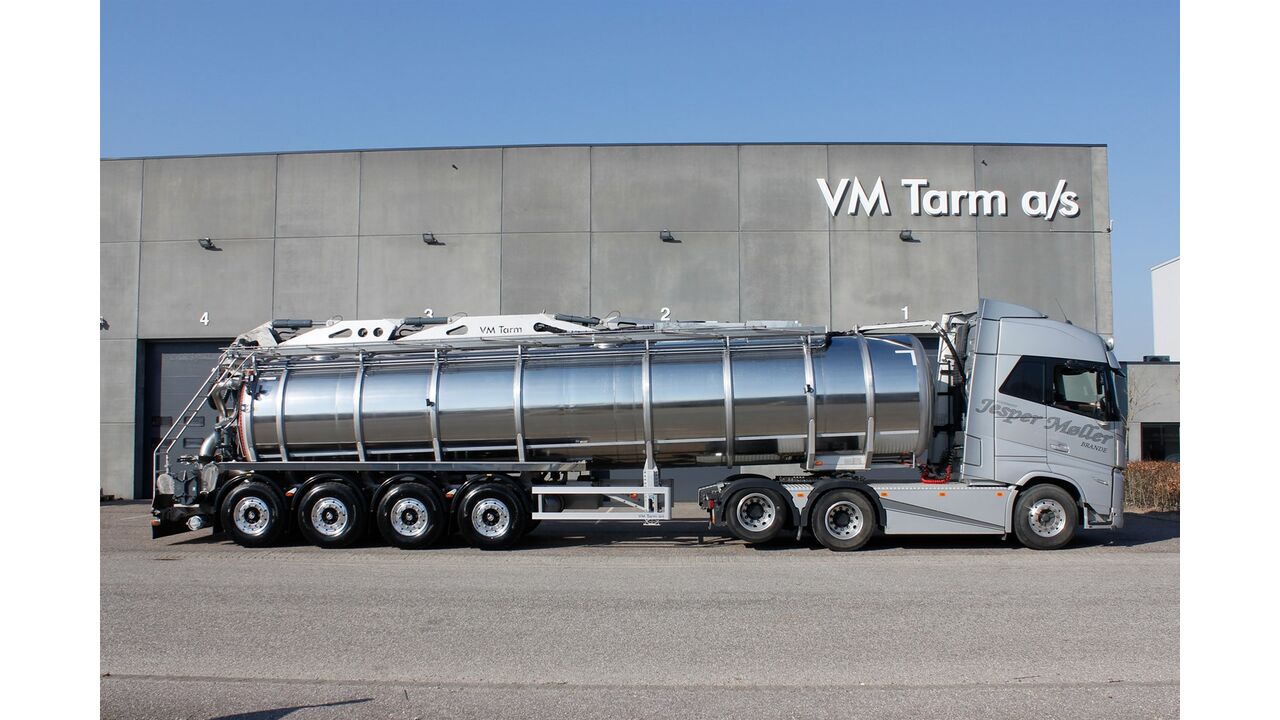

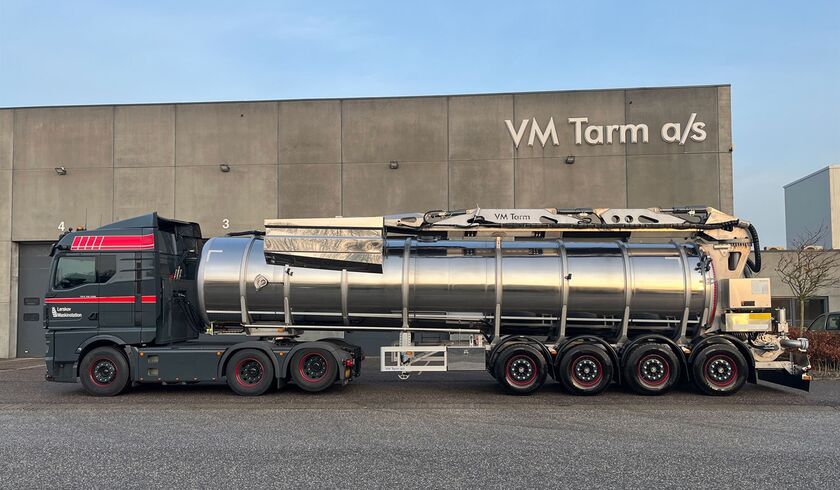

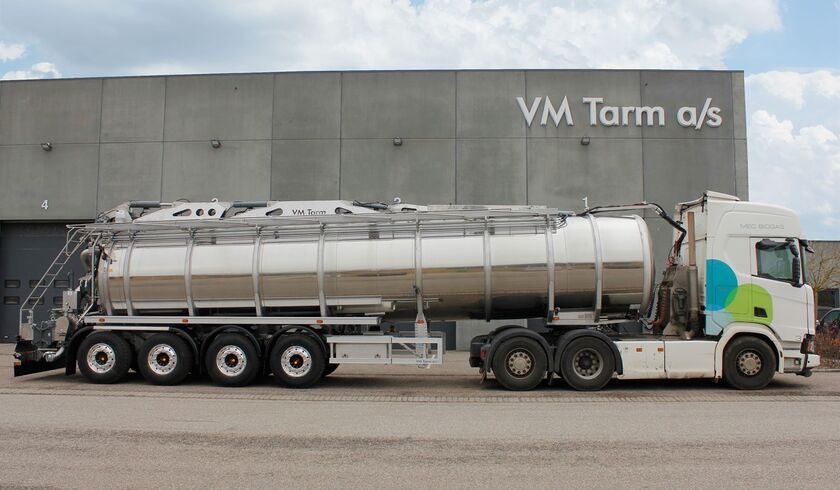

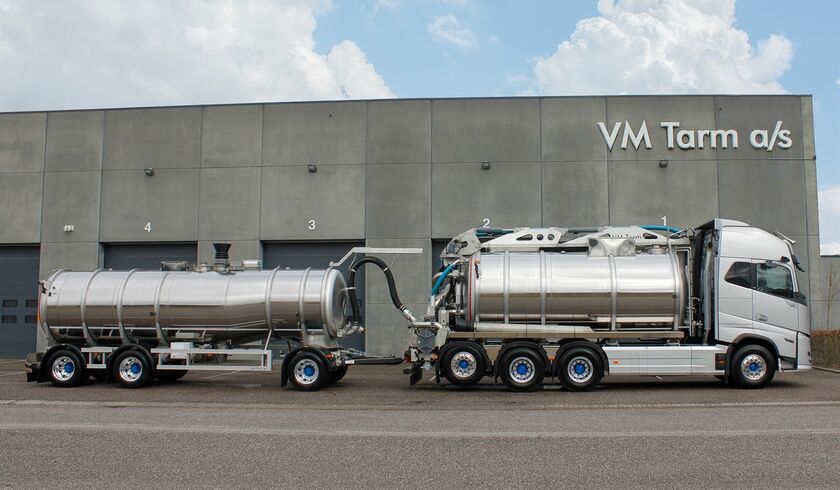

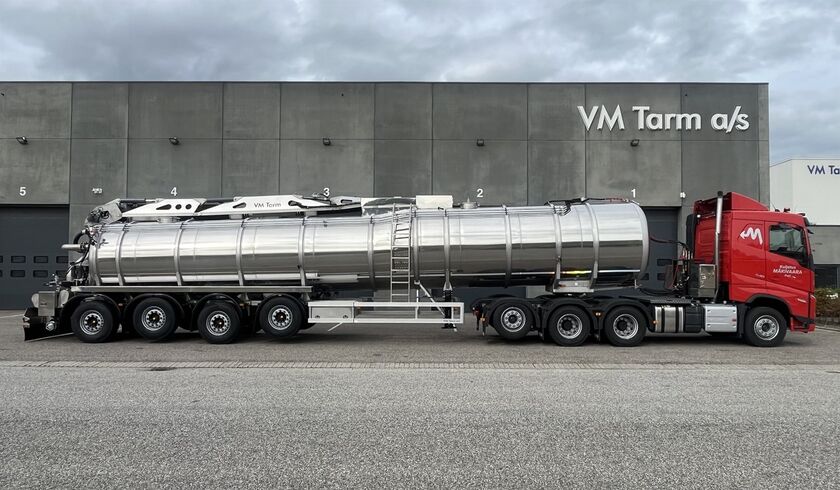

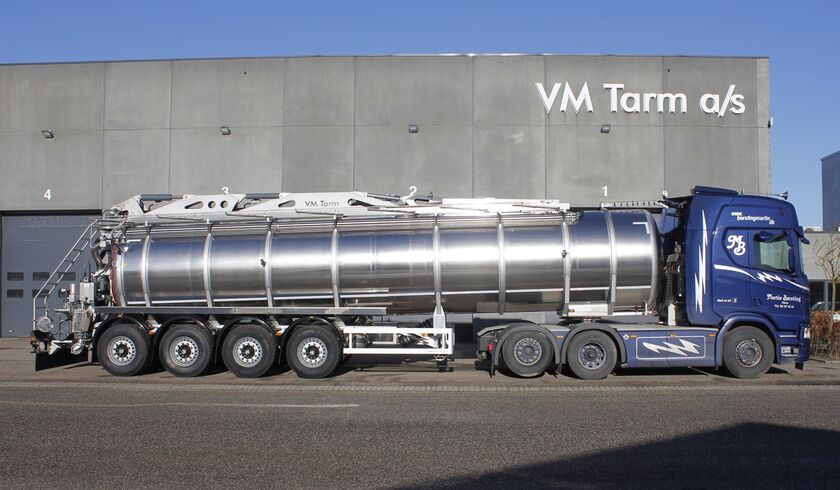

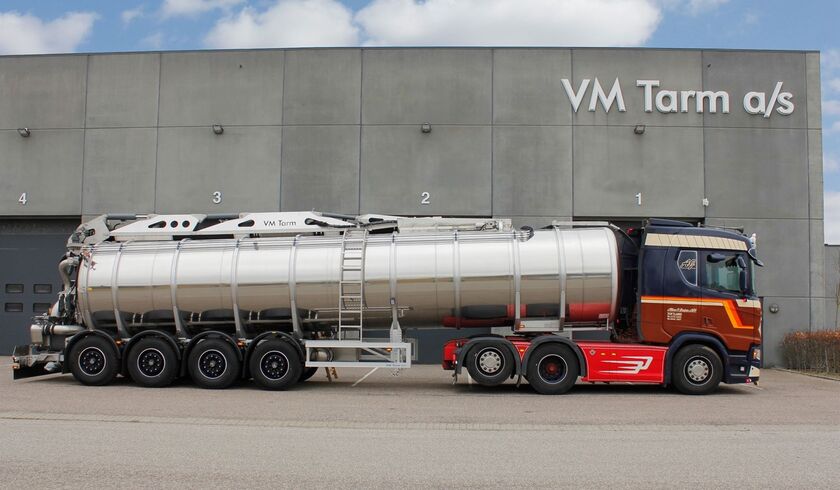

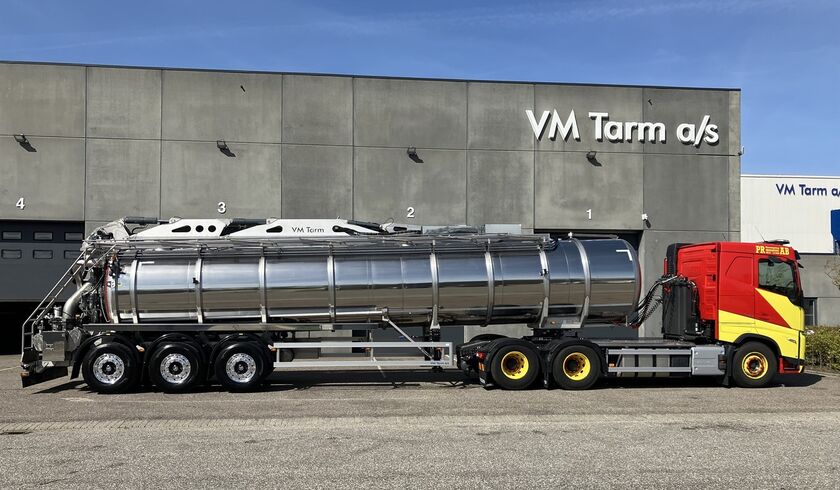

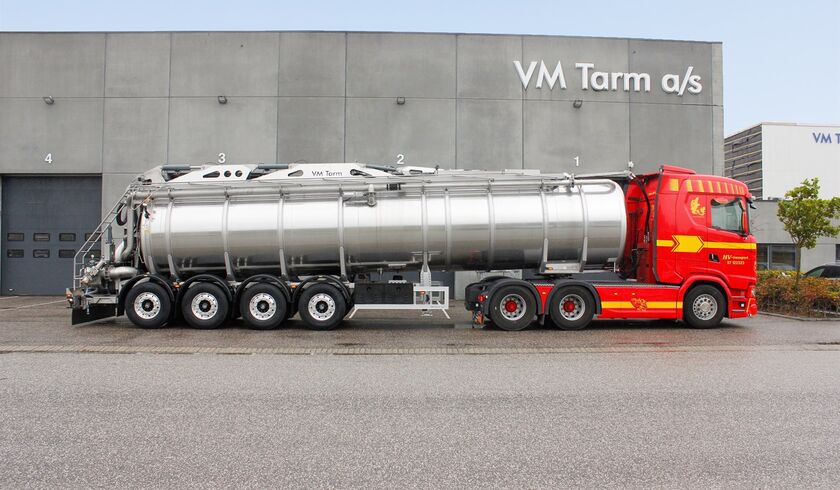

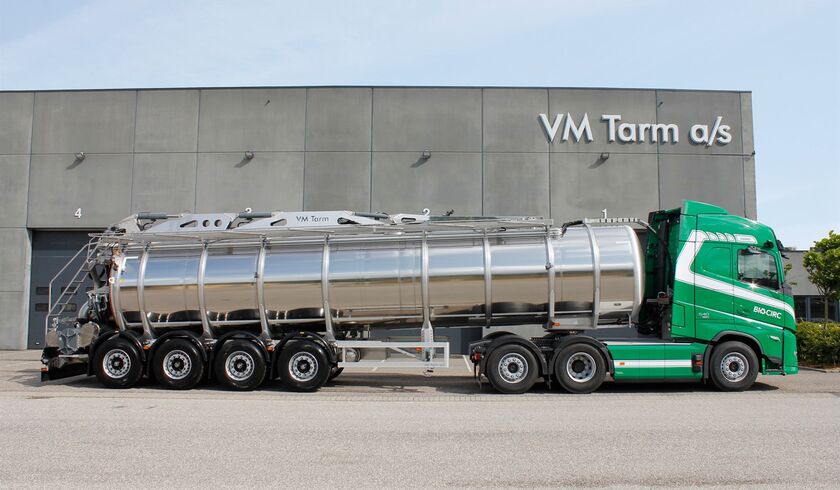

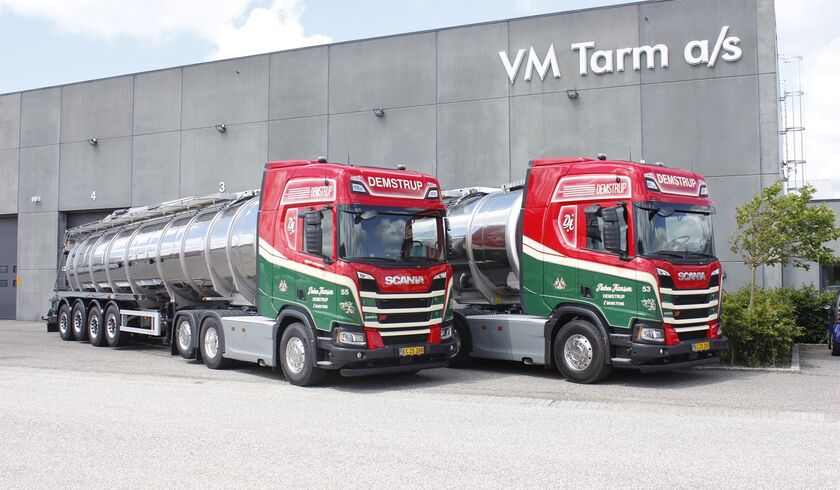

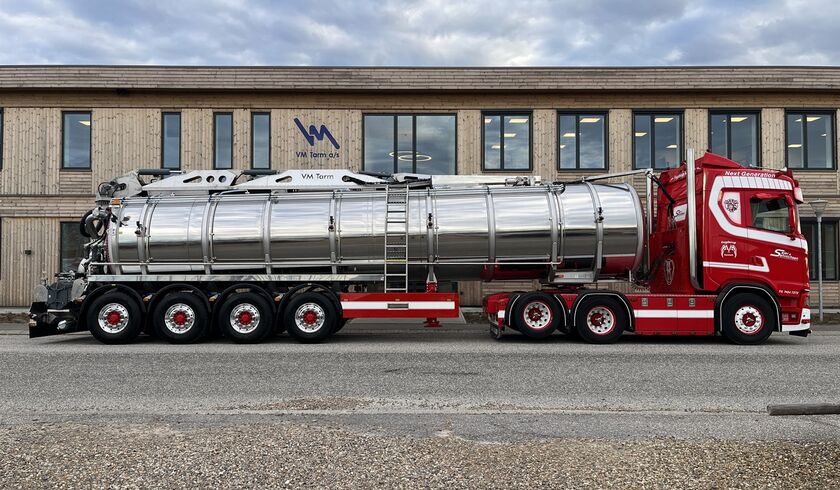

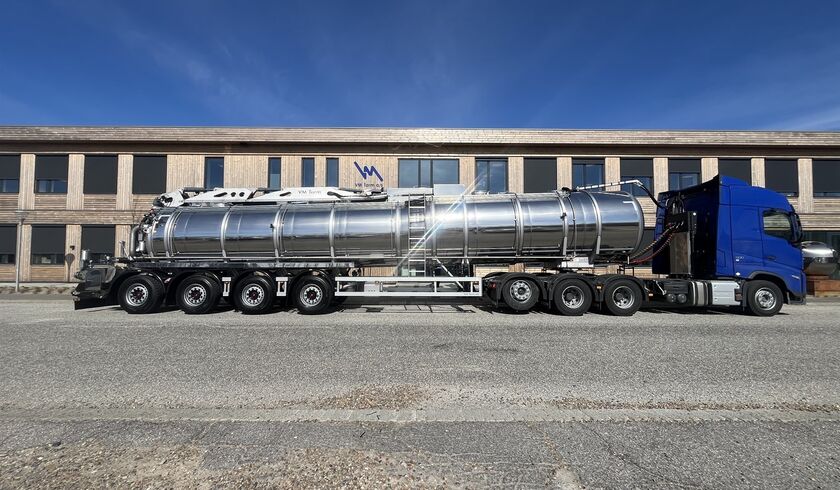

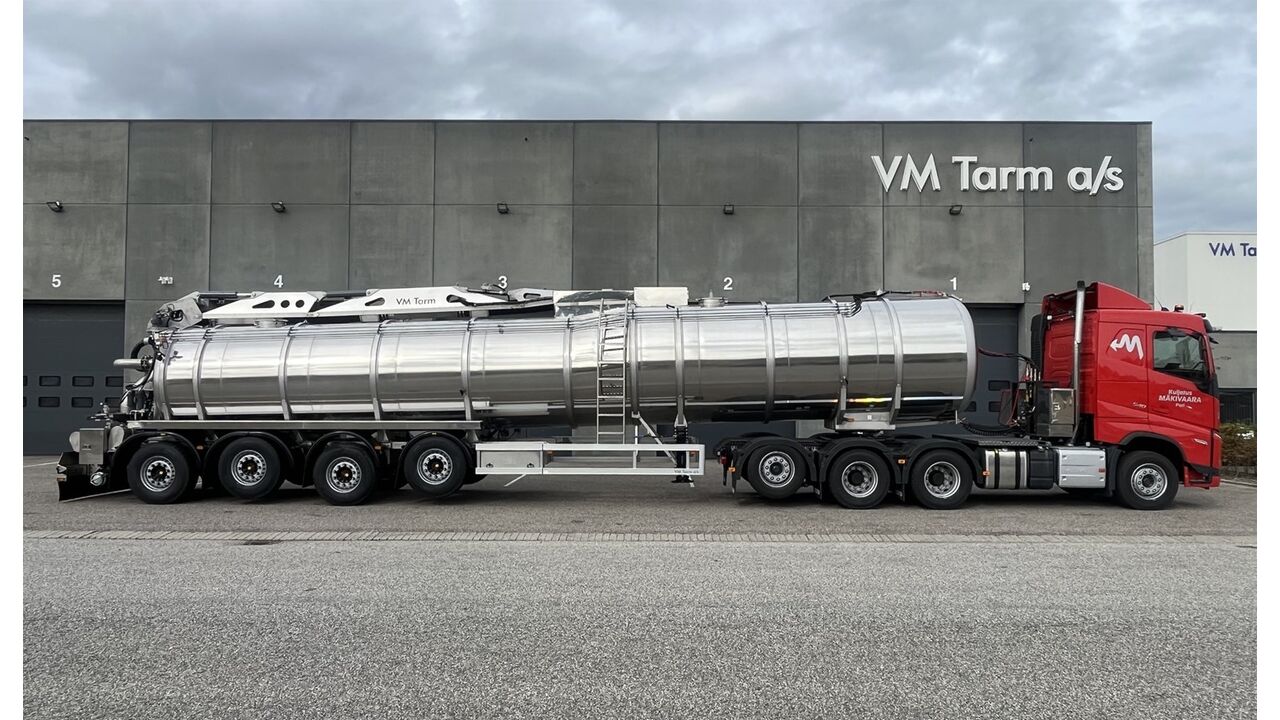

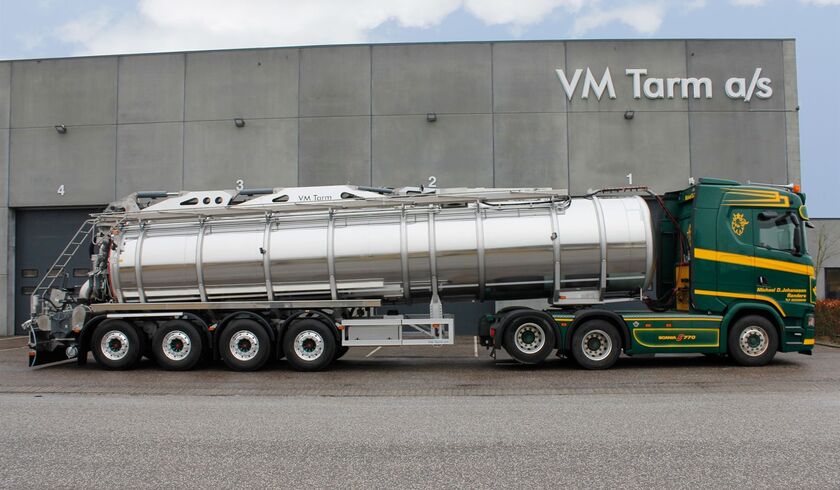

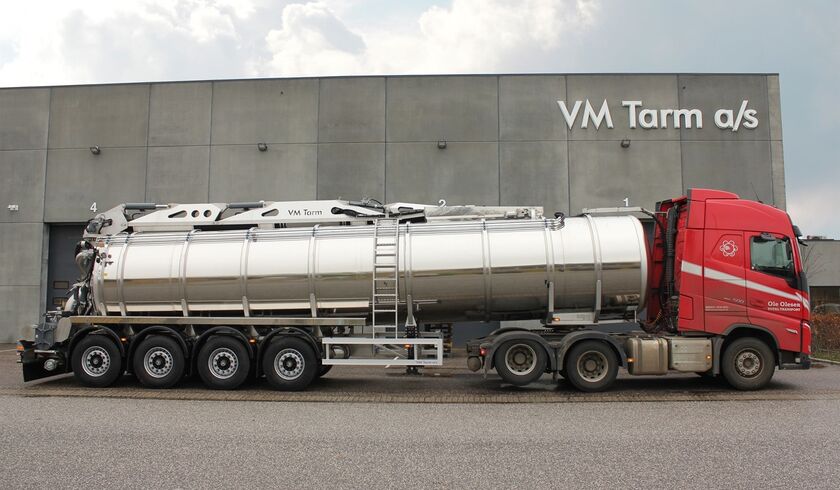

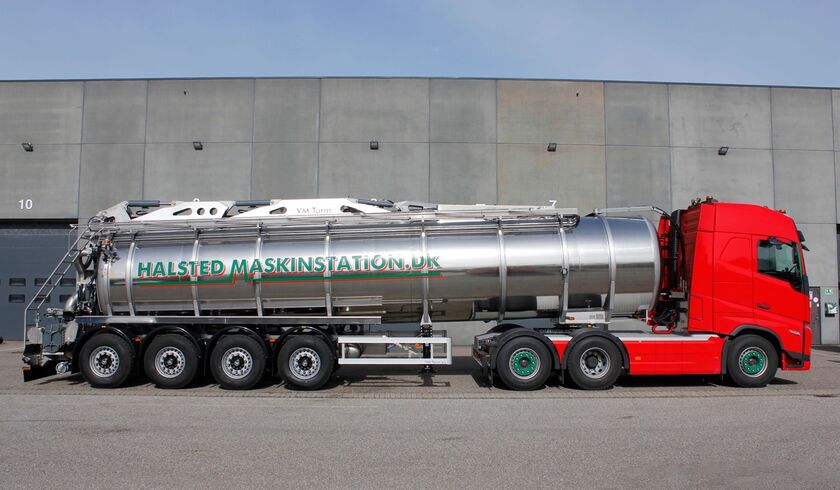

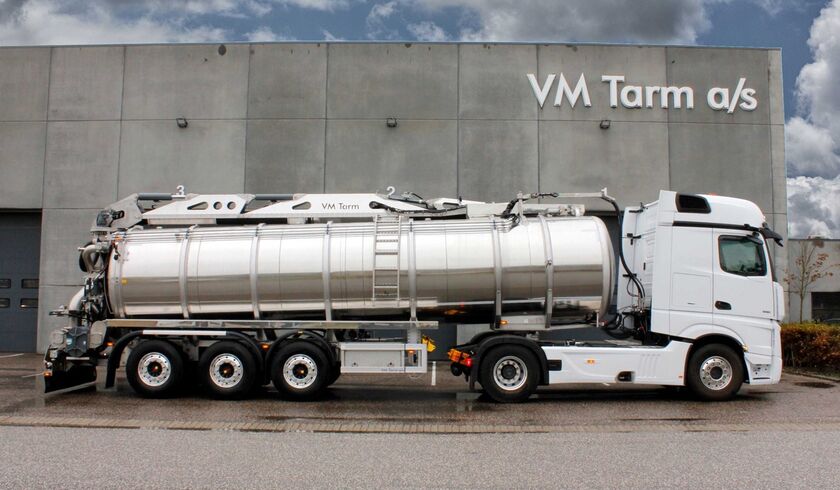

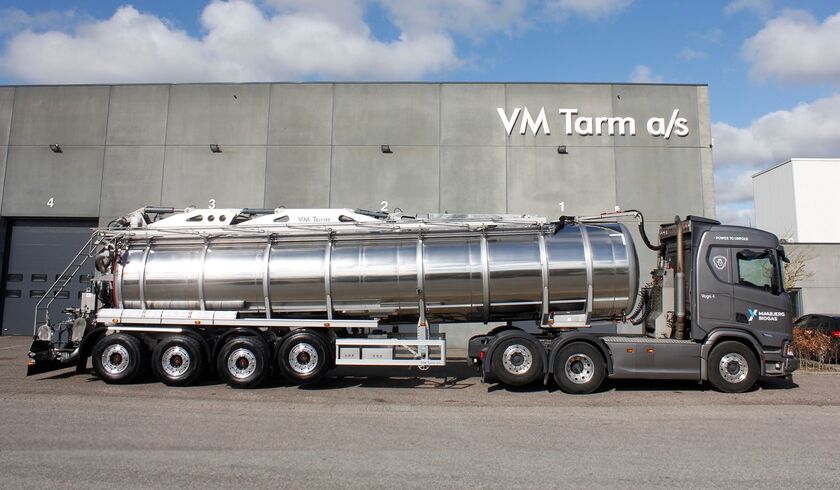

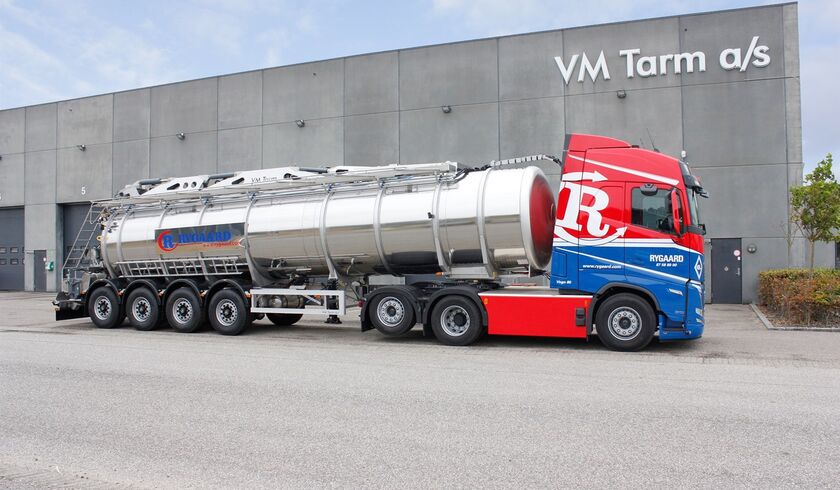

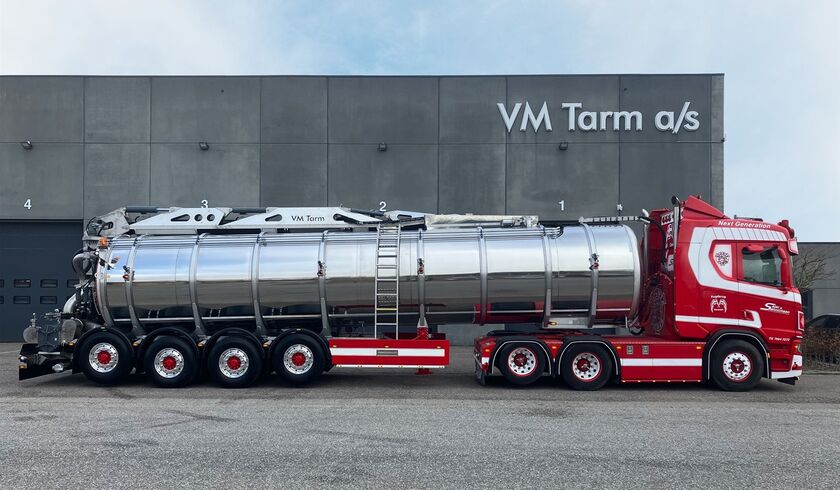

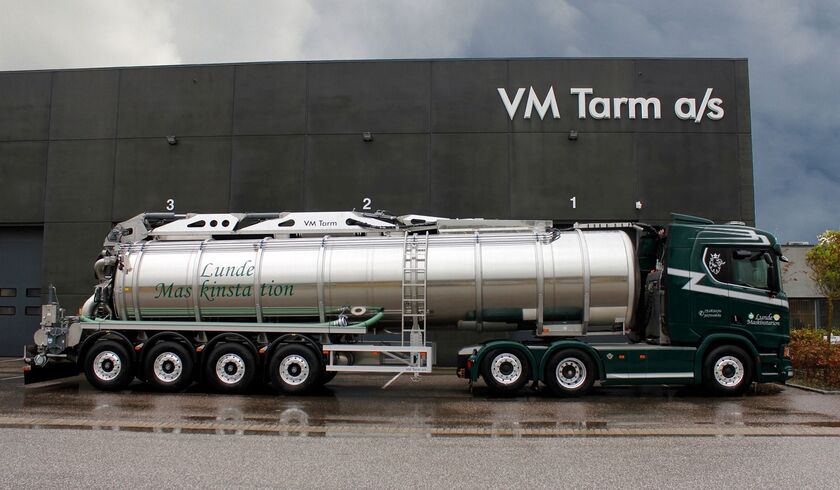

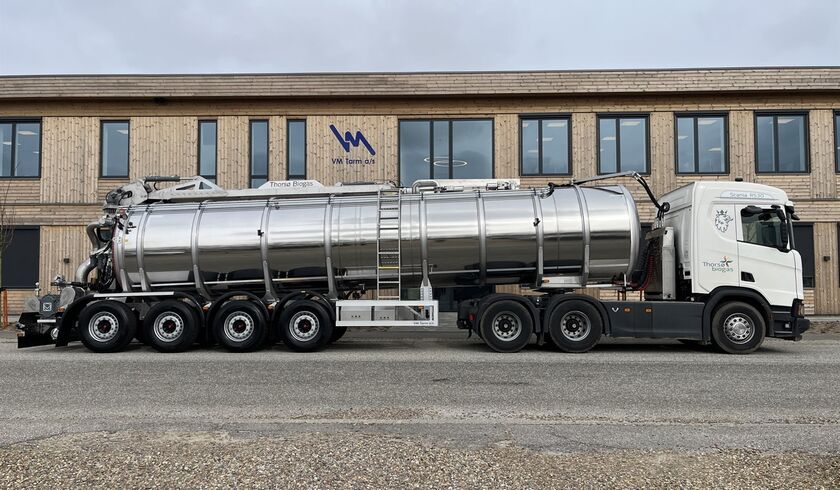

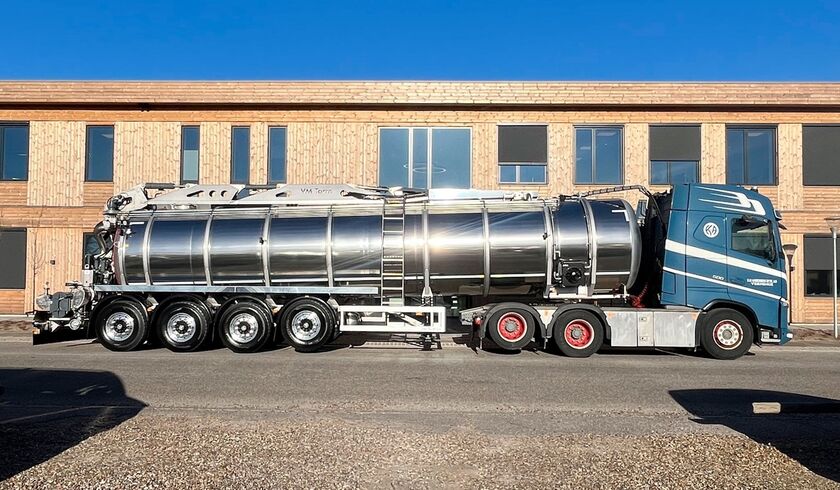

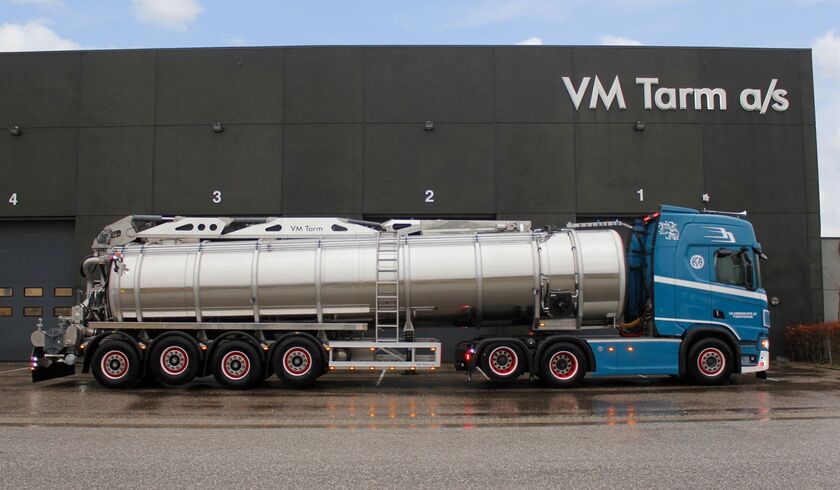

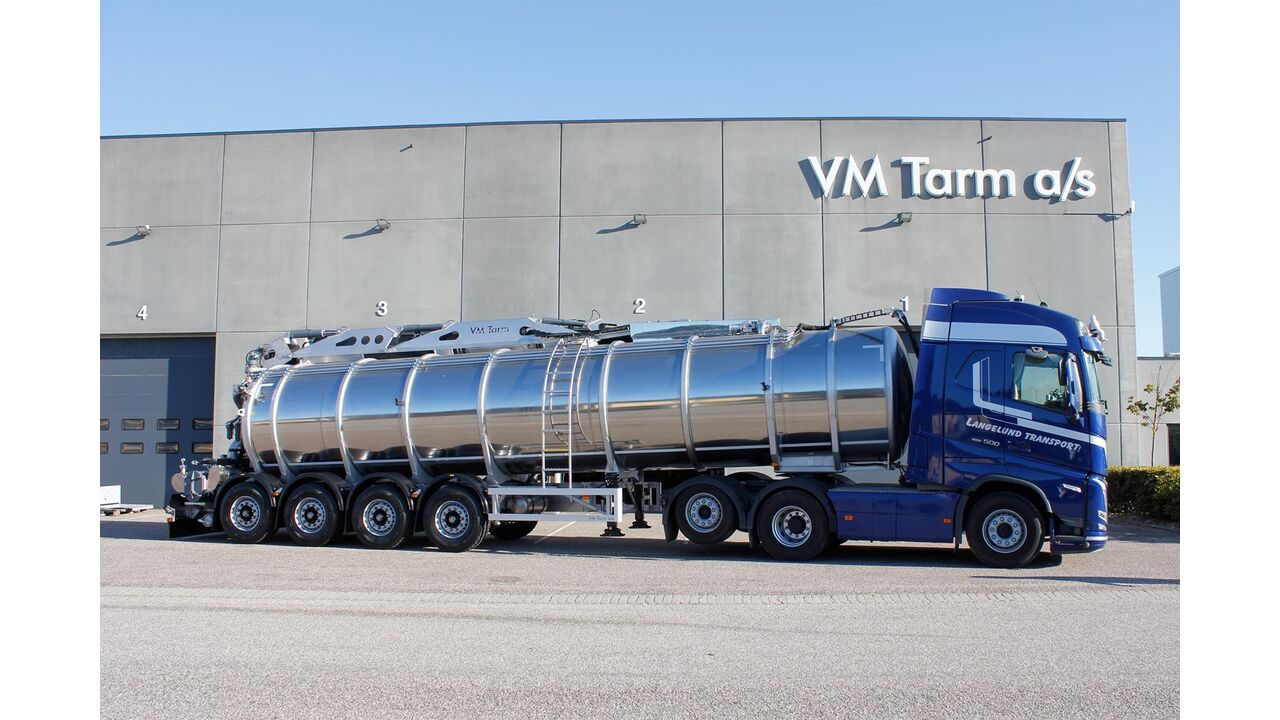

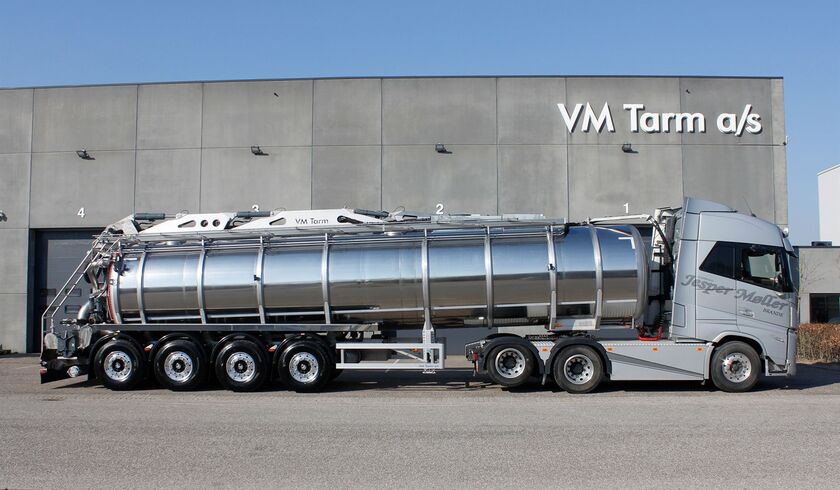

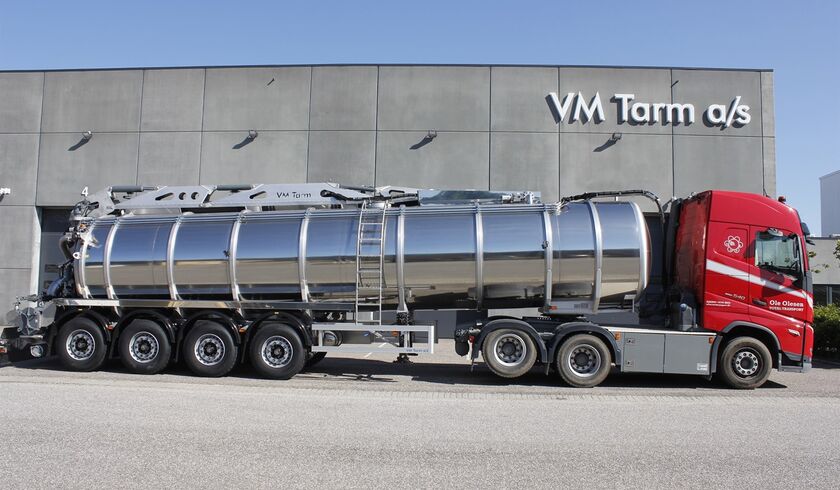

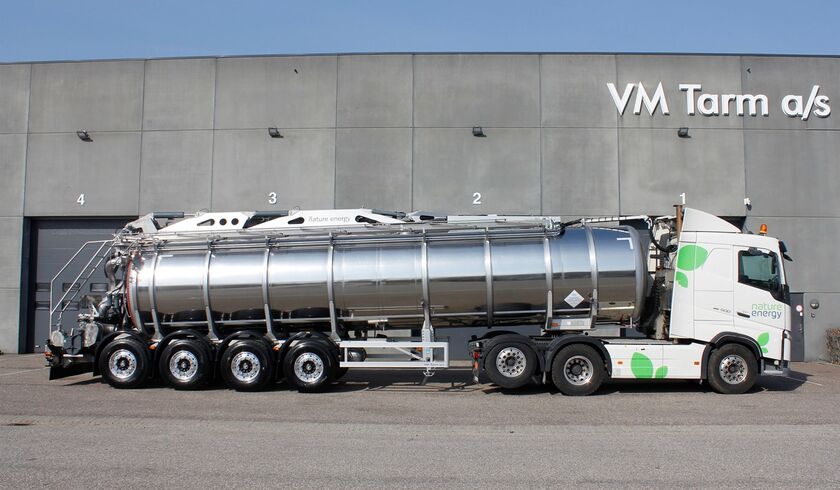

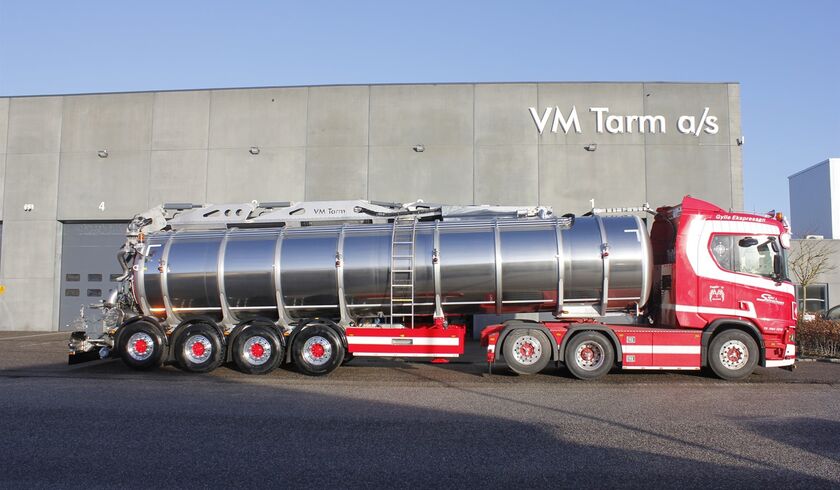

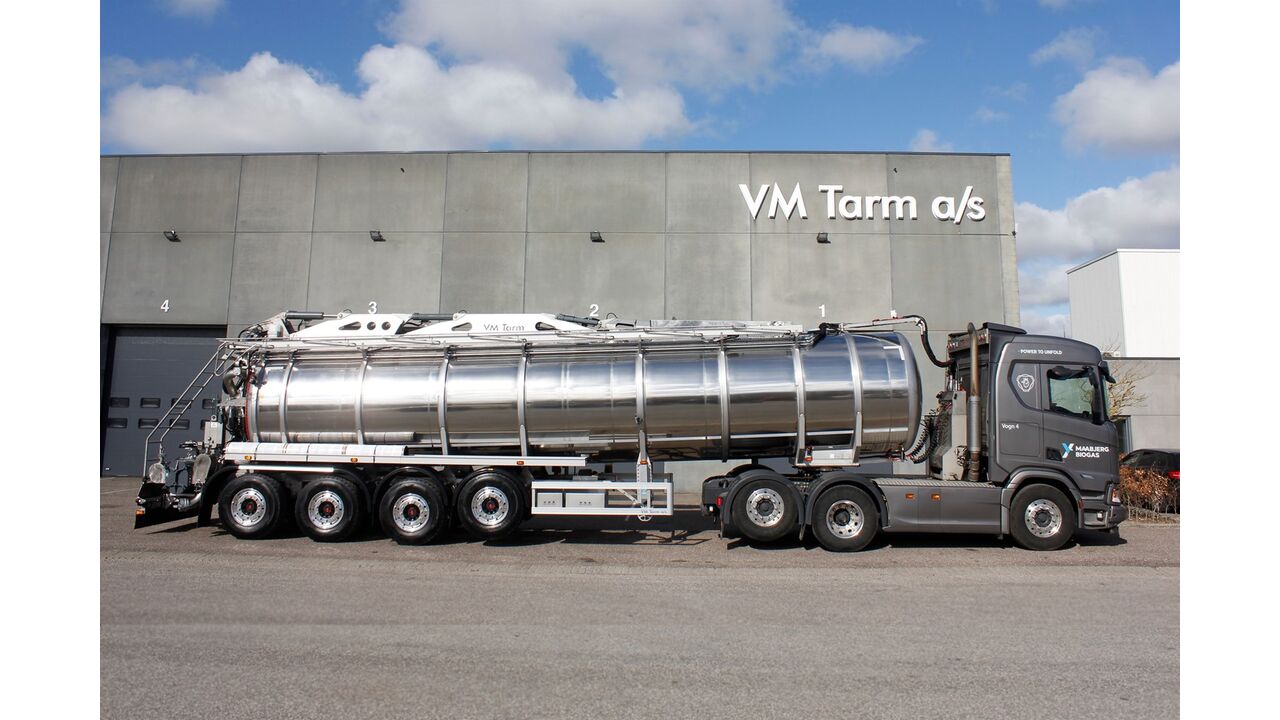

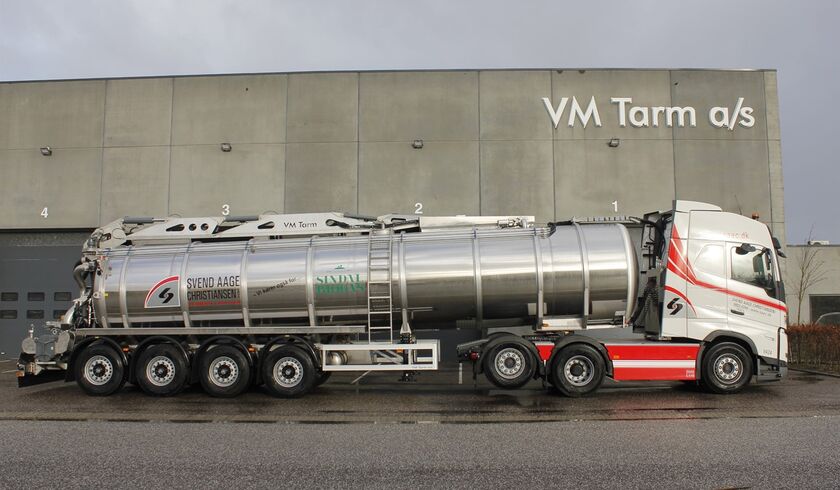

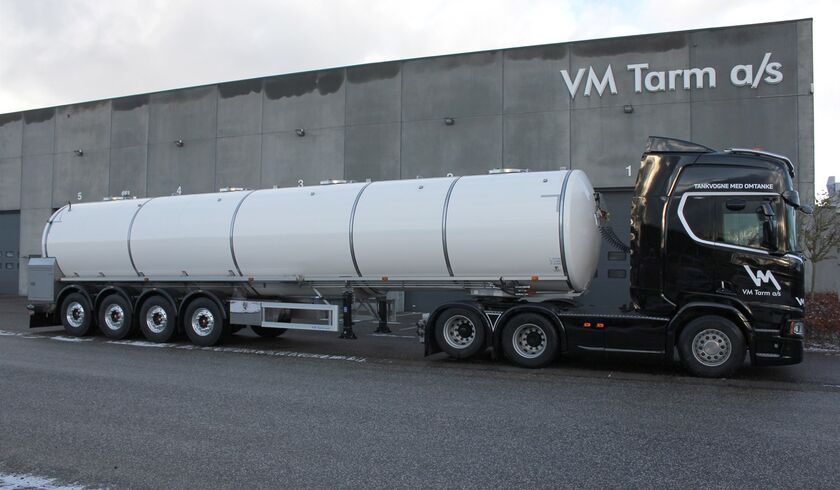

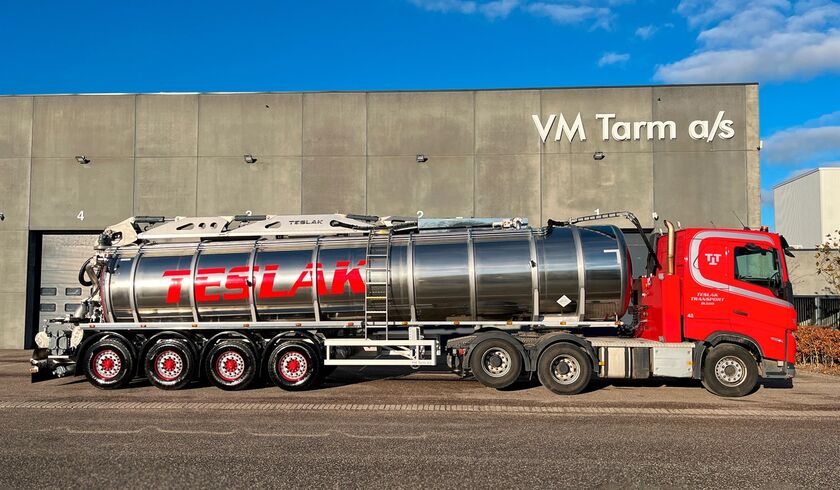

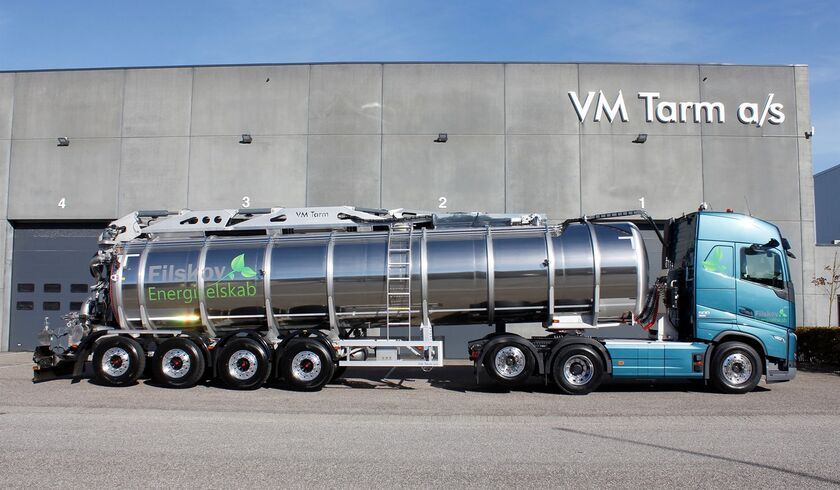

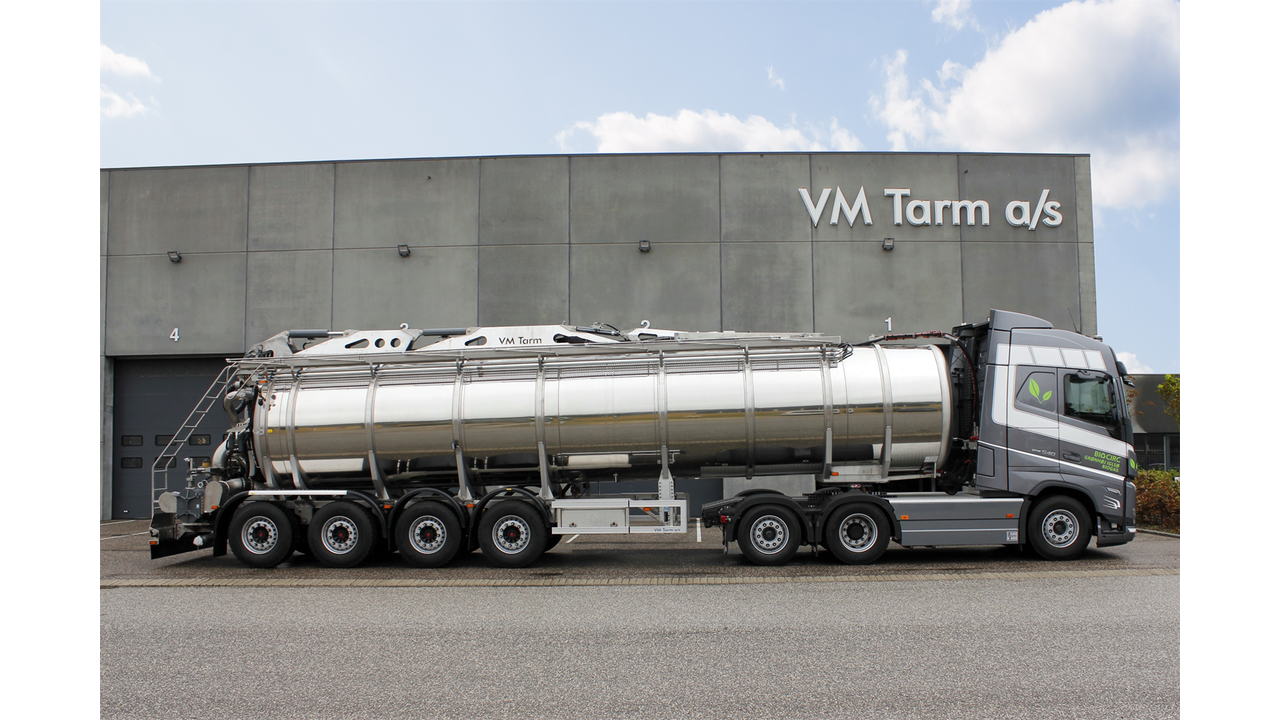

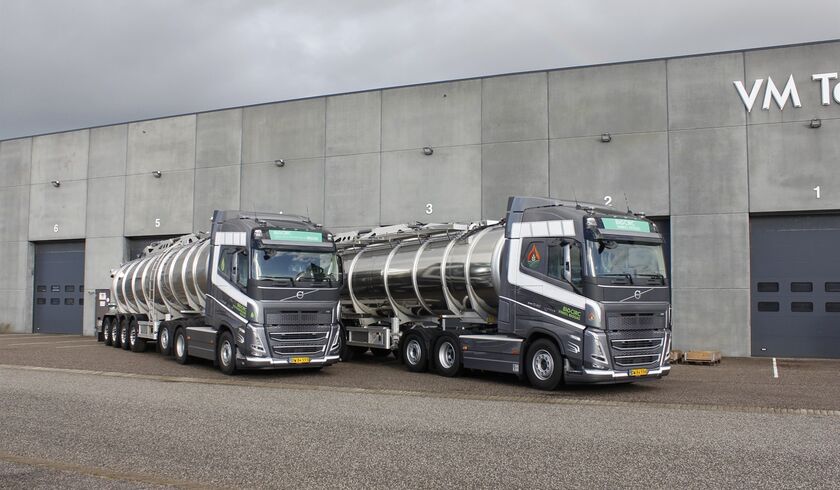

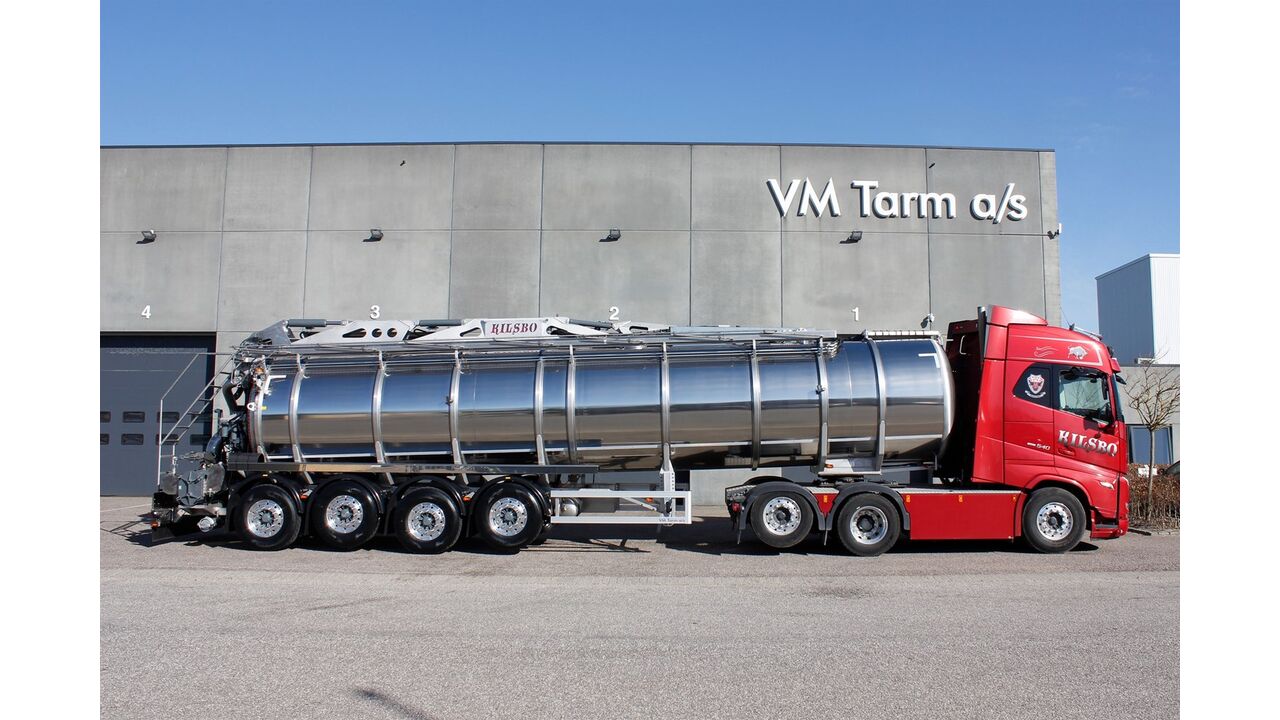

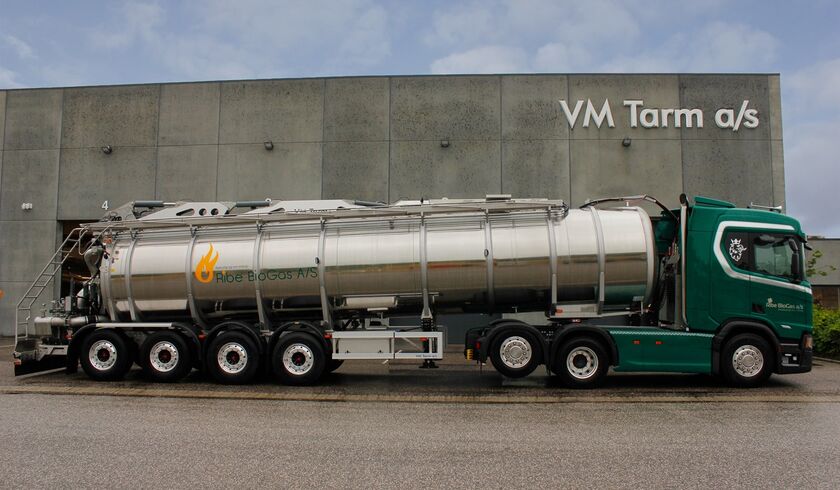

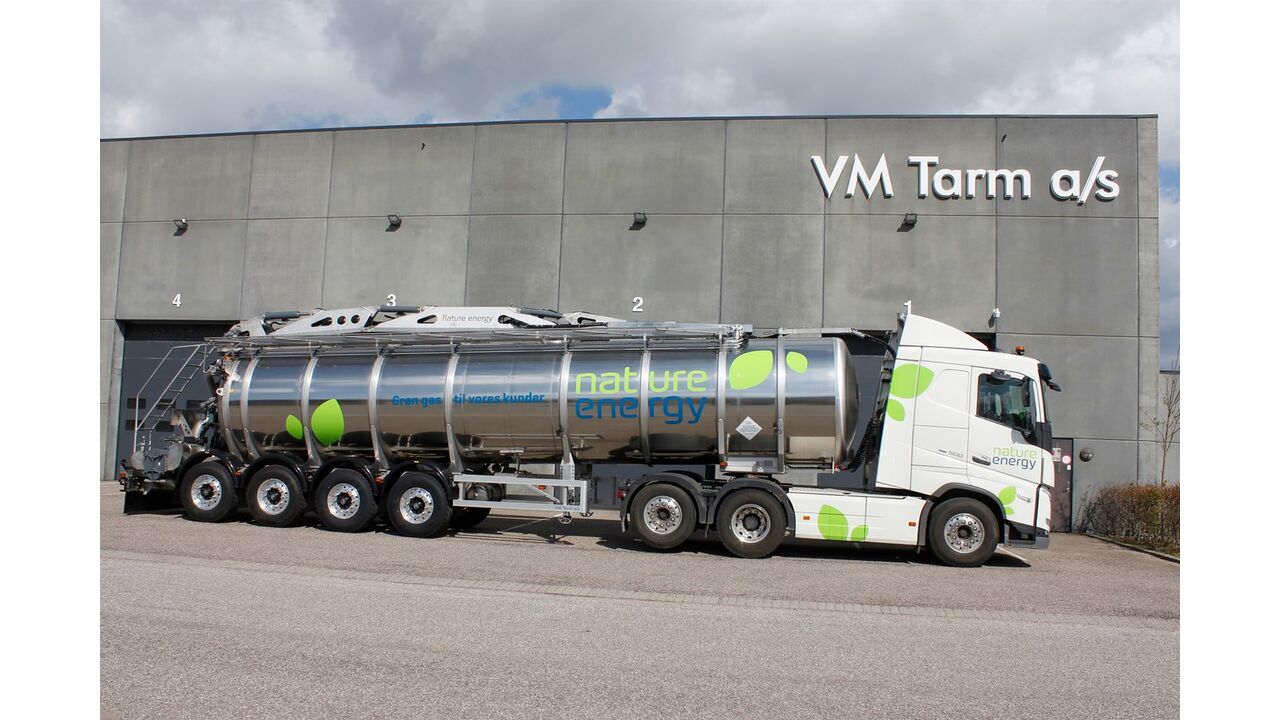

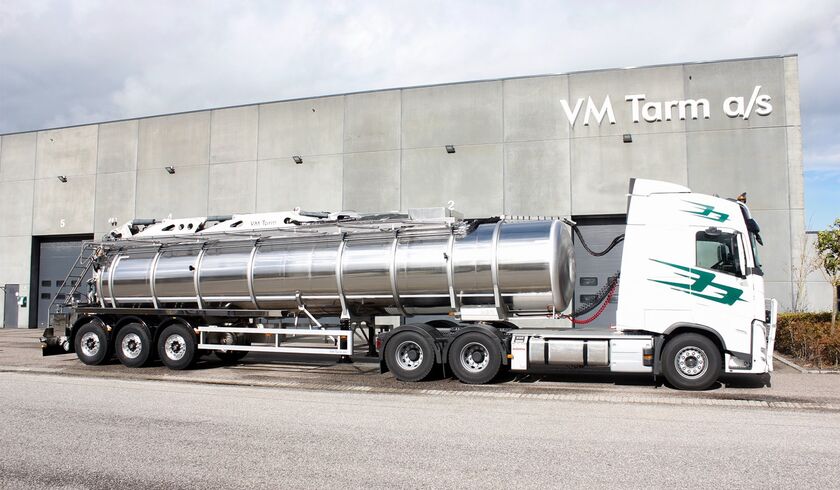

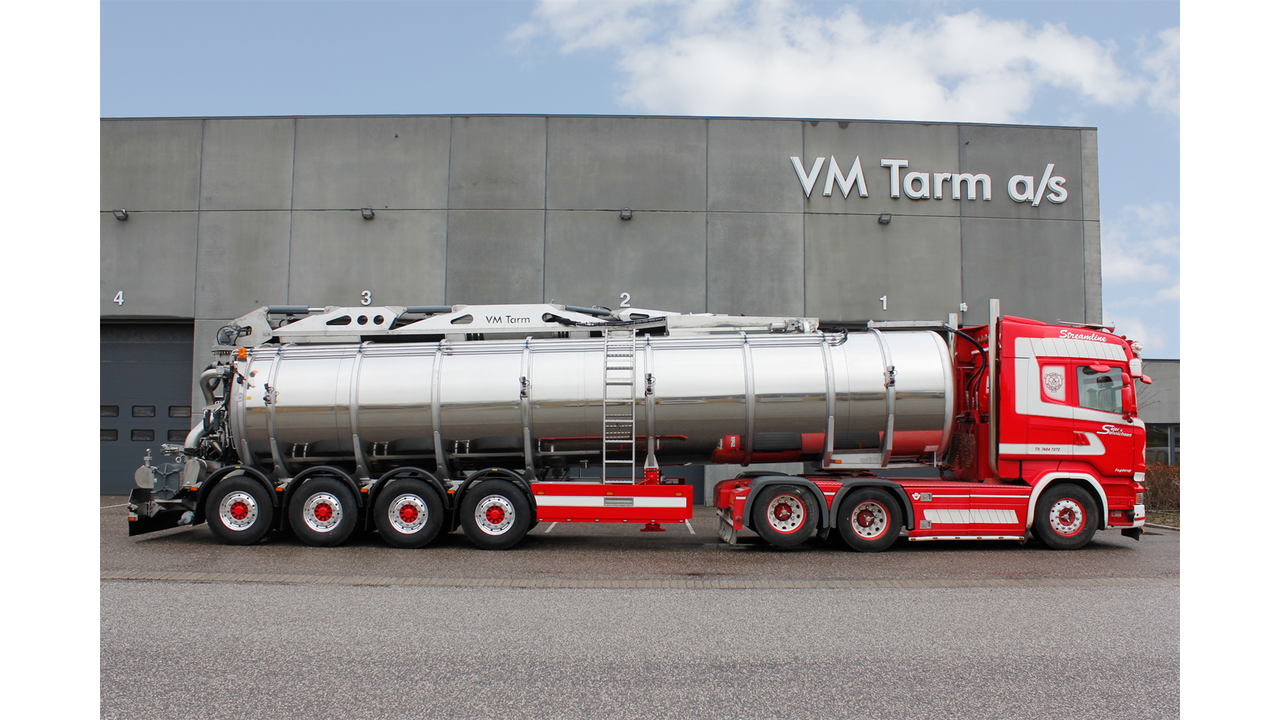

Latest deliveries of both StarLine and TailorLine slurry trailers

18851---18857-hardanger-biogass-33-000-liter-og-27-500-liter-gylletanke-semitrailere.jpg
18861---18862-agropecuaria-llado-sl-2-stk--gylletrailere.jfif

The advantage is typically greatest for short transport distances and many transport cycles per day.

For example, for short distances of around 5–10 km, the time savings from loading and emptying can have a significant impact on the daily capacity. For longer distances, the economy should be assessed based on the specific task, as driving time, tank volume, and payload become more significant.

A liquid manure trailer with the crane and suction arm allows the driver to handle the unloading more independently and reduces the need for manual hose handling.

With a VM Tarm liquid manure trailer, the unloading time can be reduced from about 12–20 minutes to 2–3 minutes, depending on the tank size, pump, medium, and conditions at the unloading site.

Shorter distances such as 5-10 km provide an extra good effect for a StarLine liquid manure trailer. For medium distances, the economy should be calculated individually, while larger tank volumes may become more important for very long transport distances around 60-80 km.

Shorter handling time can make several transport cycles possible during a working day.

A liquid manure trailer is a tank trailer designed for professional transport of liquid manure and other liquid biomasses. It is used, among other things, between agriculture, fields, and biogas plants, where large quantities need to be moved efficiently and reliably.

VM Tarm builds liquid manure trailers with a focus on high payload, efficient loading and emptying, operational reliability, and long service life.

The optimal size of a liquid manure trailer depends not only on the tank's volume. The overall transport cycle is significantly important:



Loading → transport → unloading → next trip.



A larger liquid manure tank on a trailer is therefore not necessarily the most efficient solution if it simultaneously leads to longer handling time, higher empty weight, or poorer utilisation of the overall transport cycle.

The unloading time for a VM Tarm liquid manure trailer depends among other things on the type of pump, media, suction conditions, and the conditions at the unloading site.



Examples of unloading time with a liquid manure trailer from VM Tarm StarLine:

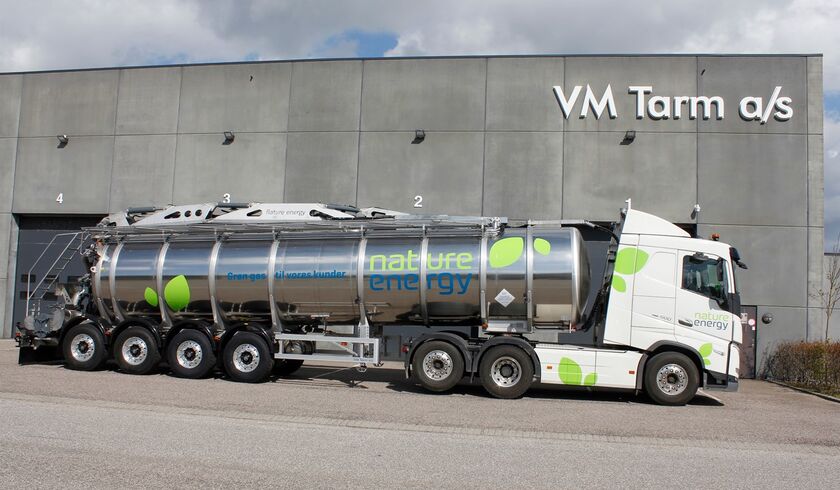

Under normal conditions, a VM Tarm liquid manure trailer with a capacity of 38 m³ can be unloaded in approximately 3 minutes.

Under normal conditions, a VM Tarm liquid manure trailer with a capacity of 36 m³ can be unloaded in approximately 2.5 minutes.

Under normal conditions, a VM Tarm liquid manure trailer with a capacity of 28 m³ can be unloaded in approximately 2 minutes.

StarLine liquid manure trailer can be configured with a centrifugal pump and a rotary pump, and the system can switch between the pumps via hydraulic valves. Additionally, there may be an option for connection of external pumping solutions.



It has a total capacity on the rotary pump of 6,000-9,000 l/min

It has a total capacity on the centrifugal pump of up to approximately 16,000 l/min

No, a larger tank on a liquid manure trailer is not always more efficient. Tank volume is only one part of the overall transport economy.



Loading time, emptying time, transport distance, tare weight, and the number of possible transports per workday also matter. For short distances, a quick transport cycle can in some cases provide greater daily capacity than a larger trailer with longer handling time.

Yes. StarLine can be used for the transport of both liquid manure and degassed biomass and can, for example, be part of fixed transport cycles between agriculture and biogas plants.

A StarLine liquid manure trailer with a capacity of 39 m3 weighs 10,750 kg

A StarLine liquid manure trailer with a capacity of 36 m3 weighs approximately 9,600 kg

A StarLine liquid manure trailer with a capacity of 28 m3 weighs approximately 8,200 kg

VM Tarm offers service, technical support and spare parts for StarLine.

VM Tarm has its own service center in Tarm, West Jutland, offers on-site service and collaborates with service partners in the Nordics. Additionally, German-speaking support is offered for the German market.
